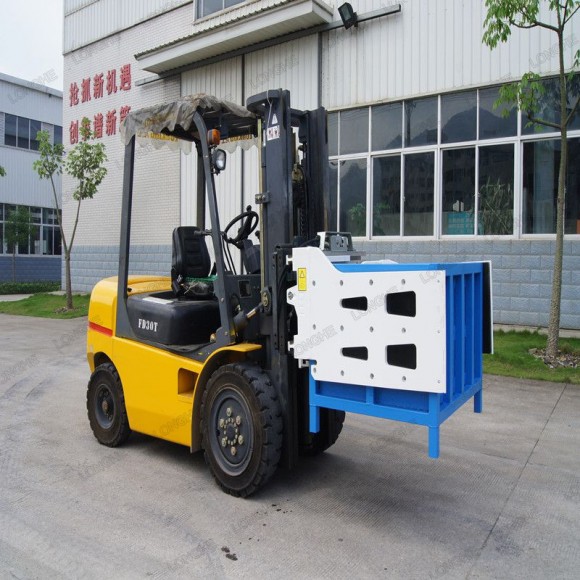

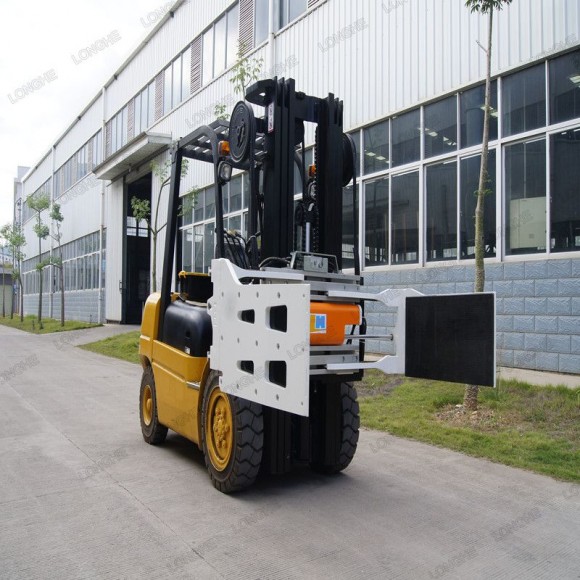

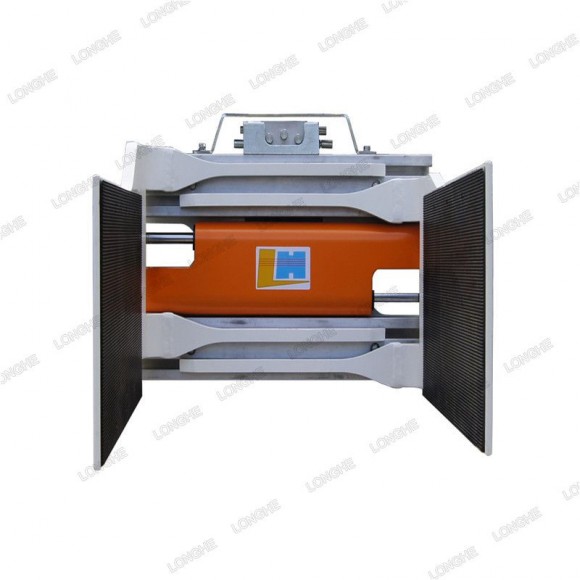

Многоцелевой захват GBC19D-B018 для вилочного погрузчика
Многоцелевой захват GBC19D-B018 для вилочного погрузчика
Обзор
Характеристики
Отзывы0
Multi-purpose clamp can handle unitised or box-shaped products palletless with high efficiency and safety. Design of lateral sliding arm for smooth clamping and sideshifting function. Large contact pad can reduce the possibilities of distortion or damaging to loads while handling. It is widely used in tobacco and white goods industries, to handle loads such as tobacco products carton, refrigerator, LED, and etc.
Functions & Applications
Multi-purpose clamp can efficiently and economically handle any type of paper carton, wooden carton, metal carton and baled products without workplatform including tobacco, newsprint, chemical fiber, workshop and port, etc.
Features
? Proven durable T-beam arm and aluminum alloy frame construction
? Regenerative hydraulic valving for optimal arm speed
? Superior arm-slide bearing for extended service life
? Vulcanized rubber pads design, economically
? Excellent driver visibility
Бренд
LONGHE
Грузоподъемность/ц.т (кг/мм)
1900/500
Класс крепления
II

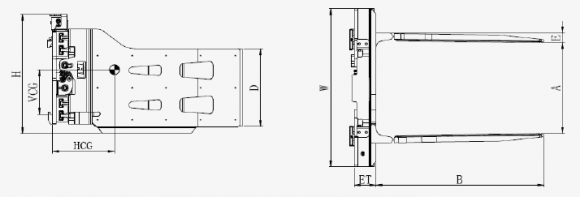

Вертикальный центр тяжести VCG(мм)
225
Толщина основания ET(мм)
128
Горизонтальный центр тяжести HCG(мм)
189
Особенности
Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Note 1.Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits 3. Opening range refers to distance between arm tips 4. Dimension E refers to operation space required for arm 5. Without sideshifting can be available * Further technical details are available upon request
Раскрытие A(мм)
420-1570
Arm Thickness E(mm)
50
Arm Length L(mm)
615
Pad Height (mm)
610
Вес
328 кг
Тип
Multi-Purpose Clamp
