Поворотный многоцелевой захват GBX16D-B001 для вилочного погрузчика
Поворотный многоцелевой захват GBX16D-B001 для вилочного погрузчика
Обзор
Характеристики
Отзывы0
Multi-purpose clamp can handle and rotate unitised or box-shaped products palletless with high efficiency and safety. Design of lateral sliding arm for smooth clamping and sideshifting function and 360° rotation. . Large contact pad can reduce the possibilities of distortion or damaging to load while handling. It is widely used in tobacco and logistic warehouse.
Functions & Applications
Multi-purpose clamp can efficiently and economically handle any type of paper carton, wooden carton, metal carton and baled products without work platform including tobacco, newsprint, chemical fiber, workshop and port, etc.
Features
? Proven durable T-beam arm and aluminum alloy frame construction
? Regenerative hydraulic valving for optimal arm speed
? Superior arm-slide bearing for extended service life
? Vulcanized rubber pads design, economically
? Excellent driver visibility
Бренд
LONGHE
Грузоподъемность/ц.т (кг/мм)
1900/500
Класс крепления
II

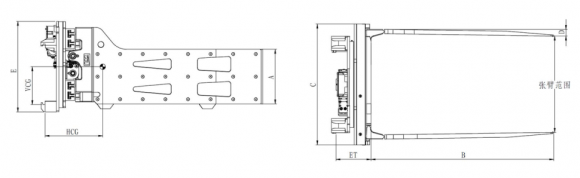

Вертикальный центр тяжести VCG(мм)
335
Толщина основания ET(мм)
277
Горизонтальный центр тяжести HCG(мм)
345
Особенности
Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Rotating Speed: 5.2r/min@60L/min Rotating Torque:9000N?m@160bar Note 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits 3. Opening range refers to distance between arm tips 4. Dimension E refers to operation space required for arm * Further technical details are available upon request
Раскрытие A(мм)
480-1770
Arm Thickness E(mm)
75
Arm Length L(mm)
1015
Arm Height G(mm)
600
Frame Width E(mm)
1040
MTG.Angle
0°
Тип
Multi-Purpose Clamp
Вес
650 кг
