Позиционер вил CJC23D-B005 для вилочного погрузчика
- Обзор
- Характеристики
- Отзывы0

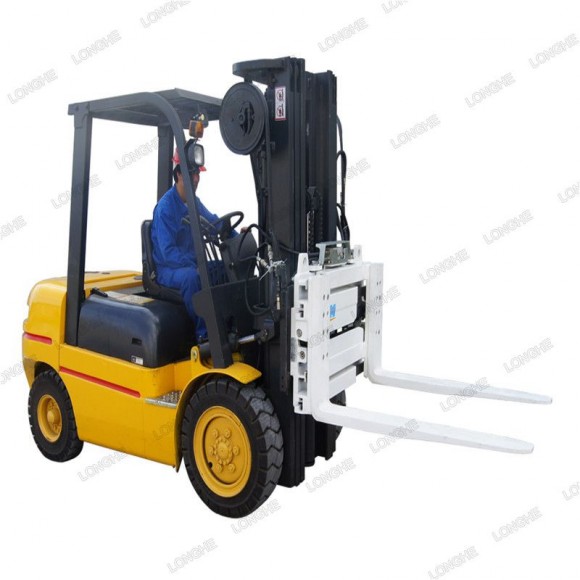

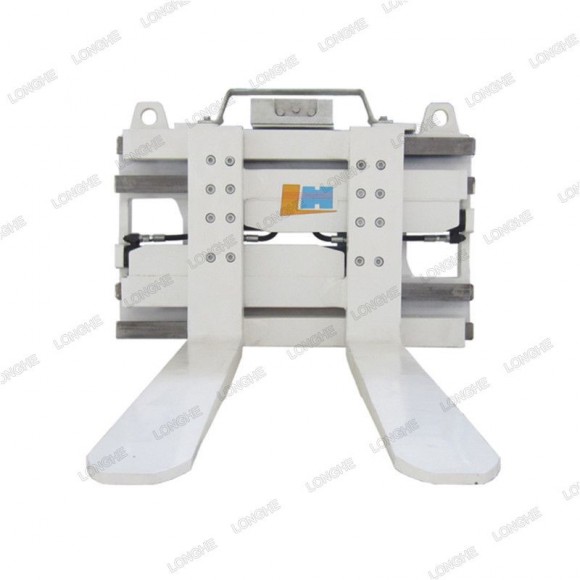

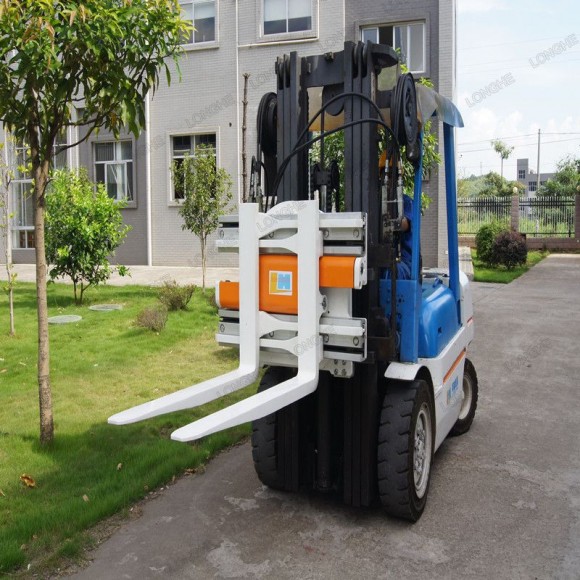

Fork clamp is generally designed to handle palletised goods as well as for clamping purpose. Focusing and reflecting the functions of normal forklift application, fork positioning and clamping in one of which the forklift, positioner and clamp equipped. And applying in compicated conditions or kinds load handling at site. It also can be turned into special clamp by applying different versions of slip-on arms that suits for related operations in condition.
Functions & Applications of Fork Clamp Wholesaler
Fork clamp is generally used in handling of pallets and clamping of goods.Different clamp arms can be installed on the forks to realize special functions.
Features of Fork Clamp Wholesaler
? Superior arm-slide bearing for extended service life
? Optimized construction for excellent driver visibility and secure operation.
? T-beam sliding pair, long service life.
Longhe Attachment is a leading fork clamp wholesaler in China, focusing on offering fork clamp in various specification to meet different requirement. If you're looking for fork clamp for your production line, please don't hesitate to contact us to get free quotation.
Бренд | LONGHE |
Грузоподъемность/ц.т (кг/мм) | 2300/600 |
Класс крепления | II |
Вертикальный центр тяжести VCG(мм) | 161 |
Толщина основания ET(мм) | 216 |
Горизонтальный центр тяжести HCG(мм) | 247 |
Особенности | Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar *With the continuous technology innovation, the parameters of our fork clamp are subject to change, welcome to contact us to get more detailed information of fork clamp. Note 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits 3. Opening range refers to distance between arm tips 4. Dimension E refers to operation space required for arm 5. Without sideshifting can be available * Further technical details are available upon request |
Раскрытие A(мм) | 230-1580 |
Overall Height H(mm) | 821 |
Fork Dimension ExSxB(mm) | 150*50*1220 |
Form Width W(mm) | 1212 |
Вес | 500 кг |
Тип | Fork Clamp |
