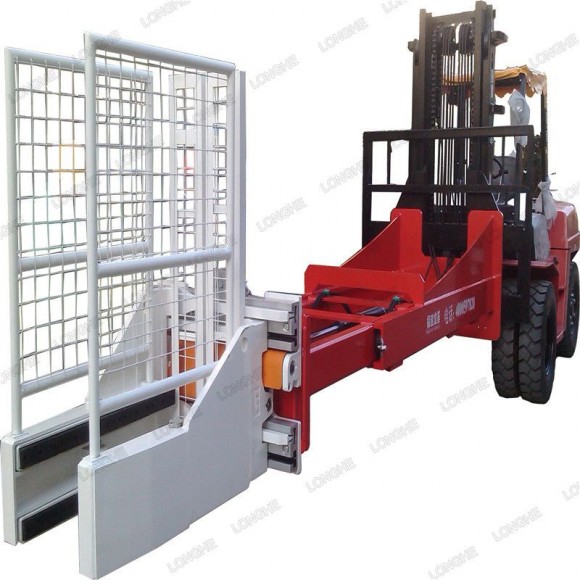

Захват для блоков ZKC27D-C008 для вилочного погрузчика
Захват для блоков ZKC27D-C008 для вилочного погрузчика
+ 3 фото
Обзор
Характеристики
Отзывы0

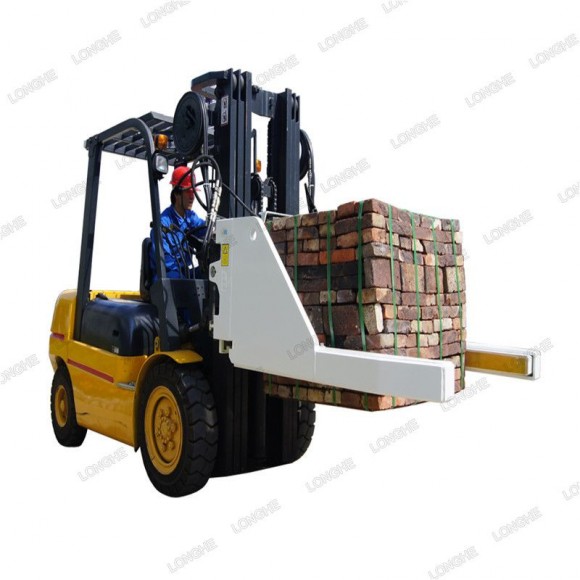

Block clamp can efficiently handle and stack nearly any type of solid, regular cubic goods under normal temperature without pallet. Lateral sliding arm design for smooth clamping and sideshifting function. Widely used in construction material, metallurgy industries for handling concrete blocks, cement bricks, carbon cubes, etc. The high structural strength and durability can ensure safe, productive application and long service life.
Functions &Applications
Block clamp can efficiently handle and stack nearly any type of solid, regular cubic goods under normal temperature without pallet. Widely used in construction material, metal- lurgy industries for handling concrete blocks, cement bricks, carbon cubes, etc. The high structural strength and durability can ensure safe, productive application and long service life.
Features
? Proven durable T-beam arm and aluminum alloy frame construction
? Superior arm-slide bearing for extended service life Regenerative hydraulic valving for optimal arm speed
? Durable contact pads, reliable clamping
? Excellent driver visibility
Options
? Custom opening ranges
? Custom pad size
? Various mounting classes available
? Load backrests
Бренд
LONGHE
Грузоподъемность/ц.т (кг/мм)
2700/500
Класс крепления
III
Вертикальный центр тяжести VCG(мм)
187
Толщина основания ET(мм)
148
Горизонтальный центр тяжести HCG(мм)
380
Особенности
Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 - 180 Bar Note 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits required 3. With sideshifting, arm height at 128mm is for single-hand clamp in PU material, arm height at 242mm is for double-hand, arm height at 117mm is for single-hand clamp in PU material 4. Dimension E refers to operation space required for arm, not arm's thickness 5. Also available without sideshifting 6. Telescopic boom is available upon request as pay option * Further technical details are available upon request

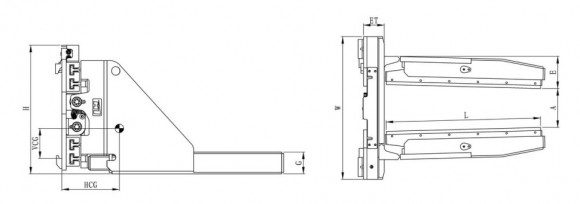

Раскрытие A(мм)
350-1680
Arm Thickness E(mm)
200
Arm Length L(mm)
1000
Arm Height G(mm)
117
Frame Width E(mm)
1016
Frame Height A(mm)
750
Тип
Block Clamp
Вес
620 кг
