NIPPLE,GREASE Doosan S6710041

NIPPLE,GREASE, S6710041 для вилочного погрузчика Doosan

Полное описание

Модель техники	D50S2/D60S2/D70S2, BR10J/BR13J/BR14J/BR15J/BR18J, G35S/G40S/G45S, D35S/D40S/D45S, D50S/D60S/D70S, D35S2/D40S2/D45S2, D50C2, D40SC2/D45SC2/D50SC2, G35S2/G40S2/G45S2, G50C2, G40SC2/G45SC2/G50SC2, D100/D120, D150, BR10S/BR13S/BR14S/BR15S/BR18S, BR14JW/BR16JW
Номер по каталогу	S6710041
Бренд	DOOSAN
Система Doosan	Engine 6 Ton DIESEL, BR 1 Ton Seat REACH, Engine 4 Ton GAS, Engine 4 Ton DIESEL, Engine 10 Ton DIESEL, Engine 15 Ton DIESEL, BR 1 Ton Standing REACH, BR 1 Ton Seat REACH WIDE
Раздел Doosan	CHASSIS, FRONT END

Все характеристики

По запросу

Артикул: ds000420-S6710041

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: S6710041

Название: NIPPLE,GREASE

Модель техники: D50S2/D60S2/D70S2, D50S/D60S/D70S, D100/D120, D150, G35S/G40S/G45S, D35S2/D40S2/D45S2, D50C2, D40SC2/D45SC2/D50SC2, D35S/D40S/D45S, BR10J/BR13J/BR14J/BR15J/BR18J, BR10S/BR13S/BR14S/BR15S/BR18S, BR14JW/BR16JW, G35S2/G40S2/G45S2, G50C2, G40SC2/G45SC2/G50SC2

Тип техники: Вилочный погрузчик с ДВС, Складская техника / Engine Powered Trucks, Warehouse Equipment

Система Doosan: Engine 6 Ton DIESEL, Engine 10 Ton DIESEL, Engine 15 Ton DIESEL, Engine 4 Ton GAS, Engine 4 Ton DIESEL, BR 1 Ton Seat REACH, BR 1 Ton Standing REACH, BR 1 Ton Seat REACH WIDE

Раздел Doosan: CHASSIS, FRONT END

Узел Doosan: Chassis, Mast, Carriage, Attachment

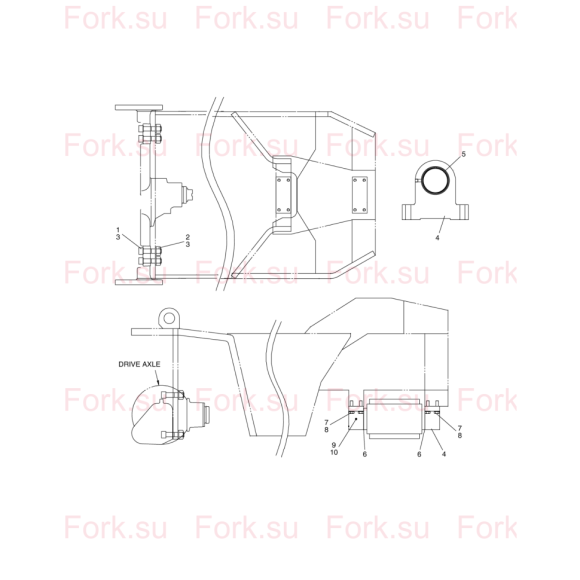

Основная схема: MOUNTING GP-D/A & S/A - (OCD TYPE BRAKE). Номер на картинке: 9.

Применяемость: найдено 49 применений.

Применяемость по каталогу Doosan

Модель	Серии	Тип	Система	Раздел	Узел Doosan	Схема	Позиция	Кол-во	Примечание
D50S2/D60S2/D70S2	EM0BH, EM0EH \| A130012	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	CHASSIS	Chassis	MOUNTING GP-D/A & S/A - (OCD TYPE BRAKE)	9	2
D50S2/D60S2/D70S2	EM0BH, EM0EH \| A130012	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	CHASSIS	Chassis	MOUNTING GP-D/A & S/A - (SHOE TYPE BRAKE)	9	2
D50S2/D60S2/D70S2	EM0BH, EM0EH \| A130012	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	CHASSIS	Chassis	MOUNT GROUP;TILT	6	4
D50S2/D60S2/D70S2	EM0BH, EM0EH \| A130012	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	CHASSIS	Chassis	MOUNT GROUP;MAST	5	2
D50S2/D60S2/D70S2	EM0BH, EM0EH \| A130012	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Mast	Mounting Gp-Mast - (STD, FFT)-Shoe Type Brake	7	2
D50S2/D60S2/D70S2	EM0BH, EM0EH \| A130012	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	MOUNTING GROUP;CARRIAGE, BAR TYPE	15	2
D50S2/D60S2/D70S2	EM0BH, EM0EH \| A130012	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	Mounting Gp - Carriage - (5/6/7 Ton , FFT) - Shaft Type	15	2
D50S2/D60S2/D70S2	EM0BH, EM0EH \| A130012	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	Mounting Gp - Carriage - (FFT) - Hook On Type	27	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	CHASSIS	Chassis	MOUNTING GP-D/A & S/A	10	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	CHASSIS	Chassis	MOUNT GROUP;TILT	6	4
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	CHASSIS	Chassis	MOUNT GROUP - TILT	5	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Mast	Mounting Gp-Mast - (STD, FFT)-Shoe Type Brake	7	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	MOUNTING GROUP;CARRIAGE, BAR TYPE	15	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	MOUNT GP - CARRIAGE-S/S(SHAFT TYPE)	15	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	Mounting Gp - Carriage - (5/6/7 Ton , FFT) - Shaft Type	15	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	MOUNT GP - CARRIAGE-HOOK ON TYPE(D70)	15	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	MOUNT GP - CARRIAGE-HOOK ON TYPE(D70)	15	2
D50S/D60S/D70S	EM0C1 \| A130013	Вилочный погрузчик с ДВС	Engine 6 Ton DIESEL	FRONT END	Carriage	MOUNT GP - CARRIAGE-STD(SHAFT TYPE,D70)	15	2
D100/D120	EM083, EM084, EM0F1, EM0F2 \| A141520	Вилочный погрузчик с ДВС	Engine 10 Ton DIESEL	CHASSIS	Chassis	MOUNT GROUP;TILT	4	4
D100/D120	EM083, EM084, EM0F1, EM0F2 \| A141520	Вилочный погрузчик с ДВС	Engine 10 Ton DIESEL	FRONT END	Mast	MOUNT GROUP;MAST	6	2
D100/D120	EM083, EM084, EM0F1, EM0F2 \| A141520	Вилочный погрузчик с ДВС	Engine 10 Ton DIESEL	FRONT END	Mast	MTG GP-MAST	6	2	C
D100/D120	EM083, EM084, EM0F1, EM0F2 \| A141520	Вилочный погрузчик с ДВС	Engine 10 Ton DIESEL	FRONT END	Attachment	MOUNT GROUP;CARRIAGE	21	2
D150	EM086, EM0F3 \| A142307	Вилочный погрузчик с ДВС	Engine 15 Ton DIESEL	CHASSIS	Chassis	MOUNT GROUP;TILT	4	4
D150	EM086, EM0F3 \| A142307	Вилочный погрузчик с ДВС	Engine 15 Ton DIESEL	FRONT END	Mast	MOUNT GROUP;MAST	6	2
D150	EM086, EM0F3 \| A142307	Вилочный погрузчик с ДВС	Engine 15 Ton DIESEL	FRONT END	Mast	Mast Gp - Basic-STD	5	2
D150	EM086, EM0F3 \| A142307	Вилочный погрузчик с ДВС	Engine 15 Ton DIESEL	FRONT END	Carriage	MOUNT GROUP;CARRIAGE	21	2
G35S/G40S/G45S	EM0B1, EM0BQ \| A231095	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	CHASSIS	Chassis	STEER AXLE AS	30	8
G35S/G40S/G45S	EM0B1, EM0BQ \| A231095	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	CHASSIS	Chassis	MOUNTING GP-TILT	4	2	C
G35S/G40S/G45S	EM0B1, EM0BQ \| A231095	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	FRONT END	Mast	LIFT RELAY GP - STD	14	2
G35S/G40S/G45S	EM0B1, EM0BQ \| A231095	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	FRONT END	Mast	LIFT RELAY GP - FFL	14	2
G35S/G40S/G45S	EM0B1, EM0BQ \| A231095	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	FRONT END	Mast	MOUNTING GP-LIFT & TILT - (STD)	22	6
G35S/G40S/G45S	EM0B1, EM0BQ \| A231095	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	FRONT END	Mast	MOUNTING GP-LIFT & TILT - (FFT)	24	6
G35S/G40S/G45S	EM0B1, EM0BQ \| A231095	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	FRONT END	Mast	MOUNTING GP-LIFT & TILT - (FFL)	33	6
D35S2/D40S2/D45S2, D50C2, D40SC2/D45SC2/D50SC2	EM0C9, EM0E8 \| A231526	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	CHASSIS	Chassis	AXLE GP - STEER	33	2
D35S2/D40S2/D45S2, D50C2, D40SC2/D45SC2/D50SC2	EM0C9, EM0E8 \| A231526	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	FRONT END	Mast	MTG GP-MAST	2	2
D35S/D40S/D45S	EM021, EM0BP \| D150864	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	CHASSIS	Chassis	STEER AXLE AS	30	8
D35S/D40S/D45S	EM021, EM0BP \| D150864	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	CHASSIS	Chassis	MOUNTING GP-TILT	4	2	C
D35S/D40S/D45S	EM021, EM0BP \| D150864	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	CHASSIS	Chassis	STEER AXLE AS	30	8
D35S/D40S/D45S	EM021, EM0BP \| D150864	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	FRONT END	Mast	LIFT RELAY GP - STD	14	2
D35S/D40S/D45S	EM021, EM0BP \| D150864	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	FRONT END	Mast	LIFT RELAY GP - FFL	14	2
D35S/D40S/D45S	EM021, EM0BP \| D150864	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	FRONT END	Mast	MOUNTING GP-LIFT & TILT - (STD)	22	6
D35S/D40S/D45S	EM021, EM0BP \| D150864	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	FRONT END	Mast	MOUNTING GP-LIFT & TILT - (FFT)	24	6
D35S/D40S/D45S	EM021, EM0BP \| D150864	Вилочный погрузчик с ДВС	Engine 4 Ton DIESEL	FRONT END	Mast	MOUNTING GP-LIFT & TILT - (FFL)	33	6
BR10J/BR13J/BR14J/BR15J/BR18J	BR10J, BR13J, BR15J, BR18J, EM060, EM061, EM063, EM064 \| D650024	Складская техника	BR 1 Ton Seat REACH	CHASSIS	Chassis	Caster Wheel Ass’y	5	1
BR10S/BR13S/BR14S/BR15S/BR18S	EM0B4, EM0B5, EM0B6, EM0B7 \| D650027	Складская техника	BR 1 Ton Standing REACH	CHASSIS	Chassis	Caster Wheel Ass’y	5	1
BR14JW/BR16JW	EM0C7, EM0C8 \| D650029	Складская техника	BR 1 Ton Seat REACH WIDE	CHASSIS	Chassis	Caster Wheel Ass’y	5	1
G35S2/G40S2/G45S2, G50C2, G40SC2/G45SC2/G50SC2	EM0CB, EM0E9, EM0G2, EM0G3 \| SB1010	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	CHASSIS	Chassis	HEAVY DUTY FOR OCDB-OPTION	>	1
G35S2/G40S2/G45S2, G50C2, G40SC2/G45SC2/G50SC2	EM0CB, EM0E9, EM0G2, EM0G3 \| SB1010	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	CHASSIS	Chassis	AXLE GP - STEER	33	2
G35S2/G40S2/G45S2, G50C2, G40SC2/G45SC2/G50SC2	EM0CB, EM0E9, EM0G2, EM0G3 \| SB1010	Вилочный погрузчик с ДВС	Engine 4 Ton GAS	FRONT END	Mast	MTG GP-MAST	2	2

Модель техники	D50S2/D60S2/D70S2, BR10J/BR13J/BR14J/BR15J/BR18J, G35S/G40S/G45S, D35S/D40S/D45S, D50S/D60S/D70S, D35S2/D40S2/D45S2, D50C2, D40SC2/D45SC2/D50SC2, G35S2/G40S2/G45S2, G50C2, G40SC2/G45SC2/G50SC2, D100/D120, D150, BR10S/BR13S/BR14S/BR15S/BR18S, BR14JW/BR16JW
Номер по каталогу	S6710041
Бренд	DOOSAN
Система Doosan	Engine 6 Ton DIESEL, BR 1 Ton Seat REACH, Engine 4 Ton GAS, Engine 4 Ton DIESEL, Engine 10 Ton DIESEL, Engine 15 Ton DIESEL, BR 1 Ton Standing REACH, BR 1 Ton Seat REACH WIDE
Раздел Doosan	CHASSIS, FRONT END
Тип техники Doosan	Вилочный погрузчик с ДВС, Складская техника
Серии Doosan	EM0BH, EM0EH \| A130012, BR10J, BR13J, BR15J, BR18J, EM060, EM061, EM063, EM064 \| D650024, EM0B1, EM0BQ \| A231095, EM021, EM0BP \| D150864, EM0C1 \| A130013, EM0C9, EM0E8 \| A231526, EM0CB, EM0E9, EM0G2, EM0G3 \| SB1010, EM083, EM084, EM0F1, EM0F2 \| A141520, EM086, EM0F3 \| A142307, EM0B4, EM0B5, EM0B6, EM0B7 \| D650027, EM0C7, EM0C8 \| D650029
Узел Doosan	Chassis, Mast, Attachment, Carriage
Позиция на схеме Doosan	2, >, 4, 5, 6, 7, 9, 10, 14, 15, 21, 27, 30, 24, 22, 33
