Болт w шайба | b w Mitsubishi F182510040 (BOLT,W/WASHER | B/W)

Болт w шайба | b w Mitsubishi F182510040 (BOLT,W/WASHER | B/W)

Болт w шайба | b w, F182510040 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FB35K, 35KPAC, FB30K, 30KPAC, FD50N1, FD45N1, FD40N1, FD55N1, FD50NM1, FD50CNM1, FD50CN1, FD40NM1, FD45NM1, FD55NM1, FD150NA1, FD135NM1, FD100N, FD135N1, FD160N, FD160NA1, FD120NZ, FD135N, FD120NM1, FD150N, FD120N1, FD150ANM1, FD100NZ, FD120N, FD100NM1, FD135NM1(S), FD135NZ, FD150ANZ, FD150ANM1(S), FD120NM1(S), FD100N1, FD100NM1(S), FB20K, FD80N, FD90N, FB20K PAC, FB25K, FB25K PAC, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FD50NB, FD40NB, FD55NB, FD50CNB, FD45NB
Номер по каталогу	F182510040
Бренд	Mitsubishi
Система Mitsubishi	OPTION, MOTOR, HYDRAULIC SYSTEM, AXLE, FRAME & BODY, DRIVING CONTROL, HYDRAULIC CONTROL
Узел Mitsubishi	01-20-01 01-20-01 MOTOR, 01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2), 01-12-09 01-12-09 RADIATOR COVER (PART-2), 01-51-03 01-51-03 PARKING ASSY, 01-72-0102 01-72-0102 FC&MC HYDRAULIC CONTROL (PART-2), 01-72-02 01-72-02 FC & MC HYDRAULIC CONTROL (PART-2), 01-34-07 01-34-07 SPECIAL DUAL TIRE KIT (OPTION), 01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15, 03-34-03 03-34-03 SPECIAL DUAL TIRE KIT, 01-34-05 01-34-05 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15, 01-12-04 01-12-04 UPPER FRAME SYSTEM (PART-4), 01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16, 01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16, 03-34-02 03-34-02 STANDARD DUAL TIRE KIT, 01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)

Все характеристики

По запросу

Артикул: mt004025-F182510040

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: F182510040

Название: BOLT,W/WASHER | B/W

Название на русском: Болт w шайба | b w

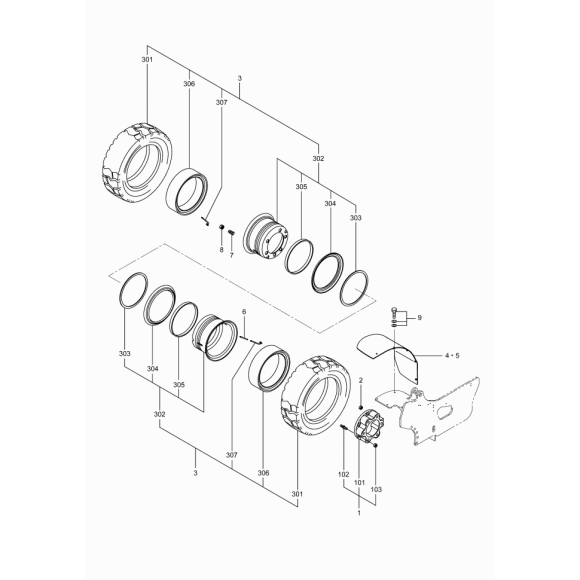

Основная схема: 01-34-07 01-34-07 SPECIAL DUAL TIRE KIT (OPTION). Номер на картинке: 9.

Применяемость: найдено 203 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD55N	AXLE	01-34-07 01-34-07 SPECIAL DUAL TIRE KIT (OPTION)	9	8
FD50NB	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD40NB	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FG45N	OPTION	03-34-02 03-34-02 STANDARD DUAL TIRE KIT	7	8
FD40NB	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD50N1	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD40N1	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD150ANM1(S)	FRAME & BODY	01-12-09 01-12-09 RADIATOR COVER (PART-2)	18	4
35KPAC	DRIVING CONTROL	01-51-03 01-51-03 PARKING ASSY	2	3	CNG: C \| 01 SN -2001-02 \| 02 SN -2001-02 \| 03 SN - \| 04 SN -
FD135N	HYDRAULIC SYSTEM	01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FD40N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FD40NB	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD160N	HYDRAULIC SYSTEM	01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FD50NM1	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD50NB	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FG40N	AXLE	01-34-07 01-34-07 SPECIAL DUAL TIRE KIT (OPTION)	9	8
FG50N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FD50CNB	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FD50CN1	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FG40N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FD50CN	AXLE	01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)	7	8
FD50CN	AXLE	01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)	7	8
FD50CN	OPTION	03-34-02 03-34-02 STANDARD DUAL TIRE KIT	7	8
FD150N	HYDRAULIC SYSTEM	01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FG45N	AXLE	01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)	7	8
FD45N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FD50CN1	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD100N	HYDRAULIC SYSTEM	01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FD150N	HYDRAULIC SYSTEM	01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FD55N	AXLE	01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)	7	8
FD135NM1(S)	FRAME & BODY	01-12-09 01-12-09 RADIATOR COVER (PART-2)	18	4
FD80N	HYDRAULIC SYSTEM	01-72-0102 01-72-0102 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FD50N	AXLE	01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)	7	8
FD55NM1	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD120NM1	FRAME & BODY	01-12-09 01-12-09 RADIATOR COVER (PART-2)	18	4
FD120N	HYDRAULIC SYSTEM	01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FD55NM1	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FD55NB	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD120N1	FRAME & BODY	01-12-04 01-12-04 UPPER FRAME SYSTEM (PART-4)	18	4
FD45N1	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FD40N1	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD45NB	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD55NB	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD55NB	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD50CN	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FD45NM1	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD160NA1	FRAME & BODY	01-12-04 01-12-04 UPPER FRAME SYSTEM (PART-4)	18	4
FD55NB	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FG50CN	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FD45N1	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FD55N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FG55N	AXLE	01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)	7	8
FG40N	OPTION	03-34-02 03-34-02 STANDARD DUAL TIRE KIT	7	8
FD55N	OPTION	03-34-02 03-34-02 STANDARD DUAL TIRE KIT	7	8
FD120NZ	HYDRAULIC CONTROL	01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FD100NM1	FRAME & BODY	01-12-09 01-12-09 RADIATOR COVER (PART-2)	18	4
FB25K PAC	DRIVING CONTROL	01-51-03 01-51-03 PARKING ASSY	2	3	CNG: C \| 01 SN -2001-02 \| 02 SN -2001-02 \| 03 SN - \| 04 SN -
FD100N	HYDRAULIC SYSTEM	01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2)	6	4
FD40NB	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FB20K PAC	MOTOR	01-20-01 01-20-01 MOTOR	10	2	CNG: E \| 03 SN - \| 04 SN -
FD50NM1	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD50CN1	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD55N1	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD150NA1	FRAME & BODY	01-12-04 01-12-04 UPPER FRAME SYSTEM (PART-4)	18	4
FD45N1	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FG50N	AXLE	01-34-07 01-34-07 SPECIAL DUAL TIRE KIT (OPTION)	9	8
FD40N1	AXLE	01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FG45N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FB25K	DRIVING CONTROL	01-51-03 01-51-03 PARKING ASSY	2	3	CNG: C \| 01 SN -2001-02 \| 02 SN -2001-02 \| 03 SN - \| 04 SN -
FD50CN	AXLE	01-34-07 01-34-07 SPECIAL DUAL TIRE KIT (OPTION)	9	8
FD40NB	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FD45N	AXLE	01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)	7	8
FG40N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FG55N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8
FD55N1	AXLE	01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16	9	8
FD55N1	AXLE	01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16	8	8
FG45N	AXLE	01-34-07 01-34-07 SPECIAL DUAL TIRE KIT (OPTION)	9	8
FD50NM1	AXLE	01-34-05 01-34-05 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15	9	8
FD50N	OPTION	03-34-02 03-34-02 STANDARD DUAL TIRE KIT	7	8
FD55N	OPTION	03-34-03 03-34-03 SPECIAL DUAL TIRE KIT	9	8

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FB35K, 35KPAC, FB30K, 30KPAC, FD50N1, FD45N1, FD40N1, FD55N1, FD50NM1, FD50CNM1, FD50CN1, FD40NM1, FD45NM1, FD55NM1, FD150NA1, FD135NM1, FD100N, FD135N1, FD160N, FD160NA1, FD120NZ, FD135N, FD120NM1, FD150N, FD120N1, FD150ANM1, FD100NZ, FD120N, FD100NM1, FD135NM1(S), FD135NZ, FD150ANZ, FD150ANM1(S), FD120NM1(S), FD100N1, FD100NM1(S), FB20K, FD80N, FD90N, FB20K PAC, FB25K, FB25K PAC, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FD50NB, FD40NB, FD55NB, FD50CNB, FD45NB
Номер по каталогу	F182510040
Бренд	Mitsubishi
Система Mitsubishi	OPTION, MOTOR, HYDRAULIC SYSTEM, AXLE, FRAME & BODY, DRIVING CONTROL, HYDRAULIC CONTROL
Узел Mitsubishi	01-20-01 01-20-01 MOTOR, 01-72-02 01-72-02 FC&MC HYDRAULIC CONTROL (PART-2), 01-12-09 01-12-09 RADIATOR COVER (PART-2), 01-51-03 01-51-03 PARKING ASSY, 01-72-0102 01-72-0102 FC&MC HYDRAULIC CONTROL (PART-2), 01-72-02 01-72-02 FC & MC HYDRAULIC CONTROL (PART-2), 01-34-07 01-34-07 SPECIAL DUAL TIRE KIT (OPTION), 01-34-06 01-34-06 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15, 03-34-03 03-34-03 SPECIAL DUAL TIRE KIT, 01-34-05 01-34-05 SPEC DUAL TIRE KIT TRELLEBORG (OPTION) J-LUG 8.25-15, 01-12-04 01-12-04 UPPER FRAME SYSTEM (PART-4), 01-34-05 01-34-05 STANDARD DUAL TIRE KIT (OPTION) BS J-LUG 7.50-16, 01-34-07 01-34-07 STANDARD DUAL TIRE KIT (OPTION) ITL J-LUG 7.50-16, 03-34-02 03-34-02 STANDARD DUAL TIRE KIT, 01-34-06 01-34-06 STANDARD DUAL TIRE KIT (OPTION)
Позиция на схеме Mitsubishi	7, 2, 8, 6, 9, 10, 18
Название на русском	Болт w шайба \| b w
