Пружина Mitsubishi 9204712600 (SPRING)

Пружина Mitsubishi 9204712600 (SPRING)

Пружина, 9204712600 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD70NM/FD70NMS, FD60, FD70, FBC35N, FD60NM/FD60NMS, FBC55N, FBC45N, FBC40N, FGC40K STC-G, FGC45K C-G, FGC45K-G, FGC55K STC-LPG, FD45N1, FD40N1, FGC45K-LPG, FGC35K-LPG, FG40K, FGC60K-G, FD40NM1, FGC55K-LPG, FD45NM1, FD40K, FK40KL, FD70N, FGC40K(STC)-LPG, FGC60K-LPG, FG40KL, FGC45K C-LPG, FGC70K (STC) LPG, FD40KL, FGC70K-G, FGC70K STC-G, FGC40K-G, FGC35K-G, FGC55K STC-G, FGC55K-G, FD70NM, FGC70K STC, FGC55K STC, FGC70K, FGC55K, FGC60K, FGC40K STC, FGC40K, FGC35K, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FD40NB, FD45NB
Номер по каталогу	9204712600
Бренд	Mitsubishi
Система Mitsubishi	OPTION, AXLE, BRAKE SYSTEM, REDUCTION AND DIFFERENTIAL
Узел Mitsubishi	01-47-01 01-47-01 WHEEL BRAKE PIPING, 01-46-03 01-46-03 WHEEL BRAKE ASSY (R.H.), 01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.), 01-46-02 01-46-02 WHEEL BRAKE ASSY (L.H.), 01-46-02A 01-46-02A WHEEL BRAKE ASSY (R.H.) (OLD) (LINING WIDTH:63MM), 01-46-03 01-46-03 WHEEL BRAKE ASSY (L.H.)(FOR FG45K,FG50K), 01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.), 01-460-03 01-460-03 WHEEL BRAKE ASSY (R.H.), 01-46-02B 01-46-02B WHEEL BRAKE ASSY (R.H.) (NEW) (LINING WIDTH:100MM), 01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.) (LINING WIDTH:100MM), 01-460-01 01-460-01 WHEEL BRAKE ASSY (L.H.), 01-46-01B 01-46-01B WHEEL BRAKE ASSY (L.H.) (NEW) (LINING WIDTH:100MM), 01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.) (LINING WIDTH:100MM), 01-46-03 01-46-03 WHEEL BRAKE ASSY (L. H.) (FOR FD45, FD50), 01-46-01A 01-46-01A WHEEL BRAKE ASSY (L.H.) (OLD) (LINING WIDTH:63MM), 01-46-04 01-46-04 WHEEL BRAKE ASSY (R.H.) (FOR FG45K,FG50K), 01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.) (FOR FD45,FD50), 01-46-03 01-46-03 WHEEL BRAKE ASSY (L.H.) (FOR FD45K,FD50K), 01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN1-FD55N1), 01-32-08 01-32-08 BRAKE R.H. (FOR FD50CN-55N), 01-32-12 01-32-12 DSDA BRAKE KIT (OPTION) (BRAKE L.H.), WHEEL WHEEL BRAKE ASSY (R.H.), 03-32-03 03-32-03 DSDA BRAKE KIT (BRAKE L.H.), 01-32-07 01-32-07 BRAKE L.H. (FOR FG50CN-55N), 01-32-08 01-32-08 BRAKE R.H. (FOR FG50CN-55N), 01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.), 03-32-04 03-32-04 DSDA BRAKE KIT (BRAKE R.H.), WHEEL WHEEL BRAKE ASSY (L.H.), 01-32-08 01-32-08 BRAKE R.H. (FOR FD50CN1-FD55N1), 01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN-55N), 01-46-04 01-46-04 WHEEL BRAKE ASSY (R.H.) (FOR FD45K,FD50K), 01-32-08 01-32-08 BRAKE R.H. (FOR FD50CNM1-55NM1), 01-32-07 01-32-07 BRAKE L.H. (FOR FD50CNM1-55NM1)

Все характеристики

По запросу

Артикул: mt003918-9204712600

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9204712600

Название: SPRING

Название на русском: Пружина

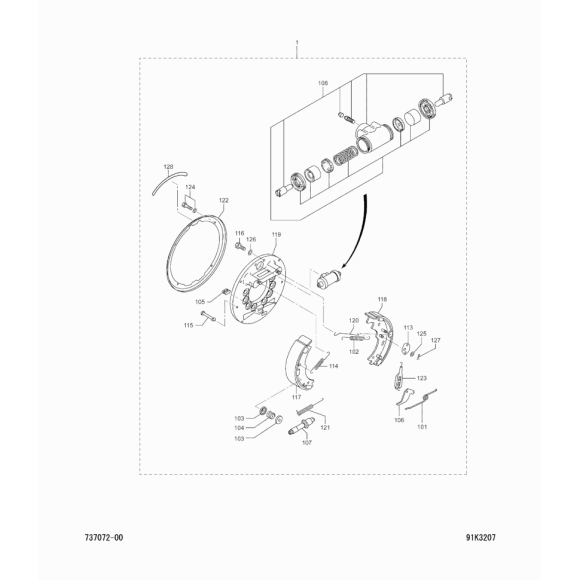

Основная схема: 01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN1-FD55N1). Номер на картинке: 121.

Применяемость: найдено 271 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD40NB	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN1-FD55N1)	121	1	01 SN - \| 02 SN -
FGC40K(STC)-LPG	AXLE	01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.)	121	1	RP: N \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-* \| 05 SN 1999-09-*
FD40N	AXLE	01-32-08 01-32-08 BRAKE R.H. (FOR FD50CN-55N)	121	1	01 SN - \| 02 SN -
FD45N	AXLE	01-32-08 01-32-08 BRAKE R.H. (FOR FD50CN-55N)	121	1	01 SN - \| 02 SN -
FD55N	AXLE	01-32-12 01-32-12 DSDA BRAKE KIT (OPTION) (BRAKE L.H.)	121	1
FD70NM	BRAKE SYSTEM	01-46-02 01-46-02 WHEEL BRAKE ASSY (L.H.)	121	1
FGC70K-G	AXLE	01-46-02A 01-46-02A WHEEL BRAKE ASSY (R.H.) (OLD) (LINING WIDTH:63MM)	121	1	RP: N \| CNG: D \| 01 SN 1998-09-1999-08 \| 02 SN 1998-09-1999-08 \| 03 SN 1998-09-1999-08 \| 04 SN 1998-09-1999-08 \| 05 SN 1998-09-1999-08
FD70	BRAKE SYSTEM	WHEEL WHEEL BRAKE ASSY (R.H.)	121	1
FG40KL	AXLE	01-46-03 01-46-03 WHEEL BRAKE ASSY (L.H.)(FOR FG45K,FG50K)	121	1	01 SN - \| 02 SN -
FG50CN	OPTION	03-32-03 03-32-03 DSDA BRAKE KIT (BRAKE L.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FG40N	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FG50CN-55N)	121	1	01 SN - \| 02 SN -
FD50CN	AXLE	01-32-12 01-32-12 DSDA BRAKE KIT (OPTION) (BRAKE L.H.)	121	1
FD45N	AXLE	01-32-12 01-32-12 DSDA BRAKE KIT (OPTION) (BRAKE L.H.)	121	1
FGC55K-LPG	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.)	121	1	RP: N \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FG45N	REDUCTION AND DIFFERENTIAL	01-32-08 01-32-08 BRAKE R.H. (FOR FG50CN-55N)	121	1	01 SN - \| 02 SN -
FD50CN	AXLE	01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.)	121	1
FGC40K	AXLE	01-47-01 01-47-01 WHEEL BRAKE PIPING	3306	2
FBC55N	AXLE	01-460-03 01-460-03 WHEEL BRAKE ASSY (R.H.)	121	1
FD60NM/FD60NMS	BRAKE SYSTEM	01-46-03 01-46-03 WHEEL BRAKE ASSY (R.H.)	121	1
FD50CN	OPTION	03-32-04 03-32-04 DSDA BRAKE KIT (BRAKE R.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FD70	BRAKE SYSTEM	WHEEL WHEEL BRAKE ASSY (L.H.)	121	1
FD45N1	AXLE	01-32-08 01-32-08 BRAKE R.H. (FOR FD50CN1-FD55N1)	121	1	01 SN - \| 02 SN -
FD40NB	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN1-FD55N1)	121	1	01 SN - \| 02 SN -
FD60	BRAKE SYSTEM	WHEEL WHEEL BRAKE ASSY (L.H.)	121	1
FGC70K STC-G	AXLE	01-46-02B 01-46-02B WHEEL BRAKE ASSY (R.H.) (NEW) (LINING WIDTH:100MM)	121	1	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-* \| 05 SN 1999-09-*
FD40N	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN-55N)	121	1	01 SN - \| 02 SN -
FD50CN	OPTION	03-32-03 03-32-03 DSDA BRAKE KIT (BRAKE L.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FGC60K	AXLE	01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.) (LINING WIDTH:100MM)	121	1
FBC35N	AXLE	01-460-01 01-460-01 WHEEL BRAKE ASSY (L.H.)	121	1
FGC45K-G	AXLE	01-47-01 01-47-01 WHEEL BRAKE PIPING	3506	2	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FGC70K	AXLE	01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.) (LINING WIDTH:100MM)	121	1
FGC70K-G	AXLE	01-46-01B 01-46-01B WHEEL BRAKE ASSY (L.H.) (NEW) (LINING WIDTH:100MM)	121	1	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-* \| 05 SN 1999-09-*
FBC55N	AXLE	01-460-01 01-460-01 WHEEL BRAKE ASSY (L.H.)	121	1
FD50N	OPTION	03-32-03 03-32-03 DSDA BRAKE KIT (BRAKE L.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FD40N	AXLE	01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.)	121	1
FG45N	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FG50CN-55N)	121	1	01 SN - \| 02 SN -
FGC60K	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.) (LINING WIDTH:100MM)	121	1
FBC40N	AXLE	01-460-01 01-460-01 WHEEL BRAKE ASSY (L.H.)	121	1
FGC55K STC	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.)	121	1
FD45NB	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN1-FD55N1)	121	1	01 SN - \| 02 SN -
FD70NM/FD70NMS	BRAKE SYSTEM	01-46-03 01-46-03 WHEEL BRAKE ASSY (R.H.)	121	1
FGC45K C-LPG	AXLE	01-47-01 01-47-01 WHEEL BRAKE PIPING	3506	2	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FGC70K	AXLE	01-47-01 01-47-01 WHEEL BRAKE PIPING	3306	2
FD40KL	AXLE	01-46-03 01-46-03 WHEEL BRAKE ASSY (L. H.) (FOR FD45, FD50)	121	1	CNG: E \| 01 SN - \| 02 SN -
FD45N1	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN1-FD55N1)	121	1	01 SN - \| 02 SN -
FGC40K-G	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.)	121	1	RP: N \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-* \| 05 SN 1999-09-*
FG40N	AXLE	01-32-08 01-32-08 BRAKE R.H. (FOR FG50CN-55N)	121	1	01 SN - \| 02 SN -
FGC55K STC-G	AXLE	01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.)	121	1	RP: N \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FGC55K-LPG	AXLE	01-47-01 01-47-01 WHEEL BRAKE PIPING	3306	2	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FD45N	AXLE	01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.)	121	1
FGC60K-LPG	AXLE	01-46-02A 01-46-02A WHEEL BRAKE ASSY (R.H.) (OLD) (LINING WIDTH:63MM)	121	1	RP: N \| CNG: D \| 01 SN 1998-09-1999-08 \| 02 SN 1998-09-1999-08 \| 03 SN 1998-09-1999-08 \| 04 SN 1998-09-1999-08 \| 05 SN 1998-09-1999-08
FD40NM1	AXLE	01-32-08 01-32-08 BRAKE R.H. (FOR FD50CNM1-55NM1)	121	1	01 SN - \| 02 SN -
FGC55K STC-LPG	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.)	121	1	RP: N \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FGC70K	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.) (LINING WIDTH:100MM)	121	1
FG50N	AXLE	01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FG55N	AXLE	01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FGC70K STC-G	AXLE	01-46-01B 01-46-01B WHEEL BRAKE ASSY (L.H.) (NEW) (LINING WIDTH:100MM)	121	1	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-* \| 05 SN 1999-09-*
FG40N	AXLE	01-32-08 01-32-08 BRAKE R.H. (FOR FG50CN-55N)	121	1	01 SN - \| 02 SN -
FGC40K STC-G	AXLE	01-47-01 01-47-01 WHEEL BRAKE PIPING	3306	2	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-* \| 05 SN 1999-09-*
FD55N	OPTION	03-32-04 03-32-04 DSDA BRAKE KIT (BRAKE R.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FD40N1	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN1-FD55N1)	121	1	01 SN - \| 02 SN -
FGC45K C-LPG	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.)	121	1	RP: N \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FGC60K	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.) (LINING WIDTH:100MM)	121	1
FGC70K (STC) LPG	AXLE	01-46-01A 01-46-01A WHEEL BRAKE ASSY (L.H.) (OLD) (LINING WIDTH:63MM)	121	1	RP: N \| CNG: D \| 01 SN 1998-09-1999-08 \| 02 SN 1998-09-1999-08 \| 03 SN 1998-09-1999-08 \| 04 SN 1998-09-1999-08 \| 05 SN 1998-09-1999-08
FD55N	AXLE	01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.)	121	1
FG40K	AXLE	01-46-04 01-46-04 WHEEL BRAKE ASSY (R.H.) (FOR FG45K,FG50K)	121	1	01 SN - \| 02 SN -
FGC60K-G	AXLE	01-46-01A 01-46-01A WHEEL BRAKE ASSY (L.H.) (OLD) (LINING WIDTH:63MM)	121	1	RP: N \| CNG: D \| 01 SN 1998-09-1999-08 \| 02 SN 1998-09-1999-08 \| 03 SN 1998-09-1999-08 \| 04 SN 1998-09-1999-08 \| 05 SN 1998-09-1999-08
FGC45K C-LPG	AXLE	01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.)	121	1	RP: N \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FG45N	AXLE	01-32-07 01-32-07 BRAKE L.H. (FOR FG50CN-55N)	121	1	01 SN - \| 02 SN -
FGC70K (STC) LPG	AXLE	01-46-01B 01-46-01B WHEEL BRAKE ASSY (L.H.) (NEW) (LINING WIDTH:100MM)	121	1	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-* \| 05 SN 1999-09-*
FG40N	AXLE	01-32-12 01-32-12 DSDA BRAKE KIT (OPTION) (BRAKE L.H.)	121	1
FGC60K-G	AXLE	01-46-01B 01-46-01B WHEEL BRAKE ASSY (L.H.) (NEW) (LINING WIDTH:100MM)	121	1	CNG: A \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-* \| 05 SN 1999-09-*
FGC45K C-G	AXLE	01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.)	121	1	RP: N \| 01 SN 1999-09-* \| 02 SN 1999-09-* \| 03 SN 1999-09-* \| 04 SN 1999-09-*
FGC70K STC	AXLE	01-47-01 01-47-01 WHEEL BRAKE PIPING	3606	2
FG45N	AXLE	01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.)	121	1
FD50CN	OPTION	03-32-03 03-32-03 DSDA BRAKE KIT (BRAKE L.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FG45N	AXLE	01-32-08 01-32-08 BRAKE R.H. (FOR FG50CN-55N)	121	1	01 SN - \| 02 SN -
FG55N	OPTION	03-32-03 03-32-03 DSDA BRAKE KIT (BRAKE L.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FG50N	OPTION	03-32-03 03-32-03 DSDA BRAKE KIT (BRAKE L.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -
FD50CN	OPTION	03-32-04 03-32-04 DSDA BRAKE KIT (BRAKE R.H.)	121	1	03 SN - \| 04 SN - \| 05 SN -

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FD70NM/FD70NMS, FD60, FD70, FBC35N, FD60NM/FD60NMS, FBC55N, FBC45N, FBC40N, FGC40K STC-G, FGC45K C-G, FGC45K-G, FGC55K STC-LPG, FD45N1, FD40N1, FGC45K-LPG, FGC35K-LPG, FG40K, FGC60K-G, FD40NM1, FGC55K-LPG, FD45NM1, FD40K, FK40KL, FD70N, FGC40K(STC)-LPG, FGC60K-LPG, FG40KL, FGC45K C-LPG, FGC70K (STC) LPG, FD40KL, FGC70K-G, FGC70K STC-G, FGC40K-G, FGC35K-G, FGC55K STC-G, FGC55K-G, FD70NM, FGC70K STC, FGC55K STC, FGC70K, FGC55K, FGC60K, FGC40K STC, FGC40K, FGC35K, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FD40NB, FD45NB
Номер по каталогу	9204712600
Бренд	Mitsubishi
Система Mitsubishi	OPTION, AXLE, BRAKE SYSTEM, REDUCTION AND DIFFERENTIAL
Узел Mitsubishi	01-47-01 01-47-01 WHEEL BRAKE PIPING, 01-46-03 01-46-03 WHEEL BRAKE ASSY (R.H.), 01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.), 01-46-02 01-46-02 WHEEL BRAKE ASSY (L.H.), 01-46-02A 01-46-02A WHEEL BRAKE ASSY (R.H.) (OLD) (LINING WIDTH:63MM), 01-46-03 01-46-03 WHEEL BRAKE ASSY (L.H.)(FOR FG45K,FG50K), 01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.), 01-460-03 01-460-03 WHEEL BRAKE ASSY (R.H.), 01-46-02B 01-46-02B WHEEL BRAKE ASSY (R.H.) (NEW) (LINING WIDTH:100MM), 01-46-02 01-46-02 WHEEL BRAKE ASSY (R.H.) (LINING WIDTH:100MM), 01-460-01 01-460-01 WHEEL BRAKE ASSY (L.H.), 01-46-01B 01-46-01B WHEEL BRAKE ASSY (L.H.) (NEW) (LINING WIDTH:100MM), 01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.) (LINING WIDTH:100MM), 01-46-03 01-46-03 WHEEL BRAKE ASSY (L. H.) (FOR FD45, FD50), 01-46-01A 01-46-01A WHEEL BRAKE ASSY (L.H.) (OLD) (LINING WIDTH:63MM), 01-46-04 01-46-04 WHEEL BRAKE ASSY (R.H.) (FOR FG45K,FG50K), 01-46-01 01-46-01 WHEEL BRAKE ASSY (L.H.) (FOR FD45,FD50), 01-46-03 01-46-03 WHEEL BRAKE ASSY (L.H.) (FOR FD45K,FD50K), 01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN1-FD55N1), 01-32-08 01-32-08 BRAKE R.H. (FOR FD50CN-55N), 01-32-12 01-32-12 DSDA BRAKE KIT (OPTION) (BRAKE L.H.), WHEEL WHEEL BRAKE ASSY (R.H.), 03-32-03 03-32-03 DSDA BRAKE KIT (BRAKE L.H.), 01-32-07 01-32-07 BRAKE L.H. (FOR FG50CN-55N), 01-32-08 01-32-08 BRAKE R.H. (FOR FG50CN-55N), 01-32-13 01-32-13 DSDA BRAKE KIT (OPTION) (BRAKE R.H.), 03-32-04 03-32-04 DSDA BRAKE KIT (BRAKE R.H.), WHEEL WHEEL BRAKE ASSY (L.H.), 01-32-08 01-32-08 BRAKE R.H. (FOR FD50CN1-FD55N1), 01-32-07 01-32-07 BRAKE L.H. (FOR FD50CN-55N), 01-46-04 01-46-04 WHEEL BRAKE ASSY (R.H.) (FOR FD45K,FD50K), 01-32-08 01-32-08 BRAKE R.H. (FOR FD50CNM1-55NM1), 01-32-07 01-32-07 BRAKE L.H. (FOR FD50CNM1-55NM1)
Позиция на схеме Mitsubishi	121, 3306, 3606, 3506
Название на русском	Пружина
