Цилиндр узел в сборе колесо тормоза Mitsubishi 91E4600112 (CYLINDER ASSY,WHEEL/BRAKE)

Цилиндр узел в сборе колесо тормоза Mitsubishi 91E4600112 (CYLINDER ASSY,WHEEL/BRAKE)

Цилиндр узел в сборе колесо тормоза, 91E4600112 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FG30N, FD35AN, FD30N, FG35AN, FD35N, FD20S, FG25S, FGC28N, FGE35AN, FGC30N, FGC33N, FGE30N, FG35N, FD20HS, FG20S, FD25S, FD25HS, FGC25N, FGC20N, FGE18ZN, FGC20N-HO, FD25N, FGE25ZN, FGE20ZN, FD20N, FG25N, FGE25N, FD30HS, FGC25N-HO, FG20N, FG18ZN, FGE20N, FD30S, FG15ZN, FG30S, FGE15ZN
Номер по каталогу	91E4600112
Бренд	Mitsubishi
Система Mitsubishi	AXLE, BRAKE SYSTEM
Узел Mitsubishi	01-46-03 01-46-03 WHEEL BRAKE R.H., 01-46-02 01-46-02 WHEEL BRAKE L.H., 01-46-03 01-46-03 WHEEL BRAKE L.H., 01-46-04 01-46-04 WHEEL BRAKE L.H. (FOR FGE20ZN,25ZN), 01-46-05 01-46-05 WHEEL BRAKE R.H. (FOR FG20ZN,FG25ZN), 01-46-04 01-46-04 WHEEL BRAKE R.H., 01-46-05 01-46-05 WHEEL BRAKE R.H. (FOR FGE20ZN,25ZN), 01-46-02 01-46-02 WHEEL BRAKE R.H., 01-46-0103 01-46-0103 WHEEL BRAKE R.H., 01-46-0102 01-46-0102 WHEEL BRAKE L.H., 01-46-04 01-46-04 WHEEL BRAKE L.H. (FOR FG20ZN,FG25ZN), 01-46-03 01-46-03 WHEEL BRAKE L.H. (FOR FG20ZN,FG25ZN)

Все характеристики

По запросу

Артикул: mt002974-91E4600112

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 91E4600112

Название: CYLINDER ASSY,WHEEL/BRAKE

Название на русском: Цилиндр узел в сборе колесо тормоза

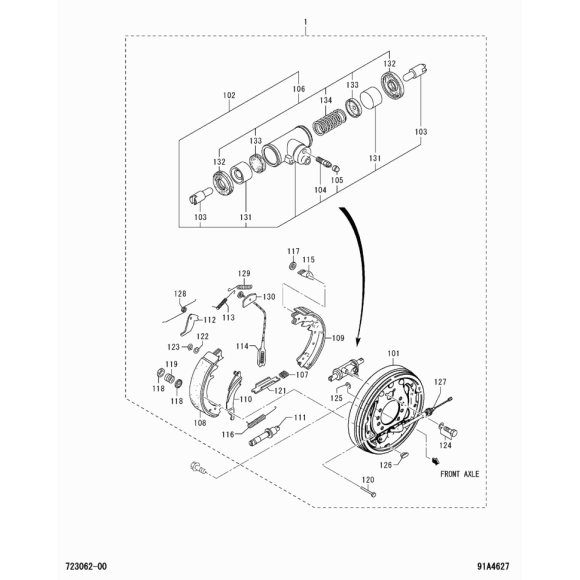

Основная схема: 01-46-03 01-46-03 WHEEL BRAKE R.H.. Номер на картинке: 102.

Применяемость: найдено 202 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FG20N	Axle	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE25N	Brake System	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG20N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD35AN	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE35AN	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG20N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD20N	Brake System	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG20S	BRAKE SYSTEM	01-46-03 01-46-03 WHEEL BRAKE L.H.	102	1
FD20N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE20N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE20N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD25N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGC30N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG25N	Brake System	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD35N	Brake System	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGC25N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD25N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGC28N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD35AN	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD20N	Brake System	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG20N	Brake System	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD30N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD20N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG35N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE25N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG35AN	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG25N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE15ZN	AXLE	01-46-04 01-46-04 WHEEL BRAKE L.H. (FOR FGE20ZN,25ZN)	102	1	01 SN - \| 02 SN -
FGE20N	Brake System	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD25N	Brake System	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD35AN	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG15ZN	AXLE	01-46-05 01-46-05 WHEEL BRAKE R.H. (FOR FG20ZN,FG25ZN)	102	1	01 SN - \| 02 SN -
FD20S	BRAKE SYSTEM	01-46-03 01-46-03 WHEEL BRAKE L.H.	102	1
FG35N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD30S	BRAKE SYSTEM	01-46-03 01-46-03 WHEEL BRAKE L.H.	102	1
FGE30N	Brake System	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGC33N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG25N	Axle	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD30N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG25S	BRAKE SYSTEM	01-46-04 01-46-04 WHEEL BRAKE R.H.	102	1
FGE35AN	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE35AN	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGC30N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE25ZN	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD25N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD30N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD30N	Brake System	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE20N	Brake System	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD30N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG30N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE18ZN	AXLE	01-46-04 01-46-04 WHEEL BRAKE L.H. (FOR FGE20ZN,25ZN)	102	1	01 SN - \| 02 SN -
FGE20ZN	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG30N	Brake System	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG25N	Brake System	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD35N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE25ZN	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD25S	BRAKE SYSTEM	01-46-03 01-46-03 WHEEL BRAKE L.H.	102	1
FD25N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD35N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE15ZN	AXLE	01-46-05 01-46-05 WHEEL BRAKE R.H. (FOR FGE20ZN,25ZN)	102	1	01 SN - \| 02 SN -
FGC25N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG30S	BRAKE SYSTEM	01-46-04 01-46-04 WHEEL BRAKE R.H.	102	1
FGC25N-HO	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE25N	Brake System	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG30N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE30N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE25ZN	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD25N	AXLE	01-46-02 01-46-02 WHEEL BRAKE R.H.	102	1
FG20N	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FG35N	Axle	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE30N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD30N	Axle	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGE35AN	AXLE	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FD20S	BRAKE SYSTEM	01-46-04 01-46-04 WHEEL BRAKE R.H.	102	1
FD25N	Axle	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE25ZN	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FG30N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FGE30N	Brake System	01-46-03 01-46-03 WHEEL BRAKE R.H.	102	1
FGC25N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1
FD30N	AXLE	01-46-02 01-46-02 WHEEL BRAKE L.H.	102	1

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FG30N, FD35AN, FD30N, FG35AN, FD35N, FD20S, FG25S, FGC28N, FGE35AN, FGC30N, FGC33N, FGE30N, FG35N, FD20HS, FG20S, FD25S, FD25HS, FGC25N, FGC20N, FGE18ZN, FGC20N-HO, FD25N, FGE25ZN, FGE20ZN, FD20N, FG25N, FGE25N, FD30HS, FGC25N-HO, FG20N, FG18ZN, FGE20N, FD30S, FG15ZN, FG30S, FGE15ZN
Номер по каталогу	91E4600112
Бренд	Mitsubishi
Система Mitsubishi	AXLE, BRAKE SYSTEM
Узел Mitsubishi	01-46-03 01-46-03 WHEEL BRAKE R.H., 01-46-02 01-46-02 WHEEL BRAKE L.H., 01-46-03 01-46-03 WHEEL BRAKE L.H., 01-46-04 01-46-04 WHEEL BRAKE L.H. (FOR FGE20ZN,25ZN), 01-46-05 01-46-05 WHEEL BRAKE R.H. (FOR FG20ZN,FG25ZN), 01-46-04 01-46-04 WHEEL BRAKE R.H., 01-46-05 01-46-05 WHEEL BRAKE R.H. (FOR FGE20ZN,25ZN), 01-46-02 01-46-02 WHEEL BRAKE R.H., 01-46-0103 01-46-0103 WHEEL BRAKE R.H., 01-46-0102 01-46-0102 WHEEL BRAKE L.H., 01-46-04 01-46-04 WHEEL BRAKE L.H. (FOR FG20ZN,FG25ZN), 01-46-03 01-46-03 WHEEL BRAKE L.H. (FOR FG20ZN,FG25ZN)
Позиция на схеме Mitsubishi	102
Название на русском	Цилиндр узел в сборе колесо тормоза
