Пружина тормоза return Mitsubishi 91A5210300 (SPRING, BRAKE RETURN)

Пружина тормоза return Mitsubishi 91A5210300 (SPRING, BRAKE RETURN)

Пружина тормоза return, 91A5210300 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD15N, FD18N, FD20CN, FG10N, FG15N, FG18N, FG20CN, FD10N, FG30N, FD35AN, FD30N, FG35AN, FD35N, FGC28N, FGE35AN, FGC30N, FGC33N, FGE30N, FG35N, FGC20CN, FGC15N, FGC18N, FGC25N, FGC20N, FGE18ZN, FGC20N-HO, FD25N, FGE20CN, FGE25ZN, FGE20ZN, FD20N, FG25N, FGE25N, FGC25N-HO, FG20N, FGE18N, FG20ZN, FG25ZN, FGE15N, FG18ZN, FGE20N, FG15ZN, FGE10N, FGE15ZN
Номер по каталогу	91A5210300
Бренд	Mitsubishi
Система Mitsubishi	DRIVING CONTROL, CONTROL SYSTEM
Узел Mitsubishi	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1), 01-51-01 01-51-01 DRIVING SYSTEM (PART-1), 01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FGE 15ZN, 18ZN), 01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE), 01-51-01 01-51-01 DRIVING COMMON PARTS (FOR TORQUE DRIVE), 01-51-01 01-51-01 DRIVING SYSTEM, 01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FGE20ZN,25ZN), 01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FG15ZN,FG18ZN), 01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FG20ZN,FG25ZN)

Все характеристики

По запросу

Артикул: mt001593-91A5210300

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 91A5210300

Название: SPRING, BRAKE RETURN

Название на русском: Пружина тормоза return

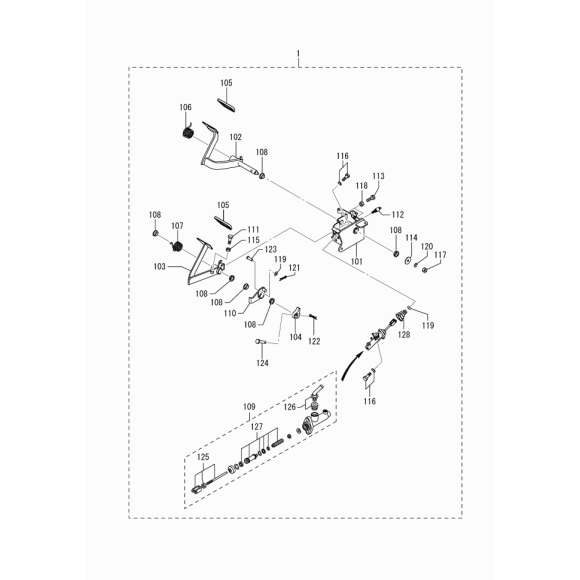

Основная схема: 01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1). Номер на картинке: 106.

Применяемость: найдено 158 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD20CN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FD20N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FGC28N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FG25N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FG30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FGC20CN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FD30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FG15ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FG15ZN,FG18ZN)	106	1	RP: N \| 01 SN 50158@-* \| 02 SN 70279@-* \| 03 SN - \| 04 SN -
FGE20ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FGE 15ZN, 18ZN)	106	1	RP: N \| 01 SN 58034@-* \| 02 SN 78051@-* \| 03 SN - \| 04 SN -
FG20N	Control System	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FGE20ZN	DRIVING CONTROL	01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FGE20ZN,25ZN)	106	1	RP: N \| 01 SN - \| 02 SN - \| 03 SN 08019@-* \| 04 SN 58090@-*
FD18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR TORQUE DRIVE)	106	1	RP: N \| 01 SN 00089@-* \| 02 SN 50717@-* \| 03 SN 70151@-* \| 04 SN 85068@-*
FD18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FD18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FGE25ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM	107	1
FD20N	Control System	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FGE18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FGE35AN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FGE15N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM	107	1
FD35N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FGE18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM	107	1
FG30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FD30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FGE30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FG20ZN	DRIVING CONTROL	01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FG20ZN,FG25ZN)	106	1	RP: N \| 01 SN - \| 02 SN - \| 03 SN 00040@-* \| 04 SN 50496@-*
FD18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FGE15ZN	DRIVING CONTROL	01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FGE20ZN,25ZN)	106	1	RP: N \| 01 SN - \| 02 SN - \| 03 SN 08019@-* \| 04 SN 58090@-*
FG15ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FG15N	CONTROL SYSTEM	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FGC33N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FD30N	Control System	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FG18ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FD18N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FD20CN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR TORQUE DRIVE)	106	1	RP: N \| 01 SN 00089@-* \| 02 SN 50717@-* \| 03 SN 70151@-* \| 04 SN 85068@-*
FG18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FGE10N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR TORQUE DRIVE)	106	1	RP: N \| 01 SN 08026@-* \| 02 SN 58078@-* \| 03 SN 78015@-* \| 04 SN 28029@-*
FGE20N	Control System	01-51-01 01-51-01 DRIVING SYSTEM	107	1
FD35N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FD15N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FG30N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FG30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FD20CN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM	107	1
FG20ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FG35N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FG20CN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FD35N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FD15N	CONTROL SYSTEM	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FG15N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FGE15ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FGE 15ZN, 18ZN)	106	1	RP: N \| 01 SN 58034@-* \| 02 SN 78051@-* \| 03 SN - \| 04 SN -
FGE25N	Control System	01-51-01 01-51-01 DRIVING SYSTEM	107	1
FD30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM	107	1
FGE25ZN	DRIVING CONTROL	01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FGE20ZN,25ZN)	106	1	RP: N \| 01 SN - \| 02 SN - \| 03 SN 08019@-* \| 04 SN 58090@-*
FGC30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FD20CN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FG20N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FGE18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR TORQUE DRIVE)	106	1	RP: N \| 01 SN 08026@-* \| 02 SN 58078@-* \| 03 SN 78015@-* \| 04 SN 28029@-*
FG35N	Control System	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FG20N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FGC25N-HO	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FG20CN	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FG18ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FG15ZN,FG18ZN)	106	1	RP: N \| 01 SN 50158@-* \| 02 SN 70279@-* \| 03 SN - \| 04 SN -
FGE15N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR TORQUE DRIVE)	106	1	RP: N \| 01 SN 08026@-* \| 02 SN 58078@-* \| 03 SN 78015@-* \| 04 SN 28029@-*
FD20N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FD25N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FG18N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FG20CN	CONTROL SYSTEM	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FD20N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FGE18ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FGE 15ZN, 18ZN)	106	1	RP: N \| 01 SN 58034@-* \| 02 SN 78051@-* \| 03 SN - \| 04 SN -
FD20CN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FD25N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FG20ZN	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FG15ZN,FG18ZN)	106	1	RP: N \| 01 SN 50158@-* \| 02 SN 70279@-* \| 03 SN - \| 04 SN -
FGE18ZN	DRIVING CONTROL	01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FGE20ZN,25ZN)	106	1	RP: N \| 01 SN - \| 02 SN - \| 03 SN 08019@-* \| 04 SN 58090@-*
FD15N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FD30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (FOR TORQUE DRIVE)	106	1	RP: N \| 01 SN 31362-* \| 02 SN 50288-*
FD30N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE)	107	1
FD15N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3
FG25ZN	DRIVING CONTROL	01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FG20ZN,FG25ZN)	106	1	RP: N \| 01 SN - \| 02 SN - \| 03 SN 00040@-* \| 04 SN 50496@-*
FG35N	Driving Control	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FGC15N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING SYSTEM (PART-1)	107	1
FG15N	DRIVING CONTROL	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1)	106	1	RP: 3

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FD15N, FD18N, FD20CN, FG10N, FG15N, FG18N, FG20CN, FD10N, FG30N, FD35AN, FD30N, FG35AN, FD35N, FGC28N, FGE35AN, FGC30N, FGC33N, FGE30N, FG35N, FGC20CN, FGC15N, FGC18N, FGC25N, FGC20N, FGE18ZN, FGC20N-HO, FD25N, FGE20CN, FGE25ZN, FGE20ZN, FD20N, FG25N, FGE25N, FGC25N-HO, FG20N, FGE18N, FG20ZN, FG25ZN, FGE15N, FG18ZN, FGE20N, FG15ZN, FGE10N, FGE15ZN
Номер по каталогу	91A5210300
Бренд	Mitsubishi
Система Mitsubishi	DRIVING CONTROL, CONTROL SYSTEM
Узел Mitsubishi	01-51-01 01-51-01 DRIVING COMMON PARTS (PART-1), 01-51-01 01-51-01 DRIVING SYSTEM (PART-1), 01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FGE 15ZN, 18ZN), 01-51-01 01-51-01 DRIVING SYSTEM (FOR TORQUE DRIVE), 01-51-01 01-51-01 DRIVING COMMON PARTS (FOR TORQUE DRIVE), 01-51-01 01-51-01 DRIVING SYSTEM, 01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FGE20ZN,25ZN), 01-51-01 01-51-01 DRIVING COMMON PARTS (FOR FG15ZN,FG18ZN), 01-51-04 01-51-04 DRIVING COMMON PARTS (FOR FG20ZN,FG25ZN)
Позиция на схеме Mitsubishi	107, 106
Название на русском	Пружина тормоза return
