Шланг nylon l=1700 3v m l h 3 7m Mitsubishi 0574825340 (HOSE,NYLON L=1700 3V M.L.H 3.7M)

Шланг nylon l=1700 3v m l h 3 7m Mitsubishi 0574825340 (HOSE,NYLON L=1700 3V M.L.H 3.7M)

Шланг nylon l=1700 3v m l h 3 7m, 0574825340 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FG30N, FD30N, FGC20K, FD35N, FD60, FD70, FG35N, FGC25K, FGC15K, FGC18K, FD50, FG45K, FGC30, FGC20, FGC15, FG50K, FD45K, FG40K, FGC25N, FDC25, FDC30, FD40K, FK40KL, FG40KL, FGC20N, FGC10, FD50K, FGC25, FDC20, FBC18K, FBC15K, FGC30K, FGC20N-HO, FD25N, FD20N, FG25N, FGC25N-HO, FG20N
Номер по каталогу	0574825340
Бренд	Mitsubishi
Система Mitsubishi	TRIPLEX MAST, DUPLEX MAST, FORK POSITIONER, HYDRAULIC LINE, SIMPLEX MAST, INTERNAL HOSING
Узел Mitsubishi	03-27 03-27 FORK POSITIONER 3EP70AV, 03-26 03-26 FORK POSITIONER 3FP60AV, MAST MAST PIPING KIT MAST MODELS 3A15B20-60 3 & 4-WAY LIFT BRACKET & MAST WELDMENTS AND 3-WAY SIMPLEX, 04-41-01 04-41-01 MAST PIPING KIT 3-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60, 04-61-02 04-61-02 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70), 04-28 04-28 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70), 04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A), MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1), 04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40), 04-22-04 04-22-04 HOSE INTERNAL HOSING (4V) (FOR 4F35C28-40), INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40), HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A2*, MAST MAST PIPING KIT 4-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60, MAST MAST PIPING KIT MAST MODELS 3A15B20-60 4-WAY SIMPLEX, 04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40), 04-21-04 04-21-04 HOSE INTERNAL HOSING (3V) (FOR 4F35C28-40), 04-62-06 04-62-06 INTERNAL HOSING (4 VALVES) (5C25C37-70), 04-42-03 04-42-03 INTERNAL HOSING (4 VALVES) (4V30B,4V35B), 04-41-0104 04-41-0104 INTERNAL HOSING (3 VALVES) (4V30B20-60), 04-41-03 04-41-03 INTERNAL HOSING (3 VALVES) (4V30B,4V35B), 04-42-0104 04-42-0104 INTERNAL HOSING (4 VALVES) (4V30B20-60)

Все характеристики

По запросу

Артикул: mt002940-0574825340

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 0574825340

Название: HOSE,NYLON L=1700 3V M.L.H 3.7M

Название на русском: Шланг nylon l=1700 3v m l h 3 7m

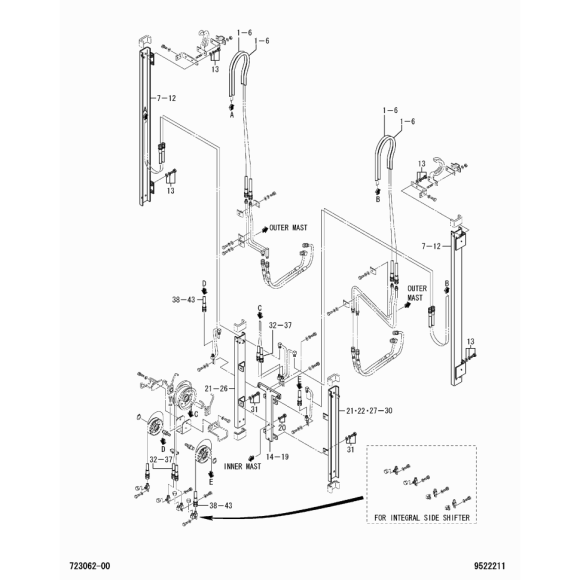

Основная схема: 04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40). Номер на картинке: 36.

Применяемость: найдено 81 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD25N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	36	2
FG30N	Duplex Mast	04-22-04 04-22-04 HOSE INTERNAL HOSING (4V) (FOR 4F35C28-40)	32	2	01 SN -
FD60	FORK POSITIONER	03-27 03-27 FORK POSITIONER 3EP70AV	14	1
FD70	FORK POSITIONER	03-27 03-27 FORK POSITIONER 3EP70AV	14	1
FBC15K	INTERNAL HOSING	MAST MAST PIPING KIT MAST MODELS 3A15B20-60 3 & 4-WAY LIFT BRACKET & MAST WELDMENTS AND 3-WAY SIMPLEX	31	2	M.L.H. 79 in(2000mm) (3A15B 2G15A) (3A15B 2G15A) (3A15B 2G15A)
FG20N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FGC20K	INTERNAL HOSING	04-41-01 04-41-01 MAST PIPING KIT 3-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60	31	2	M.L.H. 79 in(2000mm) \| 03 SN - \| 04 SN - \| 05 SN -
FG25N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	32	2
FGC15	INTERNAL HOSING	INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40)	11	2	2B15A,2B25A
FD30N	Duplex Mast	04-21-04 04-21-04 HOSE INTERNAL HOSING (3V) (FOR 4F35C28-40)	32	2	01 SN -
FGC30K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1)	30	2	M.L.H. 146 in(3700mm) 3C25C37-70
FDC30	HYDRAULIC LINE	HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A2*	11	2	2B15A,2B25A
FD25N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FG20N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	32	2
FGC20K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60	25	4	M.L.H. 79 in(2000mm) 3A15B20-60
FG20N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	8	2
FGC20N	TRIPLEX MAST	04-62-06 04-62-06 INTERNAL HOSING (4 VALVES) (5C25C37-70)	19	2
FD20N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FG40KL	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FGC25	INTERNAL HOSING	INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40)	11	2	2B15A,2B25A
FGC20N	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70)	45	2
FD45K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FD50K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FG30N	Duplex Mast	04-21-04 04-21-04 HOSE INTERNAL HOSING (3V) (FOR 4F35C28-40)	32	2	01 SN -
FGC18K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60	25	4	M.L.H. 79 in(2000mm) 3A15B20-60
FD20N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	8	2
FD30N	Duplex Mast	04-22-04 04-22-04 HOSE INTERNAL HOSING (4V) (FOR 4F35C28-40)	32	2	01 SN -
FGC20K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1)	30	2	M.L.H. 146 in(3700mm) 3C25C37-70
FGC15K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60	25	4	M.L.H. 79 in(2000mm) 3A15B20-60
FD50	FORK POSITIONER	03-26 03-26 FORK POSITIONER 3FP60AV	13	1
FD35N	SIMPLEX MAST	04-42-03 04-42-03 INTERNAL HOSING (4 VALVES) (4V30B,4V35B)	1	4	02 SN -
FK40KL	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FD25N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	32	2
FD70	FORK POSITIONER	03-26 03-26 FORK POSITIONER 3FP60AV	13	1
FD35N	SIMPLEX MAST	04-41-0104 04-41-0104 INTERNAL HOSING (3 VALVES) (4V30B20-60)	1	2	02 SN -
FG35N	SIMPLEX MAST	04-41-0104 04-41-0104 INTERNAL HOSING (3 VALVES) (4V30B20-60)	1	2	02 SN -
FGC25K	INTERNAL HOSING	04-41-01 04-41-01 MAST PIPING KIT 3-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60	31	2	M.L.H. 79 in(2000mm) \| 03 SN - \| 04 SN - \| 05 SN -
FBC18K	INTERNAL HOSING	MAST MAST PIPING KIT MAST MODELS 3A15B20-60 4-WAY SIMPLEX	25	4	M.L.H. 79 in(2000mm) (3A15B 2G15A) (3A15B 2G15A) (3A15B 2G15A)
FD20N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FD35N	SIMPLEX MAST	04-41-03 04-41-03 INTERNAL HOSING (3 VALVES) (4V30B,4V35B)	1	2	02 SN -
FGC25N-HO	TRIPLEX MAST	04-28 04-28 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70)	45	2
FD35N	SIMPLEX MAST	04-41-03 04-41-03 INTERNAL HOSING (3 VALVES) (4V30B,4V35B)	1	2	02 SN -
FD20N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	8	2
FGC25K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1)	30	2	M.L.H. 146 in(3700mm) 3C25C37-70
FD35N	SIMPLEX MAST	04-42-0104 04-42-0104 INTERNAL HOSING (4 VALVES) (4V30B20-60)	1	4	02 SN -
FGC30K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60	25	4	M.L.H. 79 in(2000mm) 3A15B20-60
FD60	FORK POSITIONER	03-26 03-26 FORK POSITIONER 3FP60AV	13	1
FGC30K	INTERNAL HOSING	04-41-01 04-41-01 MAST PIPING KIT 3-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60	31	2	M.L.H. 79 in(2000mm) \| 03 SN - \| 04 SN - \| 05 SN -
FG20N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	36	2
FGC18K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1)	30	2	M.L.H. 146 in(3700mm) 3C25C37-70
FG25N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	36	2
FD35N	SIMPLEX MAST	04-42-03 04-42-03 INTERNAL HOSING (4 VALVES) (4V30B,4V35B)	1	4	02 SN -
FD20N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	36	2
FGC25N	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70)	45	2
FD20N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	32	2
FGC25N	TRIPLEX MAST	04-62-06 04-62-06 INTERNAL HOSING (4 VALVES) (5C25C37-70)	19	2
FG40K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FGC20N-HO	TRIPLEX MAST	04-28 04-28 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70)	45	2
FGC30	INTERNAL HOSING	INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40)	11	2	2B15A,2B25A
FDC25	HYDRAULIC LINE	HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A2*	11	2	2B15A,2B25A
FG35N	SIMPLEX MAST	04-41-03 04-41-03 INTERNAL HOSING (3 VALVES) (4V30B,4V35B)	1	2	02 SN -
FG25N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FGC25K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60	25	4	M.L.H. 79 in(2000mm) 3A15B20-60
FG35N	SIMPLEX MAST	04-42-03 04-42-03 INTERNAL HOSING (4 VALVES) (4V30B,4V35B)	1	4	02 SN -
FG35N	SIMPLEX MAST	04-41-03 04-41-03 INTERNAL HOSING (3 VALVES) (4V30B,4V35B)	1	2	02 SN -
FD25N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	8	2
FD25N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FGC20	INTERNAL HOSING	INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40)	11	2	2B15A,2B25A
FGC10	INTERNAL HOSING	INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40)	11	2	2B15A,2B25A
FG35N	SIMPLEX MAST	04-42-03 04-42-03 INTERNAL HOSING (4 VALVES) (4V30B,4V35B)	1	4	02 SN -
FDC20	HYDRAULIC LINE	HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A2*	11	2	2B15A,2B25A
FBC18K	INTERNAL HOSING	MAST MAST PIPING KIT MAST MODELS 3A15B20-60 3 & 4-WAY LIFT BRACKET & MAST WELDMENTS AND 3-WAY SIMPLEX	31	2	M.L.H. 79 in(2000mm) (3A15B 2G15A) (3A15B 2G15A) (3A15B 2G15A)
FGC15K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1)	30	2	M.L.H. 146 in(3700mm) 3C25C37-70
FD25N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	8	2
FG45K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FBC15K	INTERNAL HOSING	MAST MAST PIPING KIT MAST MODELS 3A15B20-60 4-WAY SIMPLEX	25	4	M.L.H. 79 in(2000mm) (3A15B 2G15A) (3A15B 2G15A) (3A15B 2G15A)
FD40K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FG25N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	8	2
FG35N	SIMPLEX MAST	04-42-0104 04-42-0104 INTERNAL HOSING (4 VALVES) (4V30B20-60)	1	4	02 SN -
FD50	FORK POSITIONER	03-27 03-27 FORK POSITIONER 3EP70AV	14	1

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FG30N, FD30N, FGC20K, FD35N, FD60, FD70, FG35N, FGC25K, FGC15K, FGC18K, FD50, FG45K, FGC30, FGC20, FGC15, FG50K, FD45K, FG40K, FGC25N, FDC25, FDC30, FD40K, FK40KL, FG40KL, FGC20N, FGC10, FD50K, FGC25, FDC20, FBC18K, FBC15K, FGC30K, FGC20N-HO, FD25N, FD20N, FG25N, FGC25N-HO, FG20N
Номер по каталогу	0574825340
Бренд	Mitsubishi
Система Mitsubishi	TRIPLEX MAST, DUPLEX MAST, FORK POSITIONER, HYDRAULIC LINE, SIMPLEX MAST, INTERNAL HOSING
Узел Mitsubishi	03-27 03-27 FORK POSITIONER 3EP70AV, 03-26 03-26 FORK POSITIONER 3FP60AV, MAST MAST PIPING KIT MAST MODELS 3A15B20-60 3 & 4-WAY LIFT BRACKET & MAST WELDMENTS AND 3-WAY SIMPLEX, 04-41-01 04-41-01 MAST PIPING KIT 3-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60, 04-61-02 04-61-02 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70), 04-28 04-28 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70), 04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A), MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1), 04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40), 04-22-04 04-22-04 HOSE INTERNAL HOSING (4V) (FOR 4F35C28-40), INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40), HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A2*, MAST MAST PIPING KIT 4-WAY (FOR SIMPLEX MAST) MAST MODELS: 3A15B20-60; 3A25B20-60; 3A30B20-60, MAST MAST PIPING KIT MAST MODELS 3A15B20-60 4-WAY SIMPLEX, 04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40), 04-21-04 04-21-04 HOSE INTERNAL HOSING (3V) (FOR 4F35C28-40), 04-62-06 04-62-06 INTERNAL HOSING (4 VALVES) (5C25C37-70), 04-42-03 04-42-03 INTERNAL HOSING (4 VALVES) (4V30B,4V35B), 04-41-0104 04-41-0104 INTERNAL HOSING (3 VALVES) (4V30B20-60), 04-41-03 04-41-03 INTERNAL HOSING (3 VALVES) (4V30B,4V35B), 04-42-0104 04-42-0104 INTERNAL HOSING (4 VALVES) (4V30B20-60)
Позиция на схеме Mitsubishi	19, 25, 14, 30, 13, 8, 11, 1, 9, 31, 32, 36, 37, 45
Название на русском	Шланг nylon l=1700 3v m l h 3 7m
