Шланг nylon l=1800 3v m l h 4 0m Mitsubishi 0574825360 (HOSE,NYLON L=1800 3V M.L.H 4.0M)

Шланг nylon l=1800 3v m l h 4 0m Mitsubishi 0574825360 (HOSE,NYLON L=1800 3V M.L.H 4.0M)

Шланг nylon l=1800 3v m l h 4 0m, 0574825360 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FG10, FGC20K, FD35N, FG20, FG25, FG15, FG35N, FGC25K, FBC35N, FBC55N, FBC45N, FGC15K, FG18, FBC40N, FD25, FGC18K, FGC40K STC-G, FG45K, FGC30, FGC20, FGC15, FGC35K-LPG, FG50K, FD45K, FG40K, FGC60K-G, FGC25N, FDC25, FDC30, FD40K, FK40KL, FGC40K(STC)-LPG, FGC60K-LPG, FG40KL, FGC70K (STC) LPG, FGC70K-G, FGC20N, FGC10, FGC70K STC-G, FD50K, FGC40K-G, FGC35K-G, FGC25, FDC20, FGC70K STC, FGC70K, FGC60K, FGC30K, FGC20N-HO, FD25N, FD20N, FG25N, FGC25N-HO, FG20N, 1.5T: FG15, FD15, 1.8T: FG18, FD18, 2.5T: FG25, FD25, 2.0T: FG20, FD20, 3.0T: FG30, FD30, 3.5T: FG35, FD35
Номер по каталогу	0574825360
Бренд	Mitsubishi
Система Mitsubishi	TRIPLEX MAST, DUPLEX MAST, HYDRAULIC LINE, INTERNAL HOSING, MAST MODELS: C40A47-55, CENTER PULLEY PIPING
Узел Mitsubishi	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F30C,4F35C), 02-07-05 02-07-05 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M35B, 04-61-02 04-61-02 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70), 04-28 04-28 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70), 04-62-03 04-62-03 MAST PIPING KIT (C70A, 4-WAY) (R.H. HIGH, L.H. STD), 04-62-03 04-62-03 MAST PIPING KIT (C40A, 4-WAY) (R.H.:HIGH, L.H.:STD), 04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW), 04-61-02 04-61-02 MAST PIPING KIT (C40A, 4-WAY) (STD FLOW), 04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD), 33 33 MAST PIPING KIT 4-WAY TRIPLEX (STD 3/8 IN), 41 41 MAST PIPING KIT 3-WAY, 4-WAY TRIPLEX (HIGH 1/2 IN, STD 3/8 IN), 04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A), MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1), 04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40), CENTER CENTER PULLEY TYPE 3 SPOOLS (PART-2) 3M15A37-60, 3M25A37-60, 3M30A37-60, M35A37-60, INTERNAL INTERNAL HOSING TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A37-60, 2C25A37-60, 2C30A37-60), HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A3, 02-07-02 02-07-02 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M15B, INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40), HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A2, 04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F30C,4F35C), 04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40), 04-22-04 04-22-04 INTERNAL HOSING (4 VALVES) (4F30C28-40), 04-21-04 04-21-04 INTERNAL HOSING (3 VALVES) (4F30C28-40), 04-62-06 04-62-06 INTERNAL HOSING (4 VALVES) (5C25C37-70), 04-62-03 04-62-03 INTERNAL HOSING (4 VALVES) (4M30C,4M35C), 04-62-04 04-62-04 INTERNAL HOSING (4 VALVES) (4M30C37-70)

Все характеристики

По запросу

Артикул: mt002941-0574825360

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 0574825360

Название: HOSE,NYLON L=1800 3V M.L.H 4.0M

Название на русском: Шланг nylon l=1800 3v m l h 4 0m

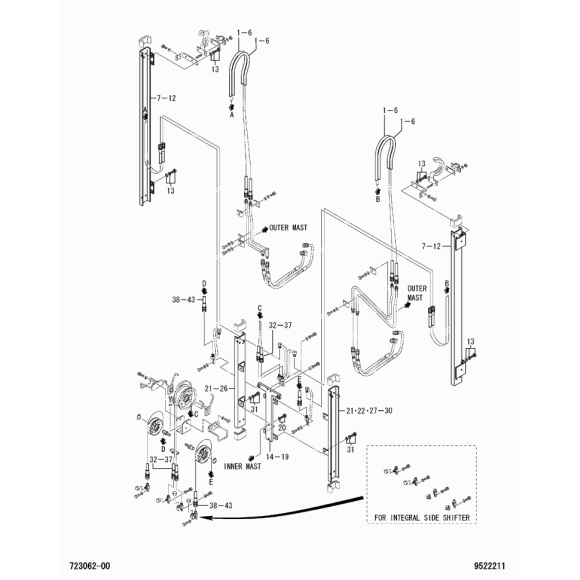

Основная схема: 04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40). Номер на картинке: 37.

Применяемость: найдено 166 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD25N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	37	2
2.5T: FG25, FD25	CENTER PULLEY PIPING	02-07-05 02-07-05 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M35B	24	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN -
FGC70K-G	TRIPLEX MAST	04-62-03 04-62-03 MAST PIPING KIT (C70A, 4-WAY) (R.H. HIGH, L.H. STD)	36	1
FGC70K-G	TRIPLEX MAST	04-62-03 04-62-03 MAST PIPING KIT (C70A, 4-WAY) (R.H. HIGH, L.H. STD)	36	1
FGC40K(STC)-LPG	TRIPLEX MAST	04-62-03 04-62-03 MAST PIPING KIT (C40A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1	CNG: C \| 01 SN -2001-01 \| 02 SN -2001-01 \| 03 SN -2001-01 \| 04 SN -2001-01 \| 05 SN *-2001-01
FG20N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FGC60K	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	35	1
FGC60K	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	35	1
3.5T: FG35, FD35	CENTER PULLEY PIPING	02-07-02 02-07-02 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M15B	24	2	03 SN - \| 04 SN - \| 05 SN - \| 06 SN -
FG25N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	33	2
FGC70K STC	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	43	1
FGC70K STC	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	43	1
FGC15	INTERNAL HOSING	INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40)	11	2	2B30A
FG35N	TRIPLEX MAST	04-62-03 04-62-03 INTERNAL HOSING (4 VALVES) (4M30C,4M35C)	3	2	02 SN -
FD35N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F30C,4F35C)	12	2	02 SN -
FGC40K-G	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C40A, 4-WAY) (STD FLOW)	43	1	CNG: C \| 01 SN -2001-01 \| 02 SN -2001-01 \| 03 SN -2001-01 \| 04 SN -2001-01 \| 05 SN *-2001-01
FGC70K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1
FGC70K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1
FD35N	DUPLEX MAST	04-22-04 04-22-04 INTERNAL HOSING (4 VALVES) (4F30C28-40)	42	2	02 SN -
FGC70K-G	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	43	1
FGC70K-G	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	43	1
3.0T: FG30, FD30	CENTER PULLEY PIPING	02-07-02 02-07-02 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M15B	24	2	03 SN - \| 04 SN - \| 05 SN - \| 06 SN -
2.0T: FG20, FD20	CENTER PULLEY PIPING	02-07-02 02-07-02 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M15B	24	2	03 SN - \| 04 SN - \| 05 SN - \| 06 SN -
FGC70K	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	35	1
FGC70K	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	35	1
FGC30K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1)	30	2	M.L.H. 157 in(4000mm) 3C25C37-70
FDC30	HYDRAULIC LINE	HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A2*	11	2	2B30A
FG35N	DUPLEX MAST	04-22-04 04-22-04 INTERNAL HOSING (4 VALVES) (4F30C28-40)	42	2	02 SN -
FD25N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FG20N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	33	2
FG20N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	8	2
FGC20N	TRIPLEX MAST	04-62-06 04-62-06 INTERNAL HOSING (4 VALVES) (5C25C37-70)	20	2
FD20N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40)	9	2
FG40KL	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	22	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FG40KL	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN -2005-05 \| 04 SN -*
FG40KL	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FG18	INTERNAL HOSING	CENTER CENTER PULLEY TYPE 3 SPOOLS (PART-2) 3M15A37-60, 3M25A37-60, 3M30A37-60, M35A37-60	2	2	3M30A
FGC25	INTERNAL HOSING	INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40)	11	2	2B30A
FGC20N	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70)	45	2
FG35N	DUPLEX MAST	04-21-04 04-21-04 INTERNAL HOSING (3 VALVES) (4F30C28-40)	34	2	02 SN -
FGC60K	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	43	1
FGC60K	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	43	1
FD45K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	22	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FD45K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN -2005-05 \| 04 SN -*
FD45K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FD50K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	22	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FD50K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN -2005-05 \| 04 SN -*
FD50K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FD35N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F30C,4F35C)	5	2	02 SN -
FGC20	INTERNAL HOSING	INTERNAL INTERNAL HOSING TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A37-60, 2C25A37-60, 2C30A37-60)	2	2	2C30A
FD25	INTERNAL HOSING	CENTER CENTER PULLEY TYPE 3 SPOOLS (PART-2) 3M15A37-60, 3M25A37-60, 3M30A37-60, M35A37-60	2	2	3M30A
FGC70K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1
FGC70K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1
1.8T: FG18, FD18	CENTER PULLEY PIPING	02-07-05 02-07-05 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M35B	24	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN -
FD20N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	8	2
3.0T: FG30, FD30	CENTER PULLEY PIPING	02-07-05 02-07-05 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M35B	24	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN -
FGC70K (STC) LPG	TRIPLEX MAST	04-62-03 04-62-03 MAST PIPING KIT (C70A, 4-WAY) (R.H. HIGH, L.H. STD)	36	1
FGC70K (STC) LPG	TRIPLEX MAST	04-62-03 04-62-03 MAST PIPING KIT (C70A, 4-WAY) (R.H. HIGH, L.H. STD)	36	1
FGC20K	INTERNAL HOSING	MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1)	30	2	M.L.H. 157 in(4000mm) 3C25C37-70
FDC30	HYDRAULIC LINE	HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A3*	2	2	2C30A
FK40KL	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	22	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FK40KL	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN -2005-05 \| 04 SN -*
FK40KL	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A)	37	1	CNG: C \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN *-2005-05
FGC60K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1
FGC60K	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1
FD25N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40)	33	2
FGC70K STC	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1
FGC70K STC	TRIPLEX MAST	04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD)	36	1
FGC25	INTERNAL HOSING	INTERNAL INTERNAL HOSING TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A37-60, 2C25A37-60, 2C30A37-60)	2	2	2C30A
FBC40N	MAST MODELS: C40A47-55	33 33 MAST PIPING KIT 4-WAY TRIPLEX (STD 3/8 IN)	23	1	C40A
FG35N	DUPLEX MAST	04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F30C,4F35C)	5	2	02 SN -
1.5T: FG15, FD15	CENTER PULLEY PIPING	02-07-05 02-07-05 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M35B	24	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN -
FGC35K-G	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C40A, 4-WAY) (STD FLOW)	43	1	CNG: C \| 01 SN -2001-01 \| 02 SN -2001-01 \| 03 SN -2001-01 \| 04 SN -2001-01 \| 05 SN *-2001-01
FG35N	DUPLEX MAST	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F30C,4F35C)	12	2	02 SN -
FDC25	HYDRAULIC LINE	HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A3*	2	2	2C30A
FDC20	HYDRAULIC LINE	HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A3*	2	2	2C30A
FGC60K-LPG	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	43	1
FGC60K-LPG	TRIPLEX MAST	04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW)	43	1
FD35N	TRIPLEX MAST	04-62-03 04-62-03 INTERNAL HOSING (4 VALVES) (4M30C,4M35C)	3	2	02 SN -
FG10	INTERNAL HOSING	CENTER CENTER PULLEY TYPE 3 SPOOLS (PART-2) 3M15A37-60, 3M25A37-60, 3M30A37-60, M35A37-60	2	2	3M30A

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FG10, FGC20K, FD35N, FG20, FG25, FG15, FG35N, FGC25K, FBC35N, FBC55N, FBC45N, FGC15K, FG18, FBC40N, FD25, FGC18K, FGC40K STC-G, FG45K, FGC30, FGC20, FGC15, FGC35K-LPG, FG50K, FD45K, FG40K, FGC60K-G, FGC25N, FDC25, FDC30, FD40K, FK40KL, FGC40K(STC)-LPG, FGC60K-LPG, FG40KL, FGC70K (STC) LPG, FGC70K-G, FGC20N, FGC10, FGC70K STC-G, FD50K, FGC40K-G, FGC35K-G, FGC25, FDC20, FGC70K STC, FGC70K, FGC60K, FGC30K, FGC20N-HO, FD25N, FD20N, FG25N, FGC25N-HO, FG20N, 1.5T: FG15, FD15, 1.8T: FG18, FD18, 2.5T: FG25, FD25, 2.0T: FG20, FD20, 3.0T: FG30, FD30, 3.5T: FG35, FD35
Номер по каталогу	0574825360
Бренд	Mitsubishi
Система Mitsubishi	TRIPLEX MAST, DUPLEX MAST, HYDRAULIC LINE, INTERNAL HOSING, MAST MODELS: C40A47-55, CENTER PULLEY PIPING
Узел Mitsubishi	04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F30C,4F35C), 02-07-05 02-07-05 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M35B, 04-61-02 04-61-02 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70), 04-28 04-28 MAST PIPING KIT (4-WAY TRIPLEX) (5C25C37-70), 04-62-03 04-62-03 MAST PIPING KIT (C70A, 4-WAY) (R.H. HIGH, L.H. STD), 04-62-03 04-62-03 MAST PIPING KIT (C40A, 4-WAY) (R.H.:HIGH, L.H.:STD), 04-61-02 04-61-02 MAST PIPING KIT (C70A, 4-WAY) (STD FLOW), 04-61-02 04-61-02 MAST PIPING KIT (C40A, 4-WAY) (STD FLOW), 04-61-05 04-61-05 MAST PIPING KIT (C70A, 4-WAY) (R.H.:HIGH, L.H.:STD), 33 33 MAST PIPING KIT 4-WAY TRIPLEX (STD 3/8 IN), 41 41 MAST PIPING KIT 3-WAY, 4-WAY TRIPLEX (HIGH 1/2 IN, STD 3/8 IN), 04-61-05 04-61-05 MAST PIPING 4-WAY (STD 3/8in) (4M40A,4M45A,4M50A), MAST MAST PIPING KIT 4-WAY (FOR TRIPLEX MAST) MAST MODELS: 3C15C37-70; 3C25C37-70; 3C30C37-70 (PART-1), 04-22-03 04-22-03 INTERNAL HOSING (4 VALVES) (4F25C28-40), CENTER CENTER PULLEY TYPE 3 SPOOLS (PART-2) 3M15A37-60, 3M25A37-60, 3M30A37-60, M35A37-60, INTERNAL INTERNAL HOSING TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A37-60, 2C25A37-60, 2C30A37-60), HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2C15A3, 02-07-02 02-07-02 CENTER PULLEY PIPING (3, 4 VALVES) MODEL 4M15B, INTERNAL INTERNAL HOSING CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A27-40, 2B25A27-40, 2B30A27-40), HYDRAULIC HYDRAULIC LINE CENTER PULLEY TYPE 3 SPOOLS (PART-2) (FOR MAST MODEL 2B15A2, 04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F30C,4F35C), 04-21-03 04-21-03 INTERNAL HOSING (3 VALVES) (4F25C28-40), 04-22-04 04-22-04 INTERNAL HOSING (4 VALVES) (4F30C28-40), 04-21-04 04-21-04 INTERNAL HOSING (3 VALVES) (4F30C28-40), 04-62-06 04-62-06 INTERNAL HOSING (4 VALVES) (5C25C37-70), 04-62-03 04-62-03 INTERNAL HOSING (4 VALVES) (4M30C,4M35C), 04-62-04 04-62-04 INTERNAL HOSING (4 VALVES) (4M30C37-70)
Позиция на схеме Mitsubishi	23, 3, 30, 2, 33, 5, 22, 34, 20, 8, 11, 12, 9, 24, 35, 36, 37, 43, 45, 42
Название на русском	Шланг nylon l=1800 3v m l h 4 0m

Шланг nylon l=1800 3v m l h 4 0m Mitsubishi 0574825360 (HOSE,NYLON L=1800 3V M.L.H 4.0M) отзывы
