Клапан down safety Mitsubishi 31830-67321 (Valve, down safety)

Клапан down safety Mitsubishi 31830-67321 (Valve, down safety)

Клапан down safety, 31830-67321 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FB15TCA, FB13TCA, FB18TCA, FB20TCA, FB15TCB, FB18CA, FB25CA, FB28CA, FB20CA, FB14CA, FB30CA1(J), FB15CA, FB18(H)CA1(J), FB30CA, FB25(H)CA1(J), FB20CA1, FB10CA, FB14(H)CA1(J), FB25CA1, FB20TCB, FB20TBCB, FB10(H)CA1(J), FB18TBCB, FB18TCB, FB20(H)CA1(J), FB16TCB, FB16TBCB, FB15(H)CA1(J), FB28CA1(J), FB13TCB, FB10CA1, FB18CA1, FB14CA1, FB15CA1
Номер по каталогу	31830-67321
Бренд	Mitsubishi
Система Mitsubishi	DUPLEX, SIMPLEX, TRIPLEX, DUPLEX MAST
Узел Mitsubishi	02-07-11 02-07-11 2259 MAST PIPING[Fm], 02-05-17 02-05-17 2059B MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA[CS/FCS/RP/DRP], 02-07-11 02-07-11 2259 MAST PIPING [Fm], 02-05-13 02-05-13 2059B MAST PIPING [Pm] FB20/25CA1(J),[Std:MLH3500-5000],[CS/FCS/RP/DRP], 02-05-18 02-05-18 2059C MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLH3000/3300], 02-07-20 02-07-20 2259 MAST PIPING[Fm], 02-06-19 02-06-19 2158D MAST PIPING[Mm] 20TCA[Std-MLH>4000], 02-07-04 02-07-04 22560 MAST PIPING[Fm], 02-06-22 02-06-22 2158G MAST PIPING[Mm] [CS/RP], 02-07-15 02-07-15 2259 MAST PIPING[Fm], 02-05-07 02-05-07 2059 MAST PIPING [Pm], 02-07-06 02-07-06 22560 MAST PIPING [Fm], Fig.22560 Fig.22560 MAST PIPING [Fm], 02-07-18 02-07-18 2259 MAST PIPING[Fm], 02-06-18 02-06-18 2158C MAST PIPING[Mm] 20TCA[Std-MLH<=4000], 02-07-15 02-07-15 2259 MAST PIPING [Fm], 02-06-04 02-06-04 21560 MAST PIPING[Mm] 1, 02-05-19 02-05-19 2059D MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLHGëº3500],[CS/FCS/RP/DRP] 11-P-2402, 02-06-11 02-06-11 2158 MAST PIPING[Mm], 02-05-03 02-05-03 20560 MAST PIPING[Pm], 02-06-26 02-06-26 2159C MAST PIPING[Mm] 2 [Std], 20CA/25CA(241AC8866-), 02-06-25 02-06-25 2159B MAST PIPING[Mm] 2 [CS/FCS/RP/DRP], 02-05-10 02-05-10 2059A MAST PIPING[Pm] FB(EP)13-18TCA(Std-MLH<=5000), 20TCA(Std-MLH<=4000), 02-05-16 02-05-16 2059A MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA, [Std], 02-05-12 02-05-12 2059A MAST PIPING [Pm] FB20/25CA1(J),[Std:MLH3000/3300], 02-06-24 02-06-24 2159A MAST PIPING[Mm] 2 [Std],20CA/25CA-241AC8865),28CA/30CA, 02-06-19 02-06-19 2159A MAST PIPING [Mm]2 FB20/25CA1(J), 02-06-20 02-06-20 2159B MAST PIPING [Mm]2 FB20/25CA1(J),CS/FCS/RP/DRP, 02-05-14 02-05-14 2059C MAST PIPING [Pm] FB28/30CA1(J)

Все характеристики

По запросу

Артикул: mt000391-31830-67321

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 31830-67321

Название: Valve, down safety

Название на русском: Клапан down safety

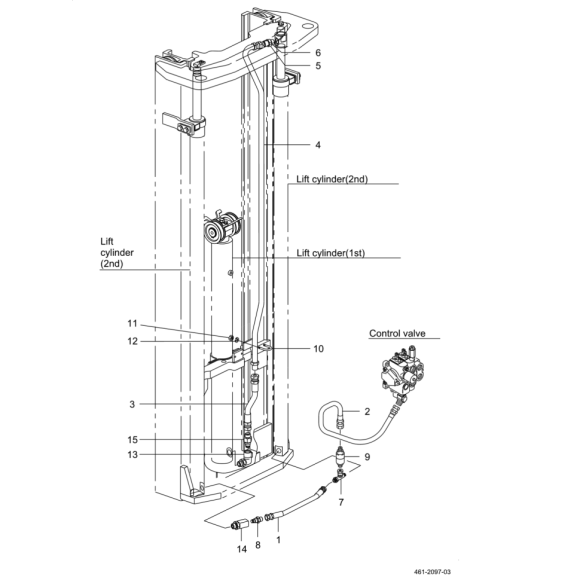

Основная схема: 02-07-11 02-07-11 2259 MAST PIPING[Fm]. Номер на картинке: 8.

Применяемость: найдено 107 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FB14CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING[Fm]	8	1
FB20CA	SIMPLEX	02-05-17 02-05-17 2059B MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA[CS/FCS/RP/DRP]	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB13TCB	DUPLEX	02-07-06 02-07-06 22560 MAST PIPING [Fm]	8	1
FB20CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING [Fm]	9	1
FB30CA	SIMPLEX	02-05-17 02-05-17 2059B MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA[CS/FCS/RP/DRP]	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB15TCB	DUPLEX	02-07-06 02-07-06 22560 MAST PIPING [Fm]	8	1
FB28CA1(J)	SIMPLEX	02-05-13 02-05-13 2059B MAST PIPING [Pm] FB20/25CA1(J),[Std:MLH3500-5000],[CS/FCS/RP/DRP]	4	1	03 SN - \| 04 SN -
FB28CA	SIMPLEX	02-05-18 02-05-18 2059C MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLH3000/3300]	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN - \| 04 SN -
FB20CA	DUPLEX	02-07-20 02-07-20 2259 MAST PIPING[Fm]	11-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB18TCB	DUPLEX MAST	Fig.22560 Fig.22560 MAST PIPING [Fm]	8
FB18TCA	TRIPLEX	02-06-19 02-06-19 2158D MAST PIPING[Mm] 20TCA[Std-MLH>4000]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB30CA	TRIPLEX	02-06-26 02-06-26 2159C MAST PIPING[Mm] 2 [Std], 20CA/25CA(241AC8866-)	8-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB28CA	DUPLEX	02-07-20 02-07-20 2259 MAST PIPING[Fm]	11-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB25CA	DUPLEX	02-07-20 02-07-20 2259 MAST PIPING[Fm]	11-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB25CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	8	1
FB25CA	TRIPLEX	02-06-25 02-06-25 2159B MAST PIPING[Mm] 2 [CS/FCS/RP/DRP]	7-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB15CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	8	1
FB16TCB	DUPLEX MAST	Fig.22560 Fig.22560 MAST PIPING [Fm]	8
FB10CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING[Fm]	8	1
FB25CA	SIMPLEX	02-05-19 02-05-19 2059D MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLHGëº3500],[CS/FCS/RP/DRP] 11-P-2402	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN - \| 04 SN -
FB18TCA	TRIPLEX	02-06-22 02-06-22 2158G MAST PIPING[Mm] [CS/RP]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB18CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	8	1
FB18CA	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING[Fm]	11-1	1	RP: 3 \| 01 SN 221E03156-* \| 02 SN 221E03156-* \| 03 SN 221E03156-* \| 04 SN 221E03156-*
FB14(H)CA1(J)	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING [Fm]	9	1
FB28CA	SIMPLEX	02-05-17 02-05-17 2059B MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA[CS/FCS/RP/DRP]	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB20TCA	TRIPLEX	02-06-22 02-06-22 2158G MAST PIPING[Mm] [CS/RP]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB25CA1	SIMPLEX	02-05-07 02-05-07 2059 MAST PIPING [Pm]	4	1
FB15TCA	DUPLEX	02-07-18 02-07-18 2259 MAST PIPING[Fm]	4-1	1	RP: 3 \| 01 SN 215AF0612-* \| 02 SN 216AF1790-* \| 03 SN 216AF1790-* \| 04 SN 288AD0330-*
FB14CA	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING[Fm]	11-1	1	RP: 3 \| 01 SN 221E03156-* \| 02 SN 221E03156-* \| 03 SN 221E03156-* \| 04 SN 221E03156-*
FB20TBCB	DUPLEX	02-07-06 02-07-06 22560 MAST PIPING [Fm]	8	1
FB16TCB	DUPLEX	02-07-06 02-07-06 22560 MAST PIPING [Fm]	8	1
FB15TCA	SIMPLEX	02-05-10 02-05-10 2059A MAST PIPING[Pm] FB(EP)13-18TCA(Std-MLH<=5000), 20TCA(Std-MLH<=4000)	3-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB13TCA	TRIPLEX	02-06-18 02-06-18 2158C MAST PIPING[Mm] 20TCA[Std-MLH<=4000]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB20TCA	TRIPLEX	02-06-19 02-06-19 2158D MAST PIPING[Mm] 20TCA[Std-MLH>4000]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB18TCA	SIMPLEX	02-05-10 02-05-10 2059A MAST PIPING[Pm] FB(EP)13-18TCA(Std-MLH<=5000), 20TCA(Std-MLH<=4000)	3-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB18CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING[Fm]	8	1
FB20TCA	SIMPLEX	02-05-10 02-05-10 2059A MAST PIPING[Pm] FB(EP)13-18TCA(Std-MLH<=5000), 20TCA(Std-MLH<=4000)	3-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB18TBCB	DUPLEX MAST	Fig.22560 Fig.22560 MAST PIPING [Fm]	8
FB10CA	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING[Fm]	11-1	1	RP: 3 \| 01 SN 221E03156-* \| 02 SN 221E03156-* \| 03 SN 221E03156-* \| 04 SN 221E03156-*
FB18TCB	DUPLEX	02-07-06 02-07-06 22560 MAST PIPING [Fm]	8	1
FB30CA	SIMPLEX	02-05-16 02-05-16 2059A MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA, [Std]	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB25CA	TRIPLEX	02-06-04 02-06-04 21560 MAST PIPING[Mm] 1	3	1
FB30CA	SIMPLEX	02-05-18 02-05-18 2059C MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLH3000/3300]	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN - \| 04 SN -
FB28CA	SIMPLEX	02-05-19 02-05-19 2059D MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLHGëº3500],[CS/FCS/RP/DRP] 11-P-2402	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN - \| 04 SN -
FB15TCA	TRIPLEX	02-06-18 02-06-18 2158C MAST PIPING[Mm] 20TCA[Std-MLH<=4000]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB20CA	SIMPLEX	02-05-16 02-05-16 2059A MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA, [Std]	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB25(H)CA1(J)	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING [Fm]	9	1
FB15TCA	TRIPLEX	02-06-19 02-06-19 2158D MAST PIPING[Mm] 20TCA[Std-MLH>4000]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB30CA1(J)	SIMPLEX	02-05-12 02-05-12 2059A MAST PIPING [Pm] FB20/25CA1(J),[Std:MLH3000/3300]	4	1	03 SN - \| 04 SN -
FB20CA1	SIMPLEX	02-05-07 02-05-07 2059 MAST PIPING [Pm]	4	1
FB18TCA	DUPLEX	02-07-18 02-07-18 2259 MAST PIPING[Fm]	4-1	1	RP: 3 \| 01 SN 215AF0612-* \| 02 SN 216AF1790-* \| 03 SN 216AF1790-* \| 04 SN 288AD0330-*
FB15TCB	DUPLEX MAST	Fig.22560 Fig.22560 MAST PIPING [Fm]	8
FB30CA	TRIPLEX	02-06-24 02-06-24 2159A MAST PIPING[Mm] 2 [Std],20CA/25CA-241AC8865),28CA/30CA	7-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB30CA1(J)	TRIPLEX	02-06-19 02-06-19 2159A MAST PIPING [Mm]2 FB20/25CA1(J)	8	1	03 SN - \| 04 SN -
FB30CA	SIMPLEX	02-05-19 02-05-19 2059D MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLHGëº3500],[CS/FCS/RP/DRP] 11-P-2402	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN - \| 04 SN -
FB28CA1(J)	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING [Fm]	9	1
FB10CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	8	1
FB16TBCB	DUPLEX MAST	Fig.22560 Fig.22560 MAST PIPING [Fm]	8
FB14CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	8	1
FB30CA1(J)	TRIPLEX	02-06-20 02-06-20 2159B MAST PIPING [Mm]2 FB20/25CA1(J),CS/FCS/RP/DRP	8	1	03 SN - \| 04 SN -
FB30CA1(J)	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING [Fm]	9	1
FB15CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING[Fm]	8	1
FB28CA1(J)	TRIPLEX	02-06-20 02-06-20 2159B MAST PIPING [Mm]2 FB20/25CA1(J),CS/FCS/RP/DRP	8	1	03 SN - \| 04 SN -
FB28CA1(J)	SIMPLEX	02-05-12 02-05-12 2059A MAST PIPING [Pm] FB20/25CA1(J),[Std:MLH3000/3300]	4	1	03 SN - \| 04 SN -
FB18(H)CA1(J)	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING [Fm]	9	1
FB18TCA	TRIPLEX	02-06-18 02-06-18 2158C MAST PIPING[Mm] 20TCA[Std-MLH<=4000]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB30CA	DUPLEX	02-07-20 02-07-20 2259 MAST PIPING[Fm]	11-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB28CA	TRIPLEX	02-06-24 02-06-24 2159A MAST PIPING[Mm] 2 [Std],20CA/25CA-241AC8865),28CA/30CA	7-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB28CA	SIMPLEX	02-05-16 02-05-16 2059A MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA, [Std]	4-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB25CA1	TRIPLEX	02-06-11 02-06-11 2158 MAST PIPING[Mm]	3	1
FB20CA	TRIPLEX	02-06-26 02-06-26 2159C MAST PIPING[Mm] 2 [Std], 20CA/25CA(241AC8866-)	8-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB20TCA	TRIPLEX	02-06-18 02-06-18 2158C MAST PIPING[Mm] 20TCA[Std-MLH<=4000]	4-1	1	RP: 3 \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0330-*
FB25(H)CA1(J)	SIMPLEX	02-05-14 02-05-14 2059C MAST PIPING [Pm] FB28/30CA1(J)	4	1	01 SN - \| 02 SN -
FB18TBCB	DUPLEX	02-07-06 02-07-06 22560 MAST PIPING [Fm]	8	1
FB20CA	TRIPLEX	02-06-25 02-06-25 2159B MAST PIPING[Mm] 2 [CS/FCS/RP/DRP]	7-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*
FB20CA	SIMPLEX	02-05-03 02-05-03 20560 MAST PIPING[Pm]	4	1
FB20(H)CA1(J)	SIMPLEX	02-05-14 02-05-14 2059C MAST PIPING [Pm] FB28/30CA1(J)	4	1	01 SN - \| 02 SN -
FB10(H)CA1(J)	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING [Fm]	9	1
FB16TBCB	DUPLEX	02-07-06 02-07-06 22560 MAST PIPING [Fm]	8	1
FB25CA	TRIPLEX	02-06-24 02-06-24 2159A MAST PIPING[Mm] 2 [Std],20CA/25CA-241AC8865),28CA/30CA	7-1	1	RP: 3 \| 01 SN 241AC9078-* \| 02 SN 241AC9078-* \| 03 SN 241AC9078-* \| 04 SN 251AC1299-*

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FB15TCA, FB13TCA, FB18TCA, FB20TCA, FB15TCB, FB18CA, FB25CA, FB28CA, FB20CA, FB14CA, FB30CA1(J), FB15CA, FB18(H)CA1(J), FB30CA, FB25(H)CA1(J), FB20CA1, FB10CA, FB14(H)CA1(J), FB25CA1, FB20TCB, FB20TBCB, FB10(H)CA1(J), FB18TBCB, FB18TCB, FB20(H)CA1(J), FB16TCB, FB16TBCB, FB15(H)CA1(J), FB28CA1(J), FB13TCB, FB10CA1, FB18CA1, FB14CA1, FB15CA1
Номер по каталогу	31830-67321
Бренд	Mitsubishi
Система Mitsubishi	DUPLEX, SIMPLEX, TRIPLEX, DUPLEX MAST
Узел Mitsubishi	02-07-11 02-07-11 2259 MAST PIPING[Fm], 02-05-17 02-05-17 2059B MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA[CS/FCS/RP/DRP], 02-07-11 02-07-11 2259 MAST PIPING [Fm], 02-05-13 02-05-13 2059B MAST PIPING [Pm] FB20/25CA1(J),[Std:MLH3500-5000],[CS/FCS/RP/DRP], 02-05-18 02-05-18 2059C MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLH3000/3300], 02-07-20 02-07-20 2259 MAST PIPING[Fm], 02-06-19 02-06-19 2158D MAST PIPING[Mm] 20TCA[Std-MLH>4000], 02-07-04 02-07-04 22560 MAST PIPING[Fm], 02-06-22 02-06-22 2158G MAST PIPING[Mm] [CS/RP], 02-07-15 02-07-15 2259 MAST PIPING[Fm], 02-05-07 02-05-07 2059 MAST PIPING [Pm], 02-07-06 02-07-06 22560 MAST PIPING [Fm], Fig.22560 Fig.22560 MAST PIPING [Fm], 02-07-18 02-07-18 2259 MAST PIPING[Fm], 02-06-18 02-06-18 2158C MAST PIPING[Mm] 20TCA[Std-MLH<=4000], 02-07-15 02-07-15 2259 MAST PIPING [Fm], 02-06-04 02-06-04 21560 MAST PIPING[Mm] 1, 02-05-19 02-05-19 2059D MAST PIPING[Pm] 20CA/25CA(241AC7134-),[Std:MLHGëº3500],[CS/FCS/RP/DRP] 11-P-2402, 02-06-11 02-06-11 2158 MAST PIPING[Mm], 02-05-03 02-05-03 20560 MAST PIPING[Pm], 02-06-26 02-06-26 2159C MAST PIPING[Mm] 2 [Std], 20CA/25CA(241AC8866-), 02-06-25 02-06-25 2159B MAST PIPING[Mm] 2 [CS/FCS/RP/DRP], 02-05-10 02-05-10 2059A MAST PIPING[Pm] FB(EP)13-18TCA(Std-MLH<=5000), 20TCA(Std-MLH<=4000), 02-05-16 02-05-16 2059A MAST PIPING[Pm] 20CA/25CA(-241AC7133),28CA/30CA, [Std], 02-05-12 02-05-12 2059A MAST PIPING [Pm] FB20/25CA1(J),[Std:MLH3000/3300], 02-06-24 02-06-24 2159A MAST PIPING[Mm] 2 [Std],20CA/25CA-241AC8865),28CA/30CA, 02-06-19 02-06-19 2159A MAST PIPING [Mm]2 FB20/25CA1(J), 02-06-20 02-06-20 2159B MAST PIPING [Mm]2 FB20/25CA1(J),CS/FCS/RP/DRP, 02-05-14 02-05-14 2059C MAST PIPING [Pm] FB28/30CA1(J)
Позиция на схеме Mitsubishi	4, 3, 8, 9, 7-1, 11-1, 3-1, 8-1, 4-1
Название на русском	Клапан down safety
