Клапан flow control Mitsubishi 31810-06800 (Valve, flow control)

Клапан flow control Mitsubishi 31810-06800 (Valve, flow control)

Клапан flow control, 31810-06800 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FB15TCA, FB13TCA, FB18TCA, FB20TCA, FB18CA, FB14CA, FB15CA, FB18(H)CA1(J), FB10CA, FB14(H)CA1(J), FB10(H)CA1(J), FB15(H)CA1(J), FB10CA1, FB18CA1, FB14CA1, FB15CA1
Номер по каталогу	31810-06800
Бренд	Mitsubishi
Система Mitsubishi	DUPLEX, TRIPLEX
Узел Mitsubishi	02-07-11 02-07-11 2259 MAST PIPING[Fm], 02-07-11 02-07-11 2259 MAST PIPING [Fm], 02-07-04 02-07-04 22560 MAST PIPING[Fm], 02-07-15 02-07-15 2259 MAST PIPING[Fm], 02-07-18 02-07-18 2259 MAST PIPING[Fm], 02-06-04 02-06-04 21560 MAST PIPING[Mm] 1, 02-06-09 02-06-09 2158 MAST PIPING[Mm]

Все характеристики

По запросу

Артикул: mt000392-31810-06800

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 31810-06800

Название: Valve, flow control

Название на русском: Клапан flow control

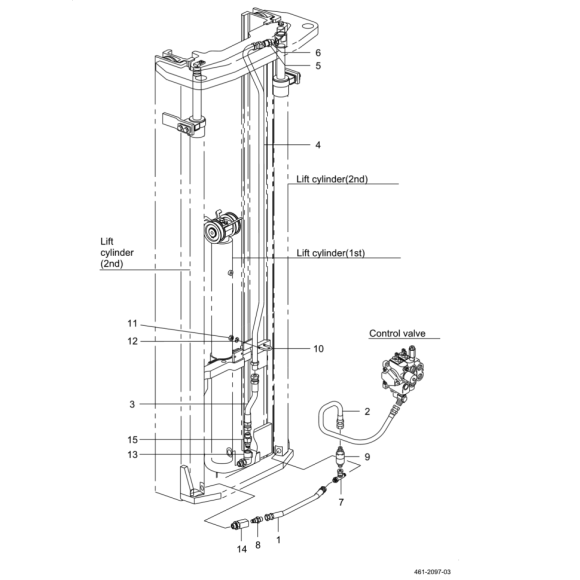

Основная схема: 02-07-11 02-07-11 2259 MAST PIPING[Fm]. Номер на картинке: 9.

Применяемость: найдено 28 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FB14CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING[Fm]	9	1
FB15CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	9	1
FB10CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING[Fm]	9	1
FB18CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	9	1
FB18CA	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING[Fm]	10	1
FB14(H)CA1(J)	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING [Fm]	8	1
FB15TCA	DUPLEX	02-07-18 02-07-18 2259 MAST PIPING[Fm]	5-1	1	RP: 3 \| 01 SN 215AF0574-* \| 02 SN 216AF1715-* \| 03 SN 216AF1715-* \| 04 SN -
FB14CA	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING[Fm]	10	1
FB18CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING[Fm]	9	1
FB10CA	TRIPLEX	02-06-04 02-06-04 21560 MAST PIPING[Mm] 1	4	1
FB10CA	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING[Fm]	10	1
FB18CA	TRIPLEX	02-06-04 02-06-04 21560 MAST PIPING[Mm] 1	4	1
FB18CA1	TRIPLEX	02-06-09 02-06-09 2158 MAST PIPING[Mm]	4	1
FB18TCA	DUPLEX	02-07-18 02-07-18 2259 MAST PIPING[Fm]	5-1	1	RP: 3 \| 01 SN 215AF0574-* \| 02 SN 216AF1715-* \| 03 SN 216AF1715-* \| 04 SN -
FB10CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	9	1
FB14CA	DUPLEX	02-07-04 02-07-04 22560 MAST PIPING[Fm]	9	1
FB15CA1	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING[Fm]	9	1
FB18(H)CA1(J)	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING [Fm]	8	1
FB10(H)CA1(J)	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING [Fm]	8	1
FB15CA1	TRIPLEX	02-06-09 02-06-09 2158 MAST PIPING[Mm]	4	1
FB14CA1	TRIPLEX	02-06-09 02-06-09 2158 MAST PIPING[Mm]	4	1
FB10CA1	TRIPLEX	02-06-09 02-06-09 2158 MAST PIPING[Mm]	4	1
FB14CA	TRIPLEX	02-06-04 02-06-04 21560 MAST PIPING[Mm] 1	4	1
FB13TCA	DUPLEX	02-07-18 02-07-18 2259 MAST PIPING[Fm]	5-1	1	RP: 3 \| 01 SN 215AF0574-* \| 02 SN 216AF1715-* \| 03 SN 216AF1715-* \| 04 SN -
FB20TCA	DUPLEX	02-07-18 02-07-18 2259 MAST PIPING[Fm]	5-1	1	RP: 3 \| 01 SN 215AF0574-* \| 02 SN 216AF1715-* \| 03 SN 216AF1715-* \| 04 SN -
FB15(H)CA1(J)	DUPLEX	02-07-11 02-07-11 2259 MAST PIPING [Fm]	8	1
FB15CA	TRIPLEX	02-06-04 02-06-04 21560 MAST PIPING[Mm] 1	4	1
FB15CA	DUPLEX	02-07-15 02-07-15 2259 MAST PIPING[Fm]	10	1

Модель техники	FB15TCA, FB13TCA, FB18TCA, FB20TCA, FB18CA, FB14CA, FB15CA, FB18(H)CA1(J), FB10CA, FB14(H)CA1(J), FB10(H)CA1(J), FB15(H)CA1(J), FB10CA1, FB18CA1, FB14CA1, FB15CA1
Номер по каталогу	31810-06800
Бренд	Mitsubishi
Система Mitsubishi	DUPLEX, TRIPLEX
Узел Mitsubishi	02-07-11 02-07-11 2259 MAST PIPING[Fm], 02-07-11 02-07-11 2259 MAST PIPING [Fm], 02-07-04 02-07-04 22560 MAST PIPING[Fm], 02-07-15 02-07-15 2259 MAST PIPING[Fm], 02-07-18 02-07-18 2259 MAST PIPING[Fm], 02-06-04 02-06-04 21560 MAST PIPING[Mm] 1, 02-06-09 02-06-09 2158 MAST PIPING[Mm]
Позиция на схеме Mitsubishi	4, 8, 5-1, 9, 10
Название на русском	Клапан flow control

Клапан flow control Mitsubishi 31810-06800 (Valve, flow control) отзывы

Категории:DUPLEX Запчасти вилочных погрузчиков Запчасти Mitsubishi TRIPLEX
