Lens узел в сборе Mitsubishi 0515309510 (LENS ASSY)

Lens узел в сборе Mitsubishi 0515309510 (LENS ASSY)

Lens узел в сборе, 0515309510 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD15N, FD18N, FD20CN, FG10N, FG15N, FG18N, FG20CN, FD10N, FG30N, FD35AN, FD30N, FG35AN, FD35N, FGE35AN, FGC30N, FGC33N, FGE30N, FG35N, FD50N1, FD45N1, FD40N1, FGC20CN, FGC15N, FGC18N, FD55N1, FD50NM1, FD50CNM1, FGC25N, FD50CN1, FD40NM1, FD45NM1, FD55NM1, FGC20N, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FGE18ZN, FD25N, FGE20CN, FGE25ZN, FGE20ZN, FD20N, FG25N, FGE25N, FG20N, FGE18N, FG20ZN, FG25ZN, FGE15N, FG18ZN, FGE20N, FG15ZN, FGE10N, FGE15ZN
Номер по каталогу	0515309510
Бренд	Mitsubishi
Система Mitsubishi	ELECTRIC SYSTEM, ELECTRICAL SYSTEM
Узел Mitsubishi	01-04-12 01-04-12 TURN SIGNAL KIT (OPTION), 01-04-03 01-04-03 HEAD GUARD CIRCUIT, 01-04-14 01-04-14 TURN SIGNAL KIT (OPTION), 01-04-03 01-04-03 HEAD LAMP

Все характеристики

По запросу

Артикул: mt003321-0515309510

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 0515309510

Название: LENS ASSY

Название на русском: Lens узел в сборе

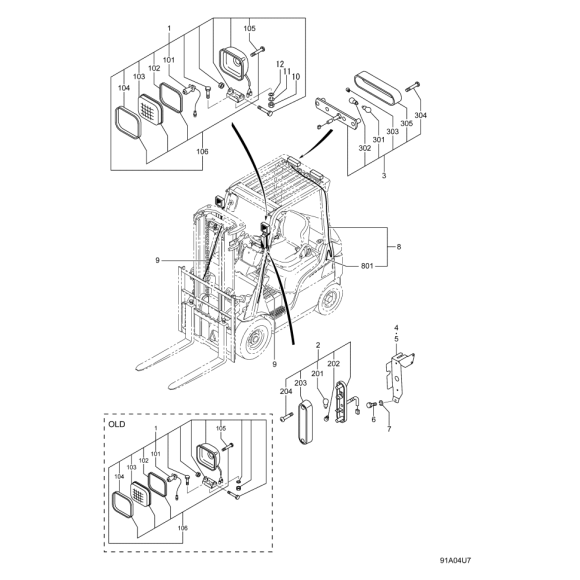

Основная схема: 01-04-03 01-04-03 HEAD GUARD CIRCUIT. Номер на картинке: 305.

Применяемость: найдено 125 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FG20N	Electrical System	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG55N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	704	2
FGC33N	ELECTRIC SYSTEM	01-04-12 01-04-12 TURN SIGNAL KIT (OPTION)	706	2
FGE25ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	1	RP: 3
FGE30N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD50CN1	ELECTRIC SYSTEM	01-04-14 01-04-14 TURN SIGNAL KIT (OPTION)	104	2
FGE15ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	1	RP: 3
FGE18ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	1	RP: 3
FD55N1	ELECTRIC SYSTEM	01-04-14 01-04-14 TURN SIGNAL KIT (OPTION)	104	2
FGE20CN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	1	RP: 3
FG45N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	704	2
FG15N	ELECTRICAL SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG25ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD20N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG18ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD40N1	ELECTRIC SYSTEM	01-04-14 01-04-14 TURN SIGNAL KIT (OPTION)	104	2
FGC20CN	ELECTRIC SYSTEM	01-04-12 01-04-12 TURN SIGNAL KIT (OPTION)	706	2
FGE25N	Electrical System	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG20N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGE30N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FD30N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGE25N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG50N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	704	2
FD20CN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG15ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FD20CN	ELECTRICAL SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG15ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG30N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG20CN	ELECTRICAL SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD25N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG20CN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD18N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2
FG18ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FD55N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	704	2
FD35AN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG15N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD10N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2
FGE25N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FG50CN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	704	2
FD25N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FD50N1	ELECTRIC SYSTEM	01-04-14 01-04-14 TURN SIGNAL KIT (OPTION)	104	2
FGE18N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD35AN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD15N	ELECTRICAL SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD25N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGC18N	ELECTRIC SYSTEM	01-04-12 01-04-12 TURN SIGNAL KIT (OPTION)	706	2
FGC25N	ELECTRIC SYSTEM	01-04-12 01-04-12 TURN SIGNAL KIT (OPTION)	706	2
FD30N	Electrical System	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGE18N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG25N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG35AN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FGC15N	ELECTRIC SYSTEM	01-04-12 01-04-12 TURN SIGNAL KIT (OPTION)	706	2
FG25N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FGE20ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	1	RP: 3
FD50N1	ELECTRIC SYSTEM	01-04-14 01-04-14 TURN SIGNAL KIT (OPTION)	104	2
FD45N1	ELECTRIC SYSTEM	01-04-14 01-04-14 TURN SIGNAL KIT (OPTION)	104	2
FD50CNM1	ELECTRIC SYSTEM	01-04-14 01-04-14 TURN SIGNAL KIT (OPTION)	104	2
FD35AN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FD18N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG10N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGE20CN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGE20ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD30N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG18N	ELECTRICAL SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGE20ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG40N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	704	2
FGE25ZN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG35AN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD10N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGE20CN	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD45N1	ELECTRIC SYSTEM	01-04-14 01-04-14 TURN SIGNAL KIT (OPTION)	104	2
FG35N	Electrical System	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD18N	ELECTRICAL SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGC30N	ELECTRIC SYSTEM	01-04-12 01-04-12 TURN SIGNAL KIT (OPTION)	706	2
FG30N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FG18N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FD30N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD LAMP	305	2	RP: 3
FD20N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FG25N	Electrical System	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2
FGE15N	ELECTRIC SYSTEM	01-04-03 01-04-03 HEAD GUARD CIRCUIT	305	2

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FD15N, FD18N, FD20CN, FG10N, FG15N, FG18N, FG20CN, FD10N, FG30N, FD35AN, FD30N, FG35AN, FD35N, FGE35AN, FGC30N, FGC33N, FGE30N, FG35N, FD50N1, FD45N1, FD40N1, FGC20CN, FGC15N, FGC18N, FD55N1, FD50NM1, FD50CNM1, FGC25N, FD50CN1, FD40NM1, FD45NM1, FD55NM1, FGC20N, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FGE18ZN, FD25N, FGE20CN, FGE25ZN, FGE20ZN, FD20N, FG25N, FGE25N, FG20N, FGE18N, FG20ZN, FG25ZN, FGE15N, FG18ZN, FGE20N, FG15ZN, FGE10N, FGE15ZN
Номер по каталогу	0515309510
Бренд	Mitsubishi
Система Mitsubishi	ELECTRIC SYSTEM, ELECTRICAL SYSTEM
Узел Mitsubishi	01-04-12 01-04-12 TURN SIGNAL KIT (OPTION), 01-04-03 01-04-03 HEAD GUARD CIRCUIT, 01-04-14 01-04-14 TURN SIGNAL KIT (OPTION), 01-04-03 01-04-03 HEAD LAMP
Позиция на схеме Mitsubishi	704, 305, 104, 706
Название на русском	Lens узел в сборе
