Хомут шланг Mitsubishi F430007201 (CLAMP, HOSE)

Хомут шланг Mitsubishi F430007201 (CLAMP, HOSE)

Хомут шланг, F430007201 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD15N, FD18N, FD20CN, FD10N, FG10, FG30N, FD35AN, FD150A, FD100, FD30N, FD30, FG30-LPG, FG35AN, FD35, FG35A, FG30-G, FD35N, FG30, FD115, FD15, FD35A, FD135, FD14, FG20, FG25, FD18, FGE35AN, FG15, FGE30N, FG35K-LPG, FG30K-LPG, FG35-LPG, FG18, FG30K-G, FD10, FG35K-G, FD25, FG35-G, FD15K, FD50N1, FG45K, FG25, for gasoline only, FD45N1, FGC30, FD40N1, FG25K, LP FUEL TYPE, FGC20, FGC15, FG20, LP fuel type, FD55N1, FG50K, FD45K, FG20K, LP FUEL TYPE, FD50NM1, FD50CNM1, FG40K, FG20K, FOR GASOLINE ONLY, FD50CN1, FDC25, FDC30, FD40NM1, FD45NM1, FD55NM1, FD40K, FK40KL, FG25, LP fuel type, FD18K, FG25K, FOR GASOLINE ONLY, FG40KL, FG20, for gasoline only, FGC10, FD50K, FGC25, FDC20, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FGE18ZN, FD25N, FGE25ZN, FGE20ZN, FD50NB, FD20N, FG25N, FGE25N, FD40NB, FG20N, FD55NB, FG20ZN, FG25ZN, FD50CNB, FG18ZN, FGE20N, FD45NB, FG15ZN, FGE15ZN
Номер по каталогу	F430007201
Бренд	Mitsubishi
Система Mitsubishi	OPTION, FRAME AND BODY, FRAME & BODY, DRIVING CONTROL, EXHAUST AND INTAKE SYSTEM, INTAKE AND EXHAUST SYSTEM, EXHAUST AND INTAKE, EXHAUST & INTAKE SYSTEM, TILT CYLINDER, EXHAUST SYSTEM
Узел Mitsubishi	01-51-03 01-51-03 PEDAL ASSY (FOR FD45K,FD50K), 01-61-01 01-61-01 AIR INTAKE SYSTEM, 01-61-01 01-61-01 INTAKE SYSTEM, AIR AIR INTAKE SYSTEM, AIR-CON AIR-CON AND HEATER (PART-2) (LOW NOISE MODEL), 01-16-02 01-16-02 AIR-CON & HEATER (PART-2) (LOW NOISE MODEL), AIR AIR CLEANER, 01-51-03 01-51-03 PEDAL ASSY (FOR FG45K,FG50K), 01-51-01 01-51-01 PEDAL ASSY (FOR FD40K,FD40KL), 01-51-01 01-51-01 PEDAL ASSY (FOR FG40K,FG40KL), 01-61-0101 01-61-0101 INTAKE SYSTEM, 03-92-01 03-92-01 TILT CYLINDER BOOT KIT, 02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION), 02-05-01 02-05-01 TILT CYLINDER KIT (OPTION)

Все характеристики

По запросу

Артикул: mt003190-F430007201

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: F430007201

Название: CLAMP, HOSE

Название на русском: Хомут шланг

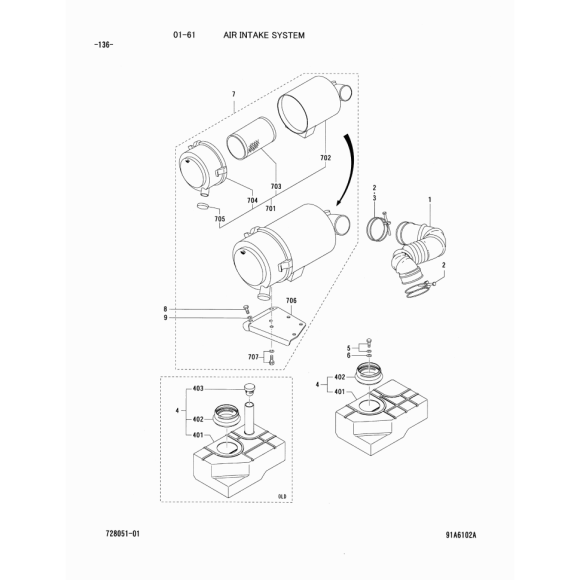

Основная схема: 01-61-01 01-61-01 AIR INTAKE SYSTEM. Номер на картинке: 2.

Применяемость: найдено 266 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD20N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	2	2	CNG: Q \| 01 SN -@00222 \| 02 SN -@50761
FD20N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	2	1	01 SN 00223@-* \| 02 SN 50762@-*
FD15N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FD25N	Intake and Exhaust System	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FD30N	Exhaust & Intake System	01-61-01 01-61-01 INTAKE SYSTEM	3	1
FG15	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 50001-553521-50001-553521
FG15	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 55353-2-55353-2
FG15	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	21	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 50001-1-50001-1
FD20CN	EXHAUST SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	2	2	CNG: Q \| 01 SN -@00023 \| 02 SN -@50154 \| 03 SN -@70028 \| 04 SN -@85016
FD20CN	EXHAUST SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	2	1	01 SN 00024@-* \| 02 SN 50155@-* \| 03 SN 70029@-* \| 04 SN 85017@-*
FD18N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FG25K, FOR GASOLINE ONLY	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FG20, LP fuel type	EXHAUST AND INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FG20, for gasoline only	EXHAUST AND INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FG25, for gasoline only	EXHAUST AND INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FD15N	Exhaust & Intake System	01-61-01 01-61-01 INTAKE SYSTEM	3	1
FDC20	EXHAUST AND INTAKE SYSTEM	AIR AIR CLEANER	3	1
FK40KL	DRIVING CONTROL	01-51-03 01-51-03 PEDAL ASSY (FOR FD45K,FD50K)	136	1	CNG: A \| 01 SN - \| 02 SN - \| 03 SN 2006-05-* \| 04 SN 2006-05-*
FG55N	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FD40N1	TILT CYLINDER	02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION)	8	2
FD35A	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN 30001-333721-30001-333721 \| 03 SN - \| 04 SN 00011-005151-00011-005151
FD35A	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN 33373-2-33373-2 \| 03 SN - \| 04 SN 00516-2-00516-2
FD35A	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	21	-	01 SN - \| 02 SN 30001-1-30001-1 \| 03 SN - \| 04 SN 00011-1-00011-1
FD15	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	11	1
FG35K-LPG	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FG45N	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FD50NM1	TILT CYLINDER	02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION)	8	2
FD50CN	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FG25	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 50001-553521-50001-553521
FG25	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 55353-2-55353-2
FG25	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	21	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 50001-1-50001-1
FG20, for gasoline only	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FD45N	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FD50N	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FGE35AN	EXHAUST AND INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	2	1	CNG: D \| 01 SN -@38028 \| 02 SN -@58007
FG45K	DRIVING CONTROL	01-51-03 01-51-03 PEDAL ASSY (FOR FG45K,FG50K)	136	1	CNG: A \| 01 SN - \| 02 SN - \| 03 SN 002605@-* \| 04 SN 002605@-*
FD55NM1	TILT CYLINDER	02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION)	8	2
FD15N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FG35AN	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	2	1	CNG: D \| 01 SN -@30092 \| 02 SN -@50023
FG25	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN -
FD50NB	TILT CYLINDER	02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION)	8	2
FG35K-G	EXHAUST AND INTAKE SYSTEM	AIR AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FD20N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FD40N	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FD50N1	TILT CYLINDER	02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION)	8	2
FG25, LP fuel type	EXHAUST AND INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FGE25N	EXHAUST AND INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	2	1	CNG: D \| 01 SN -@08026 \| 02 SN -@58027
FG18	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 50001-553521-50001-553521
FG18	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 55353-2-55353-2
FG18	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	21	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 50001-1-50001-1
FG30K-LPG	EXHAUST AND INTAKE SYSTEM	AIR AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN - \| 05 SN - \| 06 SN -
FDC25	EXHAUST AND INTAKE SYSTEM	AIR AIR CLEANER	3	1
FD10N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FD50K	DRIVING CONTROL	01-51-01 01-51-01 PEDAL ASSY (FOR FD40K,FD40KL)	136	1	CNG: A \| 01 SN 2006-05-* \| 02 SN 2006-05-* \| 03 SN - \| 04 SN -
FD40NB	TILT CYLINDER	02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION)	8	2
FG25ZN	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1	CNG: D \| 01 SN -@50074 \| 02 SN -@70097 \| 03 SN -@00014 \| 04 SN -@50183
FD20CN	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FD25	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 50001-553521-50001-553521
FD25	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 55353-2-55353-2
FD25	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	21	-	01 SN - \| 02 SN - \| 03 SN - \| 04 SN - \| 05 SN - \| 06 SN 50001-1-50001-1
FD15N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 INTAKE SYSTEM	3	1
FG40KL	DRIVING CONTROL	01-51-01 01-51-01 PEDAL ASSY (FOR FG40K,FG40KL)	136	1	CNG: A \| 01 SN 002605@-* \| 02 SN 002605@-* \| 03 SN - \| 04 SN -
FD40NM1	TILT CYLINDER	02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION)	8	2
FD50N1	TILT CYLINDER	02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION)	8	2
FG25	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN -
FD30	EXHAUST AND INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1
FGC20	EXHAUST AND INTAKE SYSTEM	AIR AIR CLEANER	3	1
FG40N	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FD40N	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FD30	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN 30001-333721-30001-333721 \| 03 SN - \| 04 SN 00011-005151-00011-005151
FD30	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	2	-	01 SN - \| 02 SN 33373-2-33373-2 \| 03 SN - \| 04 SN 00516-2-00516-2
FD30	EXHAUST AND INTAKE	AIR AIR INTAKE SYSTEM	21	-	01 SN - \| 02 SN 30001-1-30001-1 \| 03 SN - \| 04 SN 00011-1-00011-1
FD25N	Exhaust & Intake System	01-61-01 01-61-01 INTAKE SYSTEM	3	1
FD20N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FG25	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	12	1	01 SN - \| 03 SN -
FGC15	EXHAUST AND INTAKE SYSTEM	AIR AIR CLEANER	3	1
FD50CN	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FD50N	OPTION	03-92-01 03-92-01 TILT CYLINDER BOOT KIT	8	2
FD30N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1
FD25N	EXHAUST & INTAKE SYSTEM	01-61-01 01-61-01 AIR INTAKE SYSTEM	3	1

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FD15N, FD18N, FD20CN, FD10N, FG10, FG30N, FD35AN, FD150A, FD100, FD30N, FD30, FG30-LPG, FG35AN, FD35, FG35A, FG30-G, FD35N, FG30, FD115, FD15, FD35A, FD135, FD14, FG20, FG25, FD18, FGE35AN, FG15, FGE30N, FG35K-LPG, FG30K-LPG, FG35-LPG, FG18, FG30K-G, FD10, FG35K-G, FD25, FG35-G, FD15K, FD50N1, FG45K, FG25, for gasoline only, FD45N1, FGC30, FD40N1, FG25K, LP FUEL TYPE, FGC20, FGC15, FG20, LP fuel type, FD55N1, FG50K, FD45K, FG20K, LP FUEL TYPE, FD50NM1, FD50CNM1, FG40K, FG20K, FOR GASOLINE ONLY, FD50CN1, FDC25, FDC30, FD40NM1, FD45NM1, FD55NM1, FD40K, FK40KL, FG25, LP fuel type, FD18K, FG25K, FOR GASOLINE ONLY, FG40KL, FG20, for gasoline only, FGC10, FD50K, FGC25, FDC20, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FGE18ZN, FD25N, FGE25ZN, FGE20ZN, FD50NB, FD20N, FG25N, FGE25N, FD40NB, FG20N, FD55NB, FG20ZN, FG25ZN, FD50CNB, FG18ZN, FGE20N, FD45NB, FG15ZN, FGE15ZN
Номер по каталогу	F430007201
Бренд	Mitsubishi
Система Mitsubishi	OPTION, FRAME AND BODY, FRAME & BODY, DRIVING CONTROL, EXHAUST AND INTAKE SYSTEM, INTAKE AND EXHAUST SYSTEM, EXHAUST AND INTAKE, EXHAUST & INTAKE SYSTEM, TILT CYLINDER, EXHAUST SYSTEM
Узел Mitsubishi	01-51-03 01-51-03 PEDAL ASSY (FOR FD45K,FD50K), 01-61-01 01-61-01 AIR INTAKE SYSTEM, 01-61-01 01-61-01 INTAKE SYSTEM, AIR AIR INTAKE SYSTEM, AIR-CON AIR-CON AND HEATER (PART-2) (LOW NOISE MODEL), 01-16-02 01-16-02 AIR-CON & HEATER (PART-2) (LOW NOISE MODEL), AIR AIR CLEANER, 01-51-03 01-51-03 PEDAL ASSY (FOR FG45K,FG50K), 01-51-01 01-51-01 PEDAL ASSY (FOR FD40K,FD40KL), 01-51-01 01-51-01 PEDAL ASSY (FOR FG40K,FG40KL), 01-61-0101 01-61-0101 INTAKE SYSTEM, 03-92-01 03-92-01 TILT CYLINDER BOOT KIT, 02-05-01 02-05-01 TILT CYLINDER BOOT KIT (OPTION), 02-05-01 02-05-01 TILT CYLINDER KIT (OPTION)
Позиция на схеме Mitsubishi	21, 3, 2, 8, 11, 12, 136
Название на русском	Хомут шланг
