Крышка column upper Mitsubishi 91A1203200 (COVER,COLUMN UPPER)

Крышка column upper Mitsubishi 91A1203200 (COVER,COLUMN UPPER)

Крышка column upper, 91A1203200 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD15N, FD18N, FD20CN, FG10N, FG15N, FG18N, FG20CN, FD10N, FG30N, FD35AN, FD30N, FG35AN, FD35N, FGC28N, FGE35AN, FGC30N, FGC33N, FGE30N, FG35N, FGC20CN, FGC15N, FGC18N, FGC25N, FGC20N, FD100N, FD160N, FD120NZ, FD135N, FD150N, FD100NZ, FD120N, FD135NZ, FD150ANZ, FD80N, FD90N, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FGE18ZN, FGC20N-HO, FD25N, FGE20CN, FGE25ZN, FGE20ZN, FD20N, FG25N, FGE25N, FGC25N-HO, FG20N, 3TON, FGE18N, FG20ZN, FG25ZN, 2TON, FGE15N, FG18ZN, FGE20N, 3.5TON, FG15ZN, FGE10N, FGE15ZN, 2.5TON
Номер по каталогу	91A1203200
Бренд	Mitsubishi
Система Mitsubishi	OVERHEAD GUARD, FRAME AND BODY, FRAME & BODY, CAB, OPERATOR CAB
Узел Mitsubishi	01-11-08 01-11-08 DASHBOARD COVER, 01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6), 01-17-08 01-17-08 CAB (PART-8), 01-12-05 01-12-05 DASHBOARD COVER, 01-17-08 01-17-08 CABIN (PART-8), 01-12-05 01-12-05 DASHBORD COVER, 01-15-06 01-15-06 HEAD GUARD (PART-6) (STEERING ASSY), 01-15-0106 01-15-0106 OPERATOR COMPARTMENT (PART-6), 01-12-01 01-12-01 DASHBOARD COVER (FOR MC MODEL), 01-12-06 01-12-06 DASHBOARD COVER (FOR MC MODEL), 01-12-07 01-12-07 DASHBOARD COVER (FOR FC MODEL), 01-12-02 01-12-02 DASHBOARD COVER (FOR FC MODEL), 01-12-06 01-12-06 DASHBOARD COVER, 01-12-05 01-12-05 UPPER BODY COMMON PARTS

Все характеристики

По запросу

Артикул: mt003824-91A1203200

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 91A1203200

Название: COVER,COLUMN UPPER

Название на русском: Крышка column upper

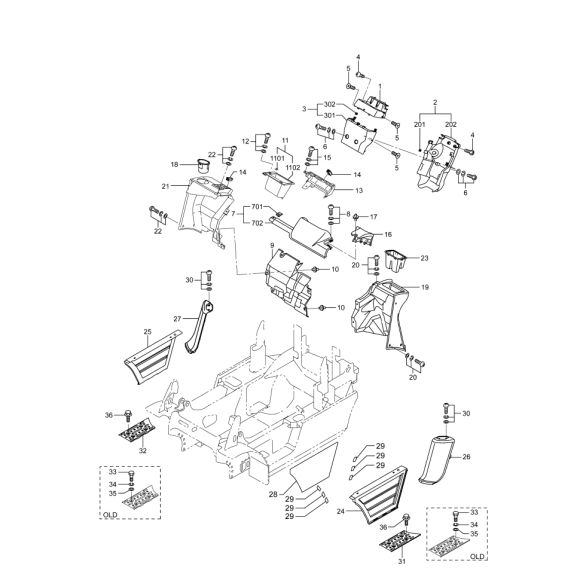

Основная схема: 01-11-08 01-11-08 DASHBOARD COVER. Номер на картинке: 1.

Применяемость: найдено 226 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD45N	FRAME & BODY	01-11-08 01-11-08 DASHBOARD COVER	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN -2011-10 \| 04 SN -2011-10 \| 05 SN *-2011-10
FD120N	FRAME & BODY	01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6)	2	1	CNG: C \| 01 SN -2012-05 \| 02 SN -2012-05 \| 03 SN -2012-05 \| 04 SN -2012-05 \| 05 SN *-2012-05
FD120N	FRAME & BODY	01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6)	2	1	RP: 3
3TON	FRAME & BODY	01-12-01 01-12-01 DASHBOARD COVER (FOR MC MODEL)	1
FG20CN	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD15N	FRAME & BODY	01-12-06 01-12-06 DASHBOARD COVER (FOR MC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN *-2011-10
FG35N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FGC28N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD25N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG18N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1	CNG: C
FD160N	CAB	01-17-08 01-17-08 CAB (PART-8)	3	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN -2011-10 \| 04 SN -2011-10 \| 05 SN *-2011-10
FG25N	FRAME & BODY	01-12-07 01-12-07 DASHBOARD COVER (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10
FD20N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD30N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
3.5TON	FRAME & BODY	01-12-02 01-12-02 DASHBOARD COVER (FOR FC MODEL)	1
FG10N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
3.5TON	FRAME & BODY	01-12-01 01-12-01 DASHBOARD COVER (FOR MC MODEL)	1
FD15N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG18ZN	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FGE18N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD18N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD50N	FRAME & BODY	01-11-08 01-11-08 DASHBOARD COVER	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN -2011-10 \| 04 SN -2011-10 \| 05 SN *-2011-10
FG15ZN	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG20N	FRAME & BODY	01-12-07 01-12-07 DASHBOARD COVER (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10
FG20N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FGE25ZN	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG20N	FRAME & BODY	01-12-06 01-12-06 DASHBOARD COVER (FOR MC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10
FD150N	FRAME & BODY	01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6)	2	1	CNG: C \| 01 SN -2012-05 \| 02 SN -2012-05 \| 03 SN -2012-05 \| 04 SN -2012-05 \| 05 SN *-2012-05
FD150N	FRAME & BODY	01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6)	2	1	RP: 3
FD15N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD20CN	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
2.5TON	FRAME & BODY	01-12-02 01-12-02 DASHBOARD COVER (FOR FC MODEL)	1
FG15N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD15N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG20CN	FRAME & BODY	01-12-06 01-12-06 DASHBOARD COVER (FOR MC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN *-2011-10
FGE20CN	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG20N	Frame and Body	01-12-05 01-12-05 DASHBOARD COVER	1	1
FGE15N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG18ZN	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG20N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD100NZ	CAB	01-17-08 01-17-08 CABIN (PART-8)	3	1
FD35N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FGC15N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN *-2011-10
FD100NZ	OVERHEAD GUARD	01-15-06 01-15-06 HEAD GUARD (PART-6) (STEERING ASSY)	2	1	CNG: C \| 01 SN -2012-05 \| 02 SN -2012-05 \| 03 SN -2012-05 \| 04 SN -2012-05
FG20CN	FRAME & BODY	01-12-07 01-12-07 DASHBOARD COVER (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN *-2011-10
FGE18N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG20CN	FRAME & BODY	01-12-05 01-12-05 DASHBORD COVER	1	1
FG18N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FGE18N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG30N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD20CN	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1	CNG: C
FD90N	OPERATOR CAB	01-17-08 01-17-08 CAB (PART-8)	3	1
FGE30N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD100N	FRAME & BODY	01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6)	2	1	CNG: C \| 01 SN -2012-05 \| 02 SN -2012-05 \| 03 SN -2012-05 \| 04 SN -2012-05 \| 05 SN *-2012-05
FD100N	FRAME & BODY	01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6)	2	1	RP: 3
FGE15N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD30N	FRAME & BODY	01-12-07 01-12-07 DASHBOARD COVER (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10
FD80N	OPERATOR CAB	01-17-08 01-17-08 CAB (PART-8)	3	1
FD135NZ	CAB	01-17-08 01-17-08 CABIN (PART-8)	3	1
FG30N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG30N	FRAME & BODY	01-12-06 01-12-06 DASHBOARD COVER (FOR MC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10
FGE15ZN	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD20N	FRAME & BODY	01-12-07 01-12-07 DASHBOARD COVER (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10
FG35N	Frame and Body	01-12-05 01-12-05 DASHBOARD COVER	1	1	CNG: C
FGC25N-HO	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FD20N	FRAME & BODY	01-12-06 01-12-06 DASHBOARD COVER (FOR MC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10
FG55N	FRAME & BODY	01-11-08 01-11-08 DASHBOARD COVER	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN -2011-10 \| 04 SN -2011-10 \| 05 SN *-2011-10
FD20N	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FGC18N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN *-2011-10
FD25N	FRAME & BODY	01-12-06 01-12-06 DASHBOARD COVER (FOR MC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10
FGE20N	Frame and Body	01-12-05 01-12-05 DASHBOARD COVER	1	1	CNG: C
FD20CN	FRAME & BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1
FG15N	FRAME & BODY	01-12-07 01-12-07 DASHBOARD COVER (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN *-2011-10
FG10N	FRAME & BODY	01-12-05 01-12-05 DASHBORD COVER	1	1
FD150N	FRAME & BODY	01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6)	2	1	CNG: C \| 01 SN -2012-05 \| 02 SN -2012-05 \| 03 SN -2012-05 \| 04 SN -2012-05 \| 05 SN *-2012-05
FD150N	FRAME & BODY	01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6)	2	1	RP: 3
FG40N	FRAME & BODY	01-11-08 01-11-08 DASHBOARD COVER	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN -2011-10 \| 04 SN -2011-10 \| 05 SN *-2011-10
FG40N	FRAME & BODY	01-11-08 01-11-08 DASHBOARD COVER	1	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN -2011-10 \| 04 SN -2011-10 \| 05 SN *-2011-10
FD120N	CAB	01-17-08 01-17-08 CAB (PART-8)	3	1	CNG: C \| 01 SN -2011-10 \| 02 SN -2011-10 \| 03 SN -2011-10 \| 04 SN -2011-10 \| 05 SN *-2011-10
FGE30N	FRAME AND BODY	01-12-05 01-12-05 DASHBOARD COVER	1	1

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FD15N, FD18N, FD20CN, FG10N, FG15N, FG18N, FG20CN, FD10N, FG30N, FD35AN, FD30N, FG35AN, FD35N, FGC28N, FGE35AN, FGC30N, FGC33N, FGE30N, FG35N, FGC20CN, FGC15N, FGC18N, FGC25N, FGC20N, FD100N, FD160N, FD120NZ, FD135N, FD150N, FD100NZ, FD120N, FD135NZ, FD150ANZ, FD80N, FD90N, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FGE18ZN, FGC20N-HO, FD25N, FGE20CN, FGE25ZN, FGE20ZN, FD20N, FG25N, FGE25N, FGC25N-HO, FG20N, 3TON, FGE18N, FG20ZN, FG25ZN, 2TON, FGE15N, FG18ZN, FGE20N, 3.5TON, FG15ZN, FGE10N, FGE15ZN, 2.5TON
Номер по каталогу	91A1203200
Бренд	Mitsubishi
Система Mitsubishi	OVERHEAD GUARD, FRAME AND BODY, FRAME & BODY, CAB, OPERATOR CAB
Узел Mitsubishi	01-11-08 01-11-08 DASHBOARD COVER, 01-15-06 01-15-06 OPERATOR COMPARTMENT (PART-6), 01-17-08 01-17-08 CAB (PART-8), 01-12-05 01-12-05 DASHBOARD COVER, 01-17-08 01-17-08 CABIN (PART-8), 01-12-05 01-12-05 DASHBORD COVER, 01-15-06 01-15-06 HEAD GUARD (PART-6) (STEERING ASSY), 01-15-0106 01-15-0106 OPERATOR COMPARTMENT (PART-6), 01-12-01 01-12-01 DASHBOARD COVER (FOR MC MODEL), 01-12-06 01-12-06 DASHBOARD COVER (FOR MC MODEL), 01-12-07 01-12-07 DASHBOARD COVER (FOR FC MODEL), 01-12-02 01-12-02 DASHBOARD COVER (FOR FC MODEL), 01-12-06 01-12-06 DASHBOARD COVER, 01-12-05 01-12-05 UPPER BODY COMMON PARTS
Позиция на схеме Mitsubishi	3, 2, 1
Название на русском	Крышка column upper
