Палец наклона cyl Mitsubishi 9121122300 (PIN, TILT CYL)

Палец наклона cyl Mitsubishi 9121122300 (PIN, TILT CYL)

Палец наклона cyl, 9121122300 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FG10, FGC20K, FB35K, FBC25K, FD15, FBC30N, FG20, 35KPAC, FG25, FBC25KE, FB30K, FD18, FG15, FGC25K, FBC20K, FGC15K, FG18, FD10, FBC25KL, FD25, 30KPAC, FGC18K, FD25K, FOR DIESEL FUEL ONLY, FG18K-G, FG25K, LP FUEL TYPE, FD20, FG15K-LPG, FG20K, LP FUEL TYPE, FG20K, FOR GASOLINE ONLY, FD20K, FOR DIESEL FUEL ONLY, FG18K-LPG, FG25K, FOR GASOLINE ONLY, FG15K-G, FB20K, FBC25N, FBC18K, FB18K, FBC25EN, FBC20N, FBC18N, FB16K, 10KRT, 15KRT, FB20K PAC, FBC15K, FB25K, FBC25LN, FB25K PAC, FGC30K, FBC30K, FB16N, 12KRT, FB20KC, FB18N, FBC15N, FB20CN, FB18NT, FB16NT, FB20NT, FB16KT, FB18KT, FB20KT
Номер по каталогу	9121122300
Бренд	Mitsubishi
Система Mitsubishi	FRAME AND BODY, FRAME & BODY, FRAME BODY
Узел Mitsubishi	01-11-01 01-11-01 FRAME & BODY (PART-1), 01-11-02 01-11-02 FRAME & BODY (PART-2), 01-11-01 01-11-01 FRAME, 01-11-03 01-11-03 CHASSIS ACCESSORY (PART-2), 01-11-02 01-11-02 CHASSIS ACCESSORY, 01-11-06 01-11-06 TILT CYLINDER PIN

Все характеристики

По запросу

Артикул: mt002816-9121122300

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9121122300

Название: PIN, TILT CYL

Название на русском: Палец наклона cyl

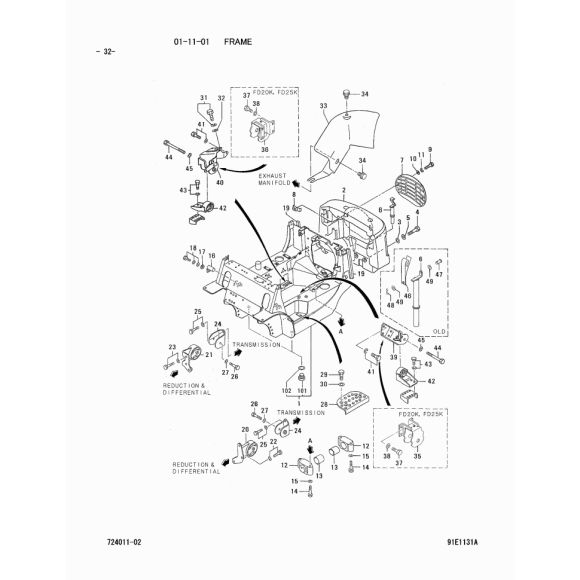

Основная схема: 01-11-01 01-11-01 FRAME. Номер на картинке: 16.

Применяемость: найдено 74 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FG20K, LP FUEL TYPE	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FB16N	FRAME & BODY	01-11-03 01-11-03 CHASSIS ACCESSORY (PART-2)	24	2
30KPAC	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	26	2	RP: 3
FGC30K	FRAME & BODY	01-11-01 01-11-01 FRAME	41	2	RP: 3
FD25	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FBC25KL	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	49	2
FD20K, FOR DIESEL FUEL ONLY	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FBC18K	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	49	2
FG10	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FG20K, FOR GASOLINE ONLY	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FBC25K	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	49	2
FBC20N	FRAME & BODY	01-11-06 01-11-06 TILT CYLINDER PIN	4	2
FG18	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FBC30N	FRAME & BODY	01-11-06 01-11-06 TILT CYLINDER PIN	4	2
FG15K-G	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FG25K, FOR GASOLINE ONLY	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
12KRT	FRAME & BODY	01-11-02 01-11-02 CHASSIS ACCESSORY	43	2
FGC20K	FRAME & BODY	01-11-01 01-11-01 FRAME	41	2	RP: 3
FB18K	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	51	2	RP: 3
FG18K-LPG	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FB18N	FRAME & BODY	01-11-03 01-11-03 CHASSIS ACCESSORY (PART-2)	24	2
FBC20K	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	49	2
FG15	FRAME AND BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
10KRT	FRAME & BODY	01-11-02 01-11-02 CHASSIS ACCESSORY	43	2
FB16K	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	51	2	RP: 3
FB20CN	FRAME & BODY	01-11-03 01-11-03 CHASSIS ACCESSORY (PART-2)	24	2
FG20K, FOR GASOLINE ONLY	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FB20KC	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	51	2	RP: 3
FG20K, LP FUEL TYPE	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FBC15K	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	49	2
FD15	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FBC30K	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	49	2
FG25	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FBC25N	FRAME & BODY	01-11-06 01-11-06 TILT CYLINDER PIN	4	2
FB35K	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	26	2	RP: 3
FB25K	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	25	2	RP: 3
FG18	FRAME AND BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FD20K, FOR DIESEL FUEL ONLY	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FB20NT	FRAME BODY	01-11-03 01-11-03 CHASSIS ACCESSORY (PART-2)	19	2
FBC25KE	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	49	2
FG25K, LP FUEL TYPE	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FBC15N	FRAME & BODY	01-11-06 01-11-06 TILT CYLINDER PIN	4	2
FB20KT	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	38	2	RP: 3
FB20K PAC	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	25	2	RP: 3
FB25K PAC	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	25	2	RP: 3
FG15K-LPG	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FG25K, LP FUEL TYPE	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FB20K	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	25	2	RP: 3
FBC25LN	FRAME & BODY	01-11-06 01-11-06 TILT CYLINDER PIN	4	2
FG15	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FD10	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FD18	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FG10	FRAME AND BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FG18K-G	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FB18KT	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	38	2	RP: 3
35KPAC	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	26	2	RP: 3
FB18NT	FRAME BODY	01-11-03 01-11-03 CHASSIS ACCESSORY (PART-2)	19	2
FBC25EN	FRAME & BODY	01-11-06 01-11-06 TILT CYLINDER PIN	4	2
15KRT	FRAME & BODY	01-11-02 01-11-02 CHASSIS ACCESSORY	43	2
FD15	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FBC18N	FRAME & BODY	01-11-06 01-11-06 TILT CYLINDER PIN	4	2
FB30K	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	26	2	RP: 3
FD20	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FGC25K	FRAME & BODY	01-11-01 01-11-01 FRAME	41	2	RP: 3
FD25K, FOR DIESEL FUEL ONLY	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FB16KT	FRAME & BODY	01-11-01 01-11-01 FRAME & BODY (PART-1)	38	2	RP: 3
FG25K, FOR GASOLINE ONLY	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FGC18K	FRAME & BODY	01-11-01 01-11-01 FRAME	41	2	RP: 3
FD18	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FG20	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3
FB16NT	FRAME BODY	01-11-03 01-11-03 CHASSIS ACCESSORY (PART-2)	19	2
FD25K, FOR DIESEL FUEL ONLY	FRAME & BODY	01-11-01 01-11-01 FRAME	16	2	RP: 3
FGC15K	FRAME & BODY	01-11-01 01-11-01 FRAME	41	2	RP: 3
FD10	FRAME & BODY	01-11-01 01-11-01 FRAME	11	2	RP: 3

Модель техники	FG10, FGC20K, FB35K, FBC25K, FD15, FBC30N, FG20, 35KPAC, FG25, FBC25KE, FB30K, FD18, FG15, FGC25K, FBC20K, FGC15K, FG18, FD10, FBC25KL, FD25, 30KPAC, FGC18K, FD25K, FOR DIESEL FUEL ONLY, FG18K-G, FG25K, LP FUEL TYPE, FD20, FG15K-LPG, FG20K, LP FUEL TYPE, FG20K, FOR GASOLINE ONLY, FD20K, FOR DIESEL FUEL ONLY, FG18K-LPG, FG25K, FOR GASOLINE ONLY, FG15K-G, FB20K, FBC25N, FBC18K, FB18K, FBC25EN, FBC20N, FBC18N, FB16K, 10KRT, 15KRT, FB20K PAC, FBC15K, FB25K, FBC25LN, FB25K PAC, FGC30K, FBC30K, FB16N, 12KRT, FB20KC, FB18N, FBC15N, FB20CN, FB18NT, FB16NT, FB20NT, FB16KT, FB18KT, FB20KT
Номер по каталогу	9121122300
Бренд	Mitsubishi
Система Mitsubishi	FRAME AND BODY, FRAME & BODY, FRAME BODY
Узел Mitsubishi	01-11-01 01-11-01 FRAME & BODY (PART-1), 01-11-02 01-11-02 FRAME & BODY (PART-2), 01-11-01 01-11-01 FRAME, 01-11-03 01-11-03 CHASSIS ACCESSORY (PART-2), 01-11-02 01-11-02 CHASSIS ACCESSORY, 01-11-06 01-11-06 TILT CYLINDER PIN
Позиция на схеме Mitsubishi	4, 19, 25, 11, 26, 24, 16, 38, 43, 49, 41, 51
Название на русском	Палец наклона cyl
