Выключатель operator Mitsubishi 9051407200 (SWITCH, OPERATOR)

Выключатель operator Mitsubishi 9051407200 (SWITCH, OPERATOR)

Выключатель operator, 9051407200 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD15N, FD18N, FD20CN, FG15N, FG18N, FG20CN, FG30N, FD30N, FD35N, FG35N, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FD25N, FD20N, FG25N, FG20N, FB18CPN FB18PN, FB16CPNT FB16PNT, FB18CPNT FB18PNT, FB20PN, FB20PNT, FB15PNT, FB16CPN FB16PN, FB13PNT
Номер по каталогу	9051407200
Бренд	Mitsubishi
Система Mitsubishi	FRAME & BODY, SEAT
Узел Mitsubishi	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION), 01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE), 01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE), 01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL), 01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL), 01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION), 01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL)

Все характеристики

По запросу

Артикул: mt004059-9051407200

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9051407200

Название: SWITCH, OPERATOR

Название на русском: Выключатель operator

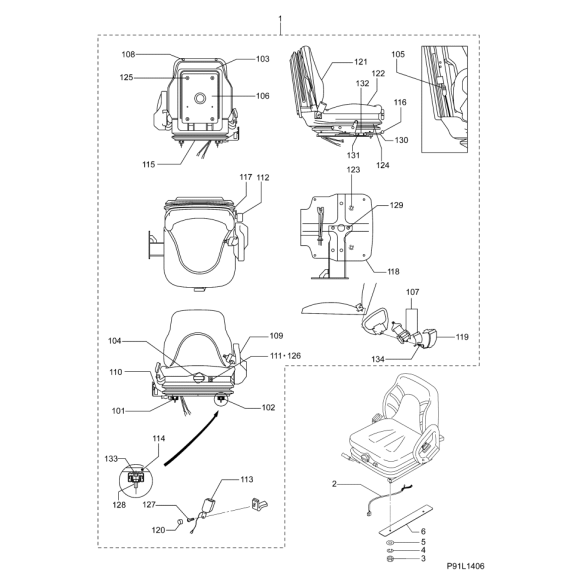

Основная схема: 01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION). Номер на картинке: 105.

Применяемость: найдено 92 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FG55N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION)	105	1
FB13PNT	Seat	01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE)	105	1	RP: 3
FB13PNT	Seat	01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE)	105	1	RP: 3
FB20PNT	Seat	01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE)	105	1	RP: 3
FB18CPN FB18PN	Seat	01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE)	105	1	RP: 3
FD18N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FD35N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FG50N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION)	105	1
FD18N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FG20N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FG50CN	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FG25N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FB20PN	Seat	01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE)	105	1	RP: 3 \| 01 SN 2015-08-* \| 02 SN 2015-08-* \| 03 SN 2015-08-*
FD20N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FD50N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION)	105	1
FB16CPNT FB16PNT	Seat	01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE)	105	1	RP: 3
FG30N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FB18CPNT FB18PNT	Seat	01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE)	105	1	RP: 3
FD15N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FG15N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FD30N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FD20N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FG25N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FG25N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FG25N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FG50N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FG20N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FB15PNT	Seat	01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE)	105	1	RP: 3
FB18CPNT FB18PNT	Seat	01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE)	105	1	RP: 3
FD55N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION)	105	1
FD20CN	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FG20CN	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FG18N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FG20CN	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FB15PNT	Seat	01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE)	105	1	RP: 3
FD50N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FD40N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FG45N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FB16CPNT FB16PNT	Seat	01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE)	105	1	RP: 3
FD25N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FD35N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FD55N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FG35N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FB18CPN FB18PN	Seat	01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE)	105	1	RP: 3 \| 01 SN 2015-08-* \| 02 SN 2015-08-* \| 03 SN 2015-08-*
FG20CN	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FG18N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FG15N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FG18N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FD35N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FD15N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FD35N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FB16CPN FB16PN	Seat	01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE)	105	1	RP: 3
FG15N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FD45N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION)	105	1
FG30N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FD40N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION)	105	1
FD20N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FD30N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FD15N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FD18N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FD30N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FB20PNT	Seat	01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE)	105	1	RP: 3
FD25N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FD50CN	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION)	105	1
FD15N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FG18N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FB20PN	Seat	01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE)	105	1	RP: 3
FB16CPN FB16PN	Seat	01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE)	105	1	RP: 3 \| 01 SN 2015-08-* \| 02 SN 2015-08-* \| 03 SN 2015-08-*
FD50CN	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FD25N	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*
FG35N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FD45N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FG50CN	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION)	105	1
FG20CN	FRAME & BODY	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FD25N	Frame & Body	01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL)	105	1
FG20N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FG55N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION)	105	1
FG15N	Frame & Body	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1
FD20CN	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-* \| 03 SN 2012-03-*
FG35N	FRAME & BODY	01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL)	105	1	CNG: A \| 01 SN 2012-03-* \| 02 SN 2012-03-*

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FD15N, FD18N, FD20CN, FG15N, FG18N, FG20CN, FG30N, FD30N, FD35N, FG35N, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN, FD25N, FD20N, FG25N, FG20N, FB18CPN FB18PN, FB16CPNT FB16PNT, FB18CPNT FB18PNT, FB20PN, FB20PNT, FB15PNT, FB16CPN FB16PN, FB13PNT
Номер по каталогу	9051407200
Бренд	Mitsubishi
Система Mitsubishi	FRAME & BODY, SEAT
Узел Mitsubishi	01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL) (OPTION), 01-14-04 01-14-04 SEAT (FOR MC MODEL) (NEW TYPE), 01-14-02 01-14-02 SEAT (FOR FC MODEL) (NEW TYPE), 01-14-01 01-14-01 SEAT ASSY (FOR MC MODEL), 01-14-02 01-14-02 SEAT ASSY (FOR FC MODEL), 01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL) (OPTION), 01-14-02 01-14-02 SEAT ASSY (FOR MC MODEL)
Позиция на схеме Mitsubishi	105
Название на русском	Выключатель operator
