HYDRAULIC SYSTEM
Flow reg клапан узел в сборе Mitsubishi 5903825010 (FLOW REG,VALVE ASSY)

Flow reg клапан узел в сборе Mitsubishi 5903825010 (FLOW REG,VALVE ASSY)

Flow reg клапан узел в сборе, 5903825010 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD45N1, FD40N1, FD50CNM1, FD50CN1, FD40NM1, FD45NM1, FD50CN, FD40N, FG45N, FD45N, FG40N, FG50CN
Номер по каталогу	5903825010
Бренд	Mitsubishi
Система Mitsubishi	OPTION, HYDRAULIC SYSTEM
Узел Mitsubishi	01-75-03 01-75-03 HYD LIFT CIRCUIT, 01-75-03 01-75-03 HYD LIFT CIRCUIT (UPTO 2014-02), 01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FD40N-50CN) (UPTO 2014-02), 01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FG40N-50CN) (UPTO 2014-02), 01-75-11 01-75-11 TILT AUTO LEVLG SYS KIT FLOW (OPTION) REG VALVE FG50N,55N, 03-75-06 03-75-06 TILT AUTO LEVLG SYS KIT FLOW REG VALVE FG50N,55N

Все характеристики

По запросу

Артикул: mt004095-5903825010

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 5903825010

Название: FLOW REG,VALVE ASSY

Название на русском: Flow reg клапан узел в сборе

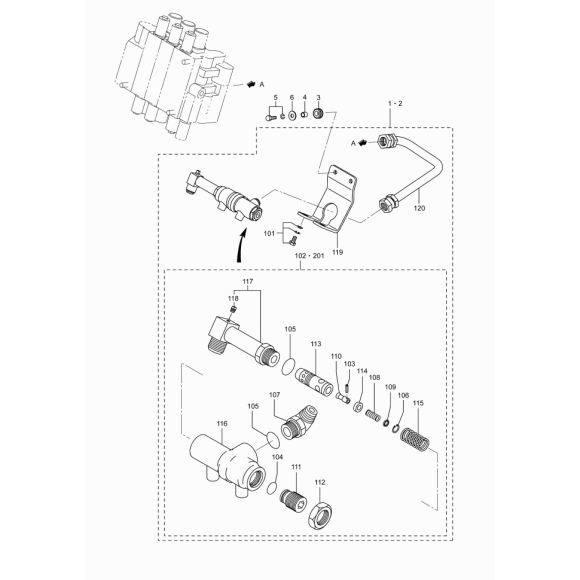

Основная схема: 01-75-03 01-75-03 HYD LIFT CIRCUIT (UPTO 2014-02). Номер на картинке: 201.

Применяемость: найдено 25 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD45N	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (UPTO 2014-02)	201	1	01 SN - \| 02 SN -
FD40N1	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT	201	1	01 SN - \| 02 SN - \| 03 SN -
FD50CN	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FD40N-50CN) (UPTO 2014-02)	201	1	01 SN - \| 02 SN - \| 03 SN -
FD50CN1	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT	201	1	01 SN - \| 02 SN - \| 03 SN -
FD50CNM1	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT	201	1	01 SN - \| 02 SN - \| 03 SN -
FG45N	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (UPTO 2014-02)	201	1	01 SN - \| 02 SN -
FD50CN	HYDRAULIC SYSTEM	01-75-11 01-75-11 TILT AUTO LEVLG SYS KIT FLOW (OPTION) REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FG45N	OPTION	03-75-06 03-75-06 TILT AUTO LEVLG SYS KIT FLOW REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FG40N	HYDRAULIC SYSTEM	01-75-11 01-75-11 TILT AUTO LEVLG SYS KIT FLOW (OPTION) REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FG50CN	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FG40N-50CN) (UPTO 2014-02)	201	1	01 SN - \| 02 SN - \| 03 SN -
FG50CN	OPTION	03-75-06 03-75-06 TILT AUTO LEVLG SYS KIT FLOW REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FD45NM1	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT	201	1	01 SN - \| 02 SN - \| 03 SN -
FG50CN	HYDRAULIC SYSTEM	01-75-11 01-75-11 TILT AUTO LEVLG SYS KIT FLOW (OPTION) REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FD45N1	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT	201	1	01 SN - \| 02 SN - \| 03 SN -
FG45N	HYDRAULIC SYSTEM	01-75-11 01-75-11 TILT AUTO LEVLG SYS KIT FLOW (OPTION) REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FD40N	HYDRAULIC SYSTEM	01-75-11 01-75-11 TILT AUTO LEVLG SYS KIT FLOW (OPTION) REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FG40N	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FG40N-50CN) (UPTO 2014-02)	201	1	01 SN - \| 02 SN - \| 03 SN -
FG40N	OPTION	03-75-06 03-75-06 TILT AUTO LEVLG SYS KIT FLOW REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FD40N	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FD40N-50CN) (UPTO 2014-02)	201	1	01 SN - \| 02 SN - \| 03 SN -
FD40NM1	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT	201	1	01 SN - \| 02 SN - \| 03 SN -
FD40N	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (UPTO 2014-02)	201	1	01 SN - \| 02 SN -
FD45N	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FD40N-50CN) (UPTO 2014-02)	201	1	01 SN - \| 02 SN - \| 03 SN -
FD45N	HYDRAULIC SYSTEM	01-75-11 01-75-11 TILT AUTO LEVLG SYS KIT FLOW (OPTION) REG VALVE FG50N,55N	202	1	01 SN - \| 02 SN - \| 03 SN -
FG45N	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FG40N-50CN) (UPTO 2014-02)	201	1	01 SN - \| 02 SN - \| 03 SN -
FG40N	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYD LIFT CIRCUIT (UPTO 2014-02)	201	1	01 SN - \| 02 SN -

Модель техники	FD45N1, FD40N1, FD50CNM1, FD50CN1, FD40NM1, FD45NM1, FD50CN, FD40N, FG45N, FD45N, FG40N, FG50CN
Номер по каталогу	5903825010
Бренд	Mitsubishi
Система Mitsubishi	OPTION, HYDRAULIC SYSTEM
Узел Mitsubishi	01-75-03 01-75-03 HYD LIFT CIRCUIT, 01-75-03 01-75-03 HYD LIFT CIRCUIT (UPTO 2014-02), 01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FD40N-50CN) (UPTO 2014-02), 01-75-03 01-75-03 HYD LIFT CIRCUIT (FOR FG40N-50CN) (UPTO 2014-02), 01-75-11 01-75-11 TILT AUTO LEVLG SYS KIT FLOW (OPTION) REG VALVE FG50N,55N, 03-75-06 03-75-06 TILT AUTO LEVLG SYS KIT FLOW REG VALVE FG50N,55N
Позиция на схеме Mitsubishi	201, 202
Название на русском	Flow reg клапан узел в сборе
