HYDRAULIC SYSTEM
Inlet клапан узел в сборе клапан узел в сборе inlet Mitsubishi 91B7324023 (INLET VALVE ASSY VALVE ASSY, INLET)

Inlet клапан узел в сборе клапан узел в сборе inlet Mitsubishi 91B7324023 (INLET VALVE ASSY VALVE ASSY, INLET)

Обзор
Характеристики
Отзывы0

Каталожный номер: 91B7324023

Название: INLET VALVE ASSY VALVE ASSY, INLET

Название на русском: Inlet клапан узел в сборе клапан узел в сборе inlet

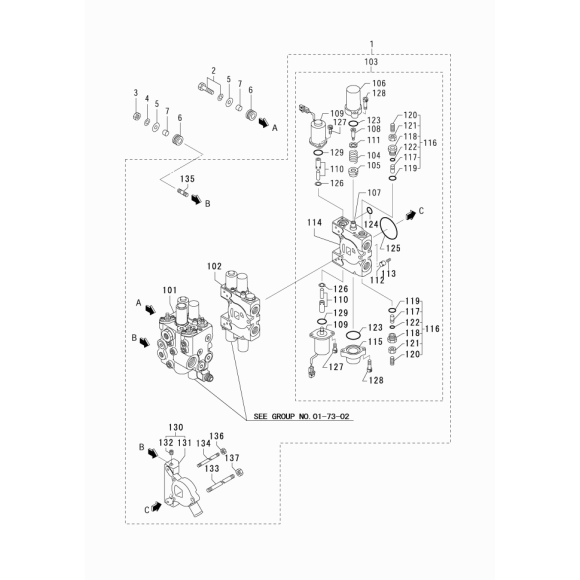

Основная схема: 01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL). Номер на картинке: 101.

Применяемость: найдено 24 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FG30N	HYDRAULIC SYSTEM	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL)	101	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FG30N	HYDRAULIC SYSTEM	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL)	101	1
FG35N	HYDRAULIC SYSTEM	01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL)	101	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FD30N	HYDRAULIC SYSTEM	01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL)	101	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FG30N	HYDRAULIC SYSTEM	01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)	1	1
FG35N	HYDRAULIC SYSTEM	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL)	101	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FD30N	HYDRAULIC SYSTEM	01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)	1	1
FD30N	HYDRAULIC SYSTEM	01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL)	101	1
FG30N	HYDRAULIC SYSTEM	01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL)	101	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FD35N	HYDRAULIC SYSTEM	01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL)	101	1
FG35N	HYDRAULIC SYSTEM	01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FG35N	HYDRAULIC SYSTEM	01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL)	101	1
FG30N	HYDRAULIC SYSTEM	01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL)	101	1
FG35N	HYDRAULIC SYSTEM	01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)	1	1
FG30N	HYDRAULIC SYSTEM	01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FD35N	HYDRAULIC SYSTEM	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL)	101	1
FD30N	HYDRAULIC SYSTEM	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL)	101	1
FD30N	HYDRAULIC SYSTEM	01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FD35N	HYDRAULIC SYSTEM	01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)	1	1
FD35N	HYDRAULIC SYSTEM	01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)	1	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FD35N	HYDRAULIC SYSTEM	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL)	101	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FD30N	HYDRAULIC SYSTEM	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL)	101	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FD35N	HYDRAULIC SYSTEM	01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL)	101	1	CNG: C \| 01 SN -2006-08 \| 02 SN -2006-08
FG35N	HYDRAULIC SYSTEM	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL)	101	1

Модель техники	FG30N, FD30N, FD35N, FG35N
Номер по каталогу	91B7324023
Бренд	Mitsubishi
Система Mitsubishi	HYDRAULIC SYSTEM
Узел Mitsubishi	01-73-01 01-73-01 CONTROL VALVE (3 VALVES)PART-1 (FOR FC MODEL), 01-73-03 01-73-03 CONTROL VALVE (4 VALVES) (FOR FC MODEL), 01-73-02 01-73-02 CONTROL VALVE (3 VALVES)PART-2 (FOR FC MODEL)
Позиция на схеме Mitsubishi	1, 101
Название на русском	Inlet клапан узел в сборе клапан узел в сборе inlet
