Plug 3V Mitsubishi 9317200100 (PLUG 3V)

Plug 3V Mitsubishi 9317200100 (PLUG 3V)

Plug 3V, 9317200100 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FGC30-G, FGC20K, FGC30-LPG, FB35K, FBC15, FGC28N, FGC20-LPG, 35KPAC, FB30K, FGC30N, FGC33N, FGC25K, FGC25-G/LPG, FGC25-G, FGC15K, FGC30-G/LPG, FGC20-G/LPG, FGC25-LPG, FBC25, FBC20, 30KPAC, FGC18K, FGC20-G, FGC55K STC-LPG, FGC30, FGC20CN, FGC45K-LPG, FGC20, FGC15N, FGC15, FGC18N, FGC35K-LPG, FGC25N, FDC25, FDC30, FGC55K-LPG, FGC40K(STC)-LPG, FGC60K-LPG, FGC45K C-LPG, FGC70K (STC) LPG, FGC20N, FGC10, FGC25, FDC20, FD150NA1, FD135NM1, FD135N1, FD160NA1, FD120NM1, FD120N1, FD150ANM1, FD100NM1, FD135NM1(S), FD150ANM1(S), FD120NM1(S), FD100N1, FD100NM1(S), FGC15-G/LPG, FB20K, FB18K, FGC15-G, FB16K, 10KRT, 15KRT, FB20K PAC, FB12KRT, FB25K, FB10KRT, FB25K PAC, FGC30K, FB15KRT, FGC18-G/LPG, FB16N, 12KRT, FB20KC, FB18N, FB20CN, FGC18-LPG, FGC15-LPG, FGC18-G, FGC20N-HO, FB18NT, FGC25N-HO, FB16NT, FB20NT, FB16KT, FB18KT, FB20KT, FBC30
Номер по каталогу	9317200100
Бренд	Mitsubishi
Система Mitsubishi	HYDRAULIC SYSTEM, FRAME & BODY, FUEL SYSTEM
Узел Mitsubishi	01-75-02 01-75-02 HYDRAULIC LINE (PART-2), 01-11-02 01-11-02 FRAME & BODY (PART-2), 01-75-03 01-75-03 HYDRAULIC LINE (PART-3), HYDRAULIC HYDRAULIC LINE, 01-75-02 01-75-02 ATTACHMENT VALVE PIPING, 01-75-01 01-75-01 HYDRAULIC LINE (PART-3), HYDRAULIC HYDRAULIC CONTROL, 01-15-02 01-15-02 HEAD GUARD, 01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF87, 01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF88A, 01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF88, 01-64-01A 01-64-01A FUEL SYS(GASOLINE TANK)(upto 2003-12) SERIAL PREFIX:AF8, 01-64-01B 01-64-01B FUEL SYS(GASOLINE TANK)(from 2004-01) SERIAL PREFIX:AF8A, 01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF87A, 01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF89, 01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF8, 01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF89A, 01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF8A, 01-75-05 01-75-05 ATTACHMENT PIPING, 01-75-05 01-75-05 ATTACHMENT VALVE PIPING, 01-75-06 01-75-06 ATTACHMENT VALVE PIPING, 01-75-05 01-75-05 HYDRAULIC ATTACHMENT CIRCUIT, 01-15-02 01-15-02 HEAD GUARD COMMON PARTS (PART-2)

Все характеристики

По запросу

Артикул: mt003063-9317200100

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9317200100

Название: PLUG 3V

Название на русском: Plug 3V

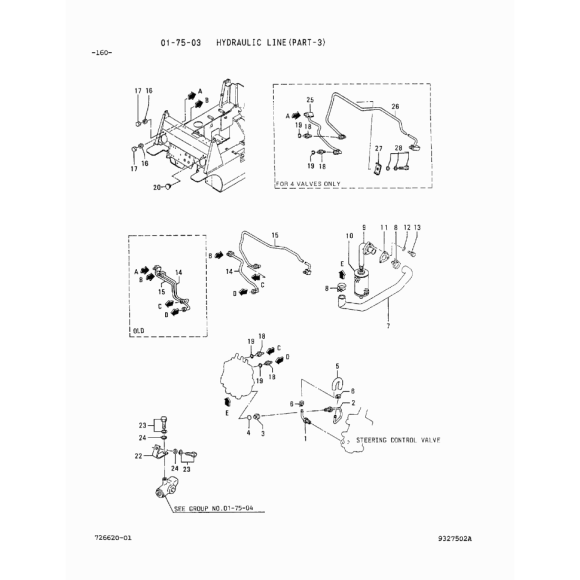

Основная схема: 01-75-01 01-75-01 HYDRAULIC LINE (PART-3). Номер на картинке: 20.

Применяемость: найдено 131 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FGC25-G	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
FGC30-LPG	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
12KRT	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	31	4	CNG: A \| 01 SN 2002-04-* \| 02 SN 2002-04-* \| 03 SN 2002-04-*
15KRT	HYDRAULIC SYSTEM	01-75-02 01-75-02 ATTACHMENT VALVE PIPING	1	4
15KRT	HYDRAULIC SYSTEM	01-75-02 01-75-02 ATTACHMENT VALVE PIPING	1	2
FGC35K-LPG	FUEL SYSTEM	01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF87	38	1	04 SN - \| 05 SN -
FGC15-G/LPG	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
FGC55K STC-LPG	FUEL SYSTEM	01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF88A	47	1	03 SN - \| 04 SN -
FGC55K-LPG	FUEL SYSTEM	01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF88	39	1	03 SN - \| 04 SN -
FGC28N	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT PIPING	4	2
10KRT	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	31	4	CNG: A \| 01 SN 2002-04-* \| 02 SN 2002-04-* \| 03 SN 2002-04-*
FD135NM1(S)	FRAME & BODY	01-15-02 01-15-02 HEAD GUARD	2	1
FB25K PAC	HYDRAULIC SYSTEM	01-75-02 01-75-02 HYDRAULIC LINE (PART-2)	36	4
FB20K	HYDRAULIC SYSTEM	01-75-02 01-75-02 HYDRAULIC LINE (PART-2)	36	4
FBC20	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC LINE	24	2
FB20K PAC	HYDRAULIC SYSTEM	01-75-02 01-75-02 HYDRAULIC LINE (PART-2)	36	4
FGC20N-HO	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT PIPING	4	2
FB20NT	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT VALVE PIPING	16	2
FB20NT	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT VALVE PIPING	16	4
FGC25-G/LPG	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
FD150ANM1(S)	FRAME & BODY	01-15-02 01-15-02 HEAD GUARD	2	1
FGC18N	HYDRAULIC SYSTEM	01-75-05 01-75-05 HYDRAULIC ATTACHMENT CIRCUIT	7	2
FD150NA1	FRAME & BODY	01-15-02 01-15-02 HEAD GUARD COMMON PARTS (PART-2)	2	1
FGC45K C-LPG	FUEL SYSTEM	01-64-01B 01-64-01B FUEL SYS(GASOLINE TANK)(from 2004-01) SERIAL PREFIX:AF8A	47	1	03 SN - \| 04 SN -
FBC25	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC LINE	24	2
FDC25	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	4	01 SN - \| 02 SN - \| 03 SN -
FDC25	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	2	RP: N
FGC25	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	4	01 SN --97 \| 02 SN --50701 \| 03 SN --466 \| 04 SN --51006 \| 05 SN *--157
FGC25	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	2	RP: N \| 01 SN 00098--* \| 02 SN 50702--* \| 03 SN 00467--* \| 04 SN 51007--* \| 05 SN 00158--*
FGC40K(STC)-LPG	FUEL SYSTEM	01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF87A	47	1	04 SN - \| 05 SN -
FB20KT	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT VALVE PIPING	14	2
FGC20N	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT PIPING	4	2
FGC70K (STC) LPG	FUEL SYSTEM	01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF89	38	1	04 SN - \| 05 SN -
FGC18K	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYDRAULIC LINE (PART-3)	23	2
FGC25N-HO	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT PIPING	4	2
FB18K	HYDRAULIC SYSTEM	01-75-02 01-75-02 HYDRAULIC LINE (PART-2)	34	2
FBC15	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC LINE	24	2
FB18N	HYDRAULIC SYSTEM	01-75-06 01-75-06 ATTACHMENT VALVE PIPING	16	4
FB18N	HYDRAULIC SYSTEM	01-75-06 01-75-06 ATTACHMENT VALVE PIPING	16	2
FD120NM1	FRAME & BODY	01-15-02 01-15-02 HEAD GUARD	2	1
FGC20-LPG	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
FB25K	HYDRAULIC SYSTEM	01-75-02 01-75-02 HYDRAULIC LINE (PART-2)	36	4
FD100NM1	FRAME & BODY	01-15-02 01-15-02 HEAD GUARD	2	1
FGC30-G/LPG	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
FB16KT	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYDRAULIC LINE (PART-3)	31	4	CNG: E
FGC45K C-LPG	FUEL SYSTEM	01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF8	41	1	03 SN - \| 04 SN -
FGC15-G	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
30KPAC	HYDRAULIC SYSTEM	01-75-02 01-75-02 HYDRAULIC LINE (PART-2)	34	2
FD135NM1	FRAME & BODY	01-15-02 01-15-02 HEAD GUARD	2	1
FGC25-LPG	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
FGC20-G	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
FGC45K C-LPG	FUEL SYSTEM	01-64-01A 01-64-01A FUEL SYS(GASOLINE TANK)(upto 2003-12) SERIAL PREFIX:AF8	41	1	03 SN - \| 04 SN -
FD100N1	FRAME & BODY	01-15-02 01-15-02 HEAD GUARD COMMON PARTS (PART-2)	2	1
FB10KRT	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	31	4	CNG: A \| 01 SN 2002-04-* \| 02 SN 2002-04-* \| 03 SN 2002-04-*
FB10KRT	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	31	2	CNG: A \| 01 SN 2002-04-* \| 02 SN 2002-04-* \| 03 SN 2002-04-*
FGC60K-LPG	FUEL SYSTEM	01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF89A	46	1	04 SN - \| 05 SN -
FGC10	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	4	01 SN --97 \| 02 SN --50701 \| 03 SN --466 \| 04 SN --51006 \| 05 SN *--157
FGC10	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	2	RP: N \| 01 SN 00098--* \| 02 SN 50702--* \| 03 SN 00467--* \| 04 SN 51007--* \| 05 SN 00158--*
FGC55K-LPG	FUEL SYSTEM	01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF88A	47	1	03 SN - \| 04 SN -
FGC33N	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT PIPING	4	2
FGC33N	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT PIPING	11	2
FB16KT	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT VALVE PIPING	14	2
FGC20	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	4	01 SN --97 \| 02 SN --50701 \| 03 SN --466 \| 04 SN --51006 \| 05 SN *--157
FGC20	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	2	RP: N \| 01 SN 00098--* \| 02 SN 50702--* \| 03 SN 00467--* \| 04 SN 51007--* \| 05 SN 00158--*
FGC45K C-LPG	FUEL SYSTEM	01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF8A	47	1	03 SN - \| 04 SN -
FDC30	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	4	01 SN - \| 02 SN - \| 03 SN -
FDC30	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	2	RP: N
FB18KT	HYDRAULIC SYSTEM	01-75-03 01-75-03 HYDRAULIC LINE (PART-3)	31	4	CNG: E
FGC18-G	HYDRAULIC SYSTEM	01-75-01 01-75-01 HYDRAULIC LINE (PART-3)	20	2
FB12KRT	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	31	4	CNG: A \| 01 SN 2002-04-* \| 02 SN 2002-04-* \| 03 SN 2002-04-*
FB12KRT	FRAME & BODY	01-11-02 01-11-02 FRAME & BODY (PART-2)	31	2	CNG: A \| 01 SN 2002-04-* \| 02 SN 2002-04-* \| 03 SN 2002-04-*
FGC25N	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT PIPING	4	2
FGC45K-LPG	FUEL SYSTEM	01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF8	41	1	03 SN - \| 04 SN -
FB20KC	HYDRAULIC SYSTEM	01-75-02 01-75-02 HYDRAULIC LINE (PART-2)	34	2
FB18NT	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT VALVE PIPING	16	2
FB18NT	HYDRAULIC SYSTEM	01-75-05 01-75-05 ATTACHMENT VALVE PIPING	16	4
12KRT	HYDRAULIC SYSTEM	01-75-02 01-75-02 ATTACHMENT VALVE PIPING	1	4
12KRT	HYDRAULIC SYSTEM	01-75-02 01-75-02 ATTACHMENT VALVE PIPING	1	2
FGC30	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	4	01 SN --97 \| 02 SN --50701 \| 03 SN --466 \| 04 SN --51006 \| 05 SN *--157
FGC30	HYDRAULIC SYSTEM	HYDRAULIC HYDRAULIC CONTROL	12	2	RP: N \| 01 SN 00098--* \| 02 SN 50702--* \| 03 SN 00467--* \| 04 SN 51007--* \| 05 SN 00158--*

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FGC30-G, FGC20K, FGC30-LPG, FB35K, FBC15, FGC28N, FGC20-LPG, 35KPAC, FB30K, FGC30N, FGC33N, FGC25K, FGC25-G/LPG, FGC25-G, FGC15K, FGC30-G/LPG, FGC20-G/LPG, FGC25-LPG, FBC25, FBC20, 30KPAC, FGC18K, FGC20-G, FGC55K STC-LPG, FGC30, FGC20CN, FGC45K-LPG, FGC20, FGC15N, FGC15, FGC18N, FGC35K-LPG, FGC25N, FDC25, FDC30, FGC55K-LPG, FGC40K(STC)-LPG, FGC60K-LPG, FGC45K C-LPG, FGC70K (STC) LPG, FGC20N, FGC10, FGC25, FDC20, FD150NA1, FD135NM1, FD135N1, FD160NA1, FD120NM1, FD120N1, FD150ANM1, FD100NM1, FD135NM1(S), FD150ANM1(S), FD120NM1(S), FD100N1, FD100NM1(S), FGC15-G/LPG, FB20K, FB18K, FGC15-G, FB16K, 10KRT, 15KRT, FB20K PAC, FB12KRT, FB25K, FB10KRT, FB25K PAC, FGC30K, FB15KRT, FGC18-G/LPG, FB16N, 12KRT, FB20KC, FB18N, FB20CN, FGC18-LPG, FGC15-LPG, FGC18-G, FGC20N-HO, FB18NT, FGC25N-HO, FB16NT, FB20NT, FB16KT, FB18KT, FB20KT, FBC30
Номер по каталогу	9317200100
Бренд	Mitsubishi
Система Mitsubishi	HYDRAULIC SYSTEM, FRAME & BODY, FUEL SYSTEM
Узел Mitsubishi	01-75-02 01-75-02 HYDRAULIC LINE (PART-2), 01-11-02 01-11-02 FRAME & BODY (PART-2), 01-75-03 01-75-03 HYDRAULIC LINE (PART-3), HYDRAULIC HYDRAULIC LINE, 01-75-02 01-75-02 ATTACHMENT VALVE PIPING, 01-75-01 01-75-01 HYDRAULIC LINE (PART-3), HYDRAULIC HYDRAULIC CONTROL, 01-15-02 01-15-02 HEAD GUARD, 01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF87, 01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF88A, 01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF88, 01-64-01A 01-64-01A FUEL SYS(GASOLINE TANK)(upto 2003-12) SERIAL PREFIX:AF8, 01-64-01B 01-64-01B FUEL SYS(GASOLINE TANK)(from 2004-01) SERIAL PREFIX:AF8A, 01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF87A, 01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF89, 01-64-01A 01-64-01A FUEL SYS (GASOLINE TANK) (UP TO 2003-12) SERIAL PREFIX:AF8, 01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF89A, 01-64-01B 01-64-01B FUEL SYS (GASOLINE TANK) (FROM 2004-01) SERIAL PREFIX:AF8A, 01-75-05 01-75-05 ATTACHMENT PIPING, 01-75-05 01-75-05 ATTACHMENT VALVE PIPING, 01-75-06 01-75-06 ATTACHMENT VALVE PIPING, 01-75-05 01-75-05 HYDRAULIC ATTACHMENT CIRCUIT, 01-15-02 01-15-02 HEAD GUARD COMMON PARTS (PART-2)
Позиция на схеме Mitsubishi	4, 23, 14, 7, 2, 34, 20, 11, 1, 12, 24, 31, 16, 38, 36, 39, 41, 46, 47
Название на русском	Plug 3V

Plug 3V Mitsubishi 9317200100 (PLUG 3V) отзывы
