Кронштейн узел в сборе l h кронштейн узел в сборе l h Mitsubishi 9431012020 (BRACKET ASSY L.H BRACKET ASSY,L.H.)

Кронштейн узел в сборе l h кронштейн узел в сборе l h Mitsubishi 9431012020 (BRACKET ASSY L.H BRACKET ASSY,L.H.)

Кронштейн узел в сборе l h кронштейн узел в сборе l h, 9431012020 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD35K, FG30N, FD30N, FBP18, FG35A, FB35K, FD35N, FD35A, 35KPAC, FBP25, FBP16, FD30K, FG35N, FG35K-LPG, FG30K-LPG, FG30K-G, FBP20, FG35K-G
Номер по каталогу	9431012020
Бренд	Mitsubishi
Система Mitsubishi	MAST COMMON PARTS
Узел Mitsubishi	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C), MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST), 02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4Y30C & 4Y35C), 02-10-04 02-10-04 MAST COMMON PARTS (PART-1) (FOR 4M30C,35C37-70)

Все характеристики

По запросу

Артикул: mt003675-9431012020

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9431012020

Название: BRACKET ASSY L.H BRACKET ASSY,L.H.

Название на русском: Кронштейн узел в сборе l h кронштейн узел в сборе l h

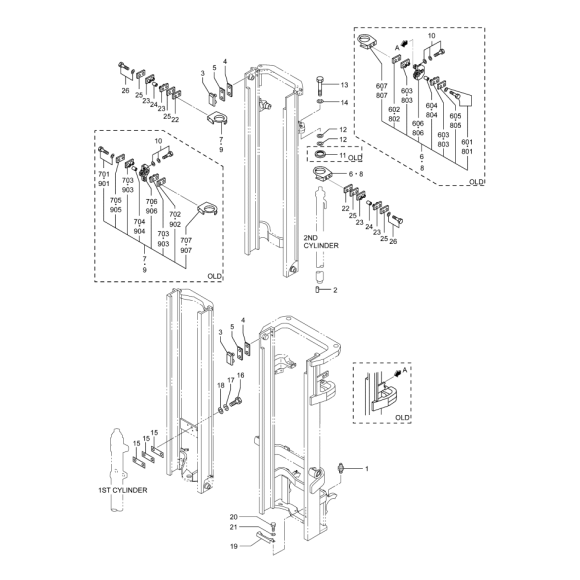

Основная схема: 02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C). Номер на картинке: 6.

Применяемость: найдено 22 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD30N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	6	1	CNG: C \| 01 SN -2009-11 \| 02 SN -*
FG35N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	6	1	CNG: C \| 01 SN -2009-11 \| 02 SN -*
FD35N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	6	1	CNG: C \| 01 SN -2009-11 \| 02 SN -*
35KPAC	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4Y30C & 4Y35C)	8	1	02 SN - \| 04 SN -
FD35N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	6	1	02 SN -
FBP25	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	11	1	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG35N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	6	1	02 SN -
FG30K-G	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	8	1	RP: G \| 01 SN 1999-02-* \| 02 SN 1999-02-* \| 03 SN - \| 04 SN - \| 05 SN 1999-02-* \| 06 SN -
FB35K	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4Y30C & 4Y35C)	8	1	02 SN - \| 04 SN -
FD30K	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	8	1	RP: G \| 01 SN 1999-02-* \| 02 SN 1999-02-* \| 03 SN - \| 04 SN - \| 05 SN 1999-02-* \| 06 SN -
FG35K-G	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	8	1	RP: G \| 01 SN 1999-02-* \| 02 SN 1999-02-* \| 03 SN - \| 04 SN - \| 05 SN 1999-02-* \| 06 SN -
FD35K	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	8	1	RP: G \| 01 SN 1999-02-* \| 02 SN 1999-02-* \| 03 SN - \| 04 SN - \| 05 SN 1999-02-* \| 06 SN -
FG30K-LPG	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	8	1	RP: G \| 01 SN 1999-02-* \| 02 SN 1999-02-* \| 03 SN - \| 04 SN - \| 05 SN 1999-02-* \| 06 SN -
FG30N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	6	1	CNG: C \| 01 SN -2009-11 \| 02 SN -*
FG35K-LPG	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	8	1	RP: G \| 01 SN 1999-02-* \| 02 SN 1999-02-* \| 03 SN - \| 04 SN - \| 05 SN 1999-02-* \| 06 SN -
FD35N	MAST COMMON PARTS	02-10-04 02-10-04 MAST COMMON PARTS (PART-1) (FOR 4M30C,35C37-70)	6	1	02 SN -
FBP20	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	11	1	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD35A	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	8	1	03 SN - \| 04 SN -
FBP18	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	11	1	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FBP16	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	11	1	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG35A	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	8	1	03 SN - \| 04 SN -
FG35N	MAST COMMON PARTS	02-10-04 02-10-04 MAST COMMON PARTS (PART-1) (FOR 4M30C,35C37-70)	6	1	02 SN -

Модель техники	FD35K, FG30N, FD30N, FBP18, FG35A, FB35K, FD35N, FD35A, 35KPAC, FBP25, FBP16, FD30K, FG35N, FG35K-LPG, FG30K-LPG, FG30K-G, FBP20, FG35K-G
Номер по каталогу	9431012020
Бренд	Mitsubishi
Система Mitsubishi	MAST COMMON PARTS
Узел Mitsubishi	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C), MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST), 02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4Y30C & 4Y35C), 02-10-04 02-10-04 MAST COMMON PARTS (PART-1) (FOR 4M30C,35C37-70)
Позиция на схеме Mitsubishi	8, 11, 6
Название на русском	Кронштейн узел в сборе l h кронштейн узел в сборе l h
