Кронштейн узел в сборе l h кронштейн узел в сборе l h Mitsubishi 9431012040 (BRACKET ASSY L.H BRACKET ASSY,L.H.)

Кронштейн узел в сборе l h кронштейн узел в сборе l h Mitsubishi 9431012040 (BRACKET ASSY L.H BRACKET ASSY,L.H.)

Кронштейн узел в сборе l h кронштейн узел в сборе l h, 9431012040 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD35K, FG30N, FD30N, FD30, FD35N, FG30, FB30K, FD30K, FG35N, FG35K-LPG, FG30K-LPG, FG30K-G, FG35K-G, 30KPAC
Номер по каталогу	9431012040
Бренд	Mitsubishi
Система Mitsubishi	MAST COMMON PARTS
Узел Mitsubishi	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C), MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST), 02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4Y30C & 4Y35C), 02-10-04 02-10-04 MAST COMMON PARTS (PART-1) (FOR 4M30C,35C37-70)

Все характеристики

По запросу

Артикул: mt003680-9431012040

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9431012040

Название: BRACKET ASSY L.H BRACKET ASSY,L.H.

Название на русском: Кронштейн узел в сборе l h кронштейн узел в сборе l h

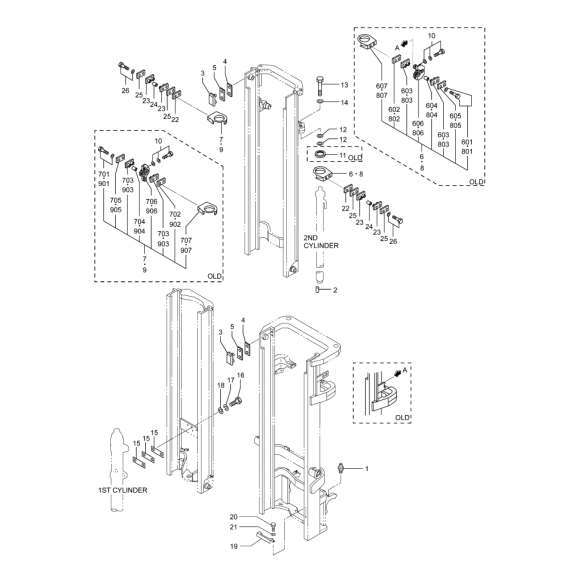

Основная схема: 02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C). Номер на картинке: 8.

Применяемость: найдено 18 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD30N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	8	1	CNG: C \| 01 SN - \| 02 SN *-2009-11
FG35N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	8	1	CNG: C \| 01 SN - \| 02 SN *-2009-11
FD35N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	8	1	CNG: C \| 01 SN - \| 02 SN *-2009-11
FG30K-G	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	10	1	RP: G \| 01 SN - \| 02 SN - \| 03 SN 1999-02-* \| 04 SN 1999-02-* \| 05 SN - \| 06 SN 1999-02-*
FG30	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	10	1	01 SN - \| 02 SN -
FG30N	MAST COMMON PARTS	02-10-04 02-10-04 MAST COMMON PARTS (PART-1) (FOR 4M30C,35C37-70)	8	1	01 SN -
FD30K	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	10	1	RP: G \| 01 SN - \| 02 SN - \| 03 SN 1999-02-* \| 04 SN 1999-02-* \| 05 SN - \| 06 SN 1999-02-*
FG35K-G	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	10	1	RP: G \| 01 SN - \| 02 SN - \| 03 SN 1999-02-* \| 04 SN 1999-02-* \| 05 SN - \| 06 SN 1999-02-*
FD35K	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	10	1	RP: G \| 01 SN - \| 02 SN - \| 03 SN 1999-02-* \| 04 SN 1999-02-* \| 05 SN - \| 06 SN 1999-02-*
FD30	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	10	1	01 SN - \| 02 SN -
FG30K-LPG	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	10	1	RP: G \| 01 SN - \| 02 SN - \| 03 SN 1999-02-* \| 04 SN 1999-02-* \| 05 SN - \| 06 SN 1999-02-*
FG30N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	8	1	CNG: C \| 01 SN - \| 02 SN *-2009-11
FG35K-LPG	MAST COMMON PARTS	MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST)	10	1	RP: G \| 01 SN - \| 02 SN - \| 03 SN 1999-02-* \| 04 SN 1999-02-* \| 05 SN - \| 06 SN 1999-02-*
FG30N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	8	1	01 SN -
FD30N	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C)	8	1	01 SN -
30KPAC	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4Y30C & 4Y35C)	10	1	01 SN - \| 03 SN -
FD30N	MAST COMMON PARTS	02-10-04 02-10-04 MAST COMMON PARTS (PART-1) (FOR 4M30C,35C37-70)	8	1	01 SN -
FB30K	MAST COMMON PARTS	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4Y30C & 4Y35C)	10	1	01 SN - \| 03 SN -

Модель техники	FD35K, FG30N, FD30N, FD30, FD35N, FG30, FB30K, FD30K, FG35N, FG35K-LPG, FG30K-LPG, FG30K-G, FG35K-G, 30KPAC
Номер по каталогу	9431012040
Бренд	Mitsubishi
Система Mitsubishi	MAST COMMON PARTS
Узел Mitsubishi	02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4M30C,4M35C), MAST MAST COMMON PARTS (PART-1) (FOR TRIPLEX MAST), 02-10-03 02-10-03 MAST COMMON PARTS (PART-1) (FOR 4Y30C & 4Y35C), 02-10-04 02-10-04 MAST COMMON PARTS (PART-1) (FOR 4M30C,35C37-70)
Позиция на схеме Mitsubishi	8, 10
Название на русском	Кронштейн узел в сборе l h кронштейн узел в сборе l h
