Подшипник taperd roll Mitsubishi 91K3307300 (BEARING,TAPERD ROLL)

Подшипник taperd roll Mitsubishi 91K3307300 (BEARING,TAPERD ROLL)

Подшипник taperd roll, 91K3307300 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD50N1, FD45N1, FD40N1, FD55N1, FD50NM1, FD50CNM1, FD50CN1, FD40NM1, FD45NM1, FD55NM1, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN
Номер по каталогу	91K3307300
Бренд	Mitsubishi
Система Mitsubishi	OPTION, AXLE, REDUCTION AND DIFFERENTIAL
Узел Mitsubishi	01-32-04 01-32-04 FRONT AXLE (FOR FG50CN-55N), 01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N), 03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.), 01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.), 03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.), 01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)

Все характеристики

По запросу

Артикул: mt003761-91K3307300

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 91K3307300

Название: BEARING,TAPERD ROLL

Название на русском: Подшипник taperd roll

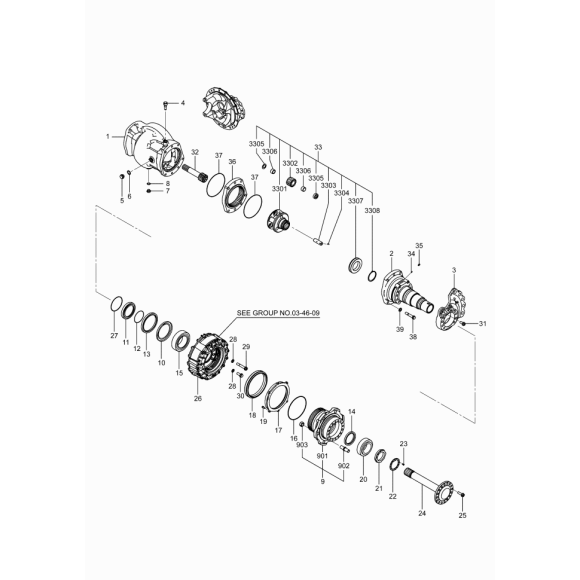

Основная схема: 03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.). Номер на картинке: 20.

Применяемость: найдено 124 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FG40N	OPTION	03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.)	20	1
FD45N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FG55N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FG50CN	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD50CN1	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD55N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FG50CN	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FG50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD45N	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG40N	REDUCTION AND DIFFERENTIAL	01-32-04 01-32-04 FRONT AXLE (FOR FG50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG50CN	OPTION	03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.)	20	1
FD50N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD50N	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD45N1	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD45N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD50N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FG45N	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FG50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG50N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD55N	OPTION	03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.)	20	1
FG50N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FG55N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FG50CN	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD40N	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG55N	OPTION	03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.)	20	1
FD40N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD40N	REDUCTION AND DIFFERENTIAL	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD50NM1	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FG40N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD50CN	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG45N	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FG50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD50N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD55NM1	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD45N	REDUCTION AND DIFFERENTIAL	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD50CNM1	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FG45N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FG50CN	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FD55N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD40NM1	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD40N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD40N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FG40N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD45N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FG55N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FG55N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FG55N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD45N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FG50N	REDUCTION AND DIFFERENTIAL	01-32-04 01-32-04 FRONT AXLE (FOR FG50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD50CN	REDUCTION AND DIFFERENTIAL	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG50CN	REDUCTION AND DIFFERENTIAL	01-32-04 01-32-04 FRONT AXLE (FOR FG50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD55N1	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD45N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FD50N1	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FG40N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD45NM1	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD50CN	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FD50CN	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD50CN	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FD55N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FG50N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FD50N	OPTION	03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.)	20	1
FD40N	OPTION	03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.)	20	1
FD50CNM1	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD55N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD50CN	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD40N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FD45N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD40N	AXLE	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FD50CN	OPTION	03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.)	20	1
FD50CN	OPTION	03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.)	20	1
FG50N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FD40N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FD40N1	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD50N	OPTION	03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.)	14	1
FG50CN	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD50CN1	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FD55N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD50N	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD50N1	AXLE	01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)	14	1
FD50N	REDUCTION AND DIFFERENTIAL	01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N)	37	2	01 SN - \| 02 SN - \| 03 SN - \| 04 SN -
FG50N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1
FG45N	AXLE	01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.)	20	1

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FD50N1, FD45N1, FD40N1, FD55N1, FD50NM1, FD50CNM1, FD50CN1, FD40NM1, FD45NM1, FD55NM1, FD50CN, FD40N, FG50N, FD50N, FD55N, FG45N, FD45N, FG40N, FG55N, FG50CN
Номер по каталогу	91K3307300
Бренд	Mitsubishi
Система Mitsubishi	OPTION, AXLE, REDUCTION AND DIFFERENTIAL
Узел Mitsubishi	01-32-04 01-32-04 FRONT AXLE (FOR FG50CN-55N), 01-32-04 01-32-04 FRONT AXLE (FOR FD50CN-55N), 03-46-07 03-46-07 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE L.H.), 01-46-09 01-46-09 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE L.H.), 03-46-08 03-46-08 OIL COOLED WET DISC BRAKE KIT (FRONT AXLE R.H.), 01-46-10 01-46-10 OIL COOLED WET DISC BRAKE KIT (OPTION) (FRONT AXLE R.H.)
Позиция на схеме Mitsubishi	14, 20, 37
Название на русском	Подшипник taperd roll

Подшипник taperd roll Mitsubishi 91K3307300 (BEARING,TAPERD ROLL) отзывы
