Болт wet Mitsubishi 0597810022 (BOLT WET)

Болт wet Mitsubishi 0597810022 (BOLT WET)

Болт wet, 0597810022 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FG10, FD30, FD35, FGC20K, FG35A, FG30, FD15, MCFA-FD70, FD35A, MCFS-FD70, FD14, FG20, FG25, FD60, FD70, FD18, FG15, FGC25K, FGC15K, FG18, MCFS-FD60, MCFE-FD70, MCFE-FD60, FD10, MCFA-FD60, FD25, FGC18K, FD50, FD702S: 2-SPEED, FD45, FD70 1-SPEED, FD50C, FD20, FD40, FD38, FG14, FGC30K
Номер по каталогу	0597810022
Бренд	Mitsubishi
Система Mitsubishi	AXLE, FRAME & BODY, POWERSHIFT, POWER LINE
Узел Mitsubishi	01-31-03 01-31-03 FRONT AXLE (PART-3), 01-23-01 01-23-01 TORQUECONVERTER ASSY., 01-11-01 01-11-01 FRAME, 01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE), 01-23-01 01-23-01 TORQUE-CONVERTER ASSY, FRONT FRONT AXLE, 01-25-01 01-25-01 TRANSMISSION(PART-1) (FOR DIRECT DRIVE), TORQUE-CONVERTER TORQUE-CONVERTER ASSY, 01-37 01-37 FRONT AXLE(PART-3)

Все характеристики

По запросу

Артикул: mt002010-0597810022

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 0597810022

Название: BOLT WET

Название на русском: Болт wet

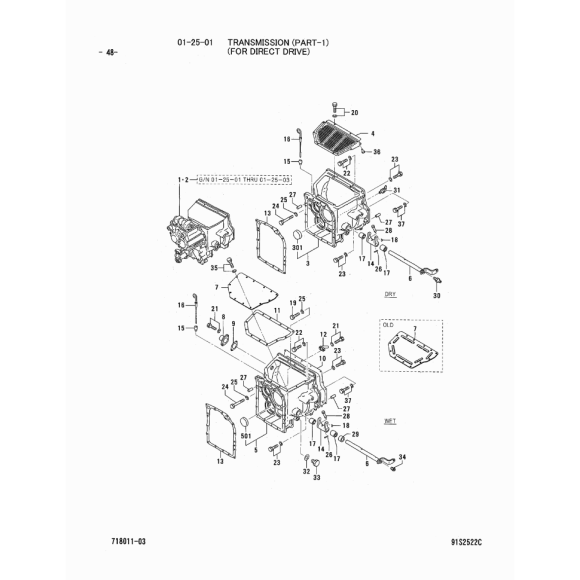

Основная схема: 01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE). Номер на картинке: 19.

Применяемость: найдено 88 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FG18	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FD45	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FG20	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	20	1
FD25	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FGC30K	FRAME & BODY	01-11-01 01-11-01 FRAME	63	6	RP: 1
FD25	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	20	1
FD50	POWERSHIFT	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
FD20	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	18	1
FD20	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FD50C	POWERSHIFT	01-23-01 01-23-01 TORQUECONVERTER ASSY.	24	10
FG15	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	20	1
FD45	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
FD70	AXLE	01-31-03 01-31-03 FRONT AXLE (PART-3)	13
FG10	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	20	1
FD40	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
FD30	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FD35	POWERSHIFT	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
FG20	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	18	1
FD25	POWER LINE	01-25-01 01-25-01 TRANSMISSION(PART-1) (FOR DIRECT DRIVE)	20	1
FD50	AXLE	01-31-03 01-31-03 FRONT AXLE (PART-3)	13
MCFS-FD70	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: D \| 01 SN -1997-05 \| 02 SN -1997-05 \| 03 SN -1997-05 \| 04 SN -1997-05 \| 05 SN -1997-05 \| 06 SN -1997-05
FGC20K	FRAME & BODY	01-11-01 01-11-01 FRAME	63	6	RP: 1
FD35	POWERSHIFT	01-23-01 01-23-01 TORQUECONVERTER ASSY.	24	10
FD40	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FD50	AXLE	01-37 01-37 FRONT AXLE(PART-3)	13	12	RP: R \| 01 SN 00011-* \| 02 SN 30001-* \| 03 SN 50001-*
FD45	POWERSHIFT	01-23-01 01-23-01 TORQUECONVERTER ASSY.	24	10
FD50C	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FG35A	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FD18	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FG14	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	20	1
FD45	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FD50C	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FG25	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FD50C	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
FG10	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FG25	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	18	1
FG20	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FD15	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	18	1
FD40	POWERSHIFT	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
MCFE-FD70	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: D \| 01 SN -1997-05 \| 02 SN -1997-05 \| 03 SN -1997-05 \| 04 SN -1997-05 \| 05 SN -1997-05 \| 06 SN -1997-05
MCFE-FD60	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: D \| 01 SN -1997-05 \| 02 SN -1997-05 \| 03 SN -1997-05 \| 04 SN -1997-05 \| 05 SN -1997-05 \| 06 SN -1997-05
FD15	FRAME & BODY	01-11-01 01-11-01 FRAME	34	6	RP: 1
FD50	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FD50C	POWERSHIFT	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
FD70 1-SPEED	POWER LINE	TORQUE-CONVERTER TORQUE-CONVERTER ASSY	109	10
FD20	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	20	1
MCFA-FD60	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: D \| 01 SN -1997-05 \| 02 SN -1997-05 \| 03 SN -1997-05 \| 04 SN -1997-05 \| 05 SN -1997-05 \| 06 SN -1997-05
FD70 1-SPEED	AXLE	FRONT FRONT AXLE	28	12
MCFS-FD60	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: D \| 01 SN -1997-05 \| 02 SN -1997-05 \| 03 SN -1997-05 \| 04 SN -1997-05 \| 05 SN -1997-05 \| 06 SN -1997-05
FG25	POWER LINE	01-25-01 01-25-01 TRANSMISSION(PART-1) (FOR DIRECT DRIVE)	20	1
FD50	POWERSHIFT	01-23-01 01-23-01 TORQUECONVERTER ASSY.	24	10
FG18	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	20	1
FD40	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FD60	AXLE	01-37 01-37 FRONT AXLE(PART-3)	13	12	RP: R \| 01 SN 00011-* \| 02 SN 30001-* \| 03 SN 50001-*
FD38	POWERSHIFT	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
FD35	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FD702S: 2-SPEED	POWER LINE	TORQUE-CONVERTER TORQUE-CONVERTER ASSY	109	10
FD14	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	18	1
FD25	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	18	1
FD35A	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FD10	FRAME & BODY	01-11-01 01-11-01 FRAME	33	6	RP: 1
FD18	FRAME & BODY	01-11-01 01-11-01 FRAME	33	6	RP: 1
FD50	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10
FG20	POWER LINE	01-25-01 01-25-01 TRANSMISSION(PART-1) (FOR DIRECT DRIVE)	20	1
FD50	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: C \| 01 SN -1997-11 \| 02 SN -1997-11 \| 03 SN -1997-11 \| 04 SN -1997-11 \| 05 SN *-1997-11
FD70	AXLE	01-37 01-37 FRONT AXLE(PART-3)	13	12	RP: R \| 01 SN 00011-* \| 02 SN 30001-* \| 03 SN 50001-*
FD20	POWER LINE	01-25-01 01-25-01 TRANSMISSION(PART-1) (FOR DIRECT DRIVE)	20	1
FD702S: 2-SPEED	AXLE	FRONT FRONT AXLE	28	12
FD40	POWERSHIFT	01-23-01 01-23-01 TORQUECONVERTER ASSY.	24	10
FD15	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FG15	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FD15	FRAME & BODY	01-11-01 01-11-01 FRAME	33	6	RP: 1
FG30	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FGC25K	FRAME & BODY	01-11-01 01-11-01 FRAME	63	6	RP: 1
FD10	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	19	1
FG25	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	20	1
FD18	POWER LINE	01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE)	18	1
MCFA-FD70	POWER LINE	01-23-01 01-23-01 TORQUE-CONVERTER ASSY	110	10	CNG: D \| 01 SN -1997-05 \| 02 SN -1997-05 \| 03 SN -1997-05 \| 04 SN -1997-05 \| 05 SN -1997-05 \| 06 SN -1997-05
FGC18K	FRAME & BODY	01-11-01 01-11-01 FRAME	63	6	RP: 1
FD18	FRAME & BODY	01-11-01 01-11-01 FRAME	34	6	RP: 1

В описании показаны первые 80 применений. Полная применяемость сохранена в таблице каталога.

Модель техники	FG10, FD30, FD35, FGC20K, FG35A, FG30, FD15, MCFA-FD70, FD35A, MCFS-FD70, FD14, FG20, FG25, FD60, FD70, FD18, FG15, FGC25K, FGC15K, FG18, MCFS-FD60, MCFE-FD70, MCFE-FD60, FD10, MCFA-FD60, FD25, FGC18K, FD50, FD702S: 2-SPEED, FD45, FD70 1-SPEED, FD50C, FD20, FD40, FD38, FG14, FGC30K
Номер по каталогу	0597810022
Бренд	Mitsubishi
Система Mitsubishi	AXLE, FRAME & BODY, POWERSHIFT, POWER LINE
Узел Mitsubishi	01-31-03 01-31-03 FRONT AXLE (PART-3), 01-23-01 01-23-01 TORQUECONVERTER ASSY., 01-11-01 01-11-01 FRAME, 01-25-01 01-25-01 TRANSMISSION (PART-1) (FOR DIRECT DRIVE), 01-23-01 01-23-01 TORQUE-CONVERTER ASSY, FRONT FRONT AXLE, 01-25-01 01-25-01 TRANSMISSION(PART-1) (FOR DIRECT DRIVE), TORQUE-CONVERTER TORQUE-CONVERTER ASSY, 01-37 01-37 FRONT AXLE(PART-3)
Позиция на схеме Mitsubishi	19, 33, 13, 34, 28, 20, 24, 18, 110, 109, 63
Название на русском	Болт wet
