Шестерня forward 36t z=36 trq Mitsubishi 9132405502 (GEAR,FORWARD 36T Z=36 TRQ)

Шестерня forward 36t z=36 trq Mitsubishi 9132405502 (GEAR,FORWARD 36T Z=36 TRQ)

Шестерня forward 36t z=36 trq, 9132405502 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD30, FG30-LPG, FD35, FG30-G, FD15, FD14, FG20, FG25, FD18, FG15, FG35-LPG, FG18, FD10, FD25, FG35-G, FD25, for diesel fuel only, FD20, for diesel fuel only, FG25, for gasoline only, FG20, LP fuel type, FD20, FG18-LPG, FG18, LP fuel type, FG15, for gasoline only, FG25, LP fuel type, FG15, LP fuel type, FG18, for gasoline only, FG20, for gasoline only, FG15-LPG
Номер по каталогу	9132405502
Бренд	Mitsubishi
Система Mitsubishi	AXLE, POWERSHIFT, POWER LINE
Узел Mitsubishi	01-24-02 01-24-02 TRANSMISSION (PART-2), TRANSMISSION TRANSMISSION (PART-2), 01-24-02 01-24-02 TRANSMISSION(PART-2) (FOR TORQUE DRIVE), 01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE), 01-24-02 01-24-02 TRANSMISSION(PART-2)

Все характеристики

По запросу

Артикул: mt001201-9132405502

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9132405502

Название: GEAR,FORWARD 36T Z=36 TRQ

Название на русском: Шестерня forward 36t z=36 trq

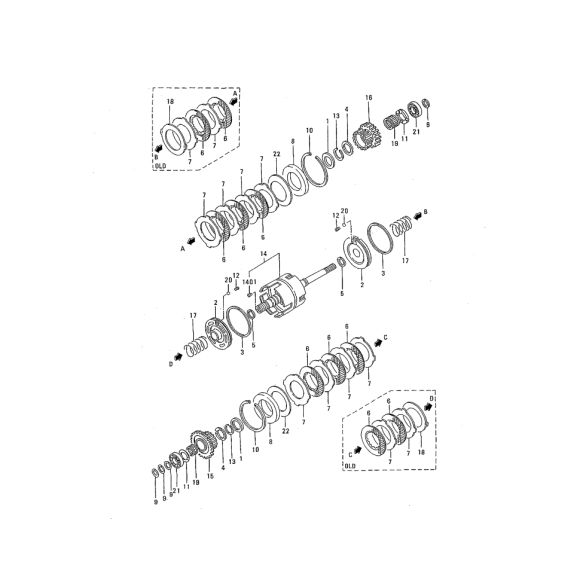

Основная схема: 01-24-02 01-24-02 TRANSMISSION(PART-2) (FOR TORQUE DRIVE). Номер на картинке: 15.

Применяемость: найдено 48 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD10	POWERSHIFT	01-24-02 01-24-02 TRANSMISSION(PART-2) (FOR TORQUE DRIVE)	15	1	RP: 3 \| CNG: C \| 01 SN -@000247 \| 02 SN -@030164 \| 03 SN -@052192 \| 04 SN -@070294
FG30-LPG	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG18, LP fuel type	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1998-05 \| 02 SN -1998-05 \| 03 SN -1998-05 \| 04 SN -1998-05
FD18	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE)	15	1
FG15, LP fuel type	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1998-05 \| 02 SN -1998-05 \| 03 SN -1998-05 \| 04 SN -1998-05
FD25, for diesel fuel only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -@09508@ \| 06 SN -1995-08
FD10	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE)	15	1
FG15	POWER LINE	01-24-02 01-24-02 TRANSMISSION(PART-2)	15	1	CNG: C \| 01 SN -1998-05 \| 02 SN -1998-05 \| 03 SN -1998-05 \| 04 SN -1998-05
FG18	POWER LINE	01-24-02 01-24-02 TRANSMISSION(PART-2)	15	1	CNG: C \| 01 SN -1998-05 \| 02 SN -1998-05 \| 03 SN -1998-05 \| 04 SN -1998-05
FG20	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE)	15	1
FG18, for gasoline only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1998-05 \| 02 SN -1998-05 \| 03 SN -1998-05 \| 04 SN -1998-05
FD25	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE)	15	1
FG35-LPG	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG20, for gasoline only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -@09508@ \| 06 SN -1995-08
FG20, LP fuel type	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -@09508@ \| 06 SN -1995-08
FD30	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FD35	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG25, for gasoline only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FD15	POWER LINE	TRANSMISSION TRANSMISSION (PART-2)	15	1	CNG: C
FD18	AXLE	TRANSMISSION TRANSMISSION (PART-2)	15	1	CNG: C
FD14	POWERSHIFT	01-24-02 01-24-02 TRANSMISSION(PART-2) (FOR TORQUE DRIVE)	15	1	RP: 3 \| CNG: C \| 01 SN -@000247 \| 02 SN -@030164 \| 03 SN -@052192 \| 04 SN -@070294
FD15	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE)	15	1
FG25, LP fuel type	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -@09508@ \| 06 SN -1995-08
FD20	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE)	15	1
FG30-G	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG35-G	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FD25, for diesel fuel only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FD18	POWERSHIFT	01-24-02 01-24-02 TRANSMISSION(PART-2) (FOR TORQUE DRIVE)	15	1	RP: 3 \| CNG: C \| 01 SN -@000247 \| 02 SN -@030164 \| 03 SN -@052192 \| 04 SN -@070294
FG35-LPG	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG15, for gasoline only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1998-05 \| 02 SN -1998-05 \| 03 SN -1998-05 \| 04 SN -1998-05
FG20, LP fuel type	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FD20, for diesel fuel only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -@09508@ \| 06 SN -1995-08
FG25, for gasoline only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -@09508@ \| 06 SN -1995-08
FG35-G	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FD35	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG18-LPG	POWER LINE	01-24-02 01-24-02 TRANSMISSION(PART-2)	15	1	CNG: C \| 01 SN -1998-05 \| 02 SN -1998-05 \| 03 SN -1998-05 \| 04 SN -1998-05
FD15	AXLE	TRANSMISSION TRANSMISSION (PART-2)	15	1	CNG: C
FG25	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE)	15	1
FG15-LPG	POWER LINE	01-24-02 01-24-02 TRANSMISSION(PART-2)	15	1	CNG: C \| 01 SN -1998-05 \| 02 SN -1998-05 \| 03 SN -1998-05 \| 04 SN -1998-05
FD30	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG30-G	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG25, LP fuel type	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FG30-LPG	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FD15	POWERSHIFT	01-24-02 01-24-02 TRANSMISSION(PART-2) (FOR TORQUE DRIVE)	15	1	RP: 3 \| CNG: C \| 01 SN -@000247 \| 02 SN -@030164 \| 03 SN -@052192 \| 04 SN -@070294
FD20, for diesel fuel only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08
FD18	POWER LINE	TRANSMISSION TRANSMISSION (PART-2)	15	1	CNG: C
FD14	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE)	15	1
FG20, for gasoline only	POWER LINE	01-24-02 01-24-02 TRANSMISSION (PART-2)	15	1	CNG: C \| 01 SN -1995-08 \| 02 SN -1995-08 \| 03 SN -1995-08 \| 04 SN -1995-08 \| 05 SN -1995-08 \| 06 SN -1995-08

Модель техники	FD30, FG30-LPG, FD35, FG30-G, FD15, FD14, FG20, FG25, FD18, FG15, FG35-LPG, FG18, FD10, FD25, FG35-G, FD25, for diesel fuel only, FD20, for diesel fuel only, FG25, for gasoline only, FG20, LP fuel type, FD20, FG18-LPG, FG18, LP fuel type, FG15, for gasoline only, FG25, LP fuel type, FG15, LP fuel type, FG18, for gasoline only, FG20, for gasoline only, FG15-LPG
Номер по каталогу	9132405502
Бренд	Mitsubishi
Система Mitsubishi	AXLE, POWERSHIFT, POWER LINE
Узел Mitsubishi	01-24-02 01-24-02 TRANSMISSION (PART-2), TRANSMISSION TRANSMISSION (PART-2), 01-24-02 01-24-02 TRANSMISSION(PART-2) (FOR TORQUE DRIVE), 01-24-02 01-24-02 TRANSMISSION (PART-2) (FOR TORQUE DRIVE), 01-24-02 01-24-02 TRANSMISSION(PART-2)
Позиция на схеме Mitsubishi	15
Название на русском	Шестерня forward 36t z=36 trq

Шестерня forward 36t z=36 trq Mitsubishi 9132405502 (GEAR,FORWARD 36T Z=36 TRQ) отзывы
