Bar узел в сборе Mitsubishi 9555106300 (BAR ASSY)

Bar узел в сборе Mitsubishi 9555106300 (BAR ASSY)

Bar узел в сборе, 9555106300 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD70NM/FD70NMS, MCFS-FD80, FD60, FD70, FD60NM/FD60NMS, MCFE-FD80, MCFA-FD80
Номер по каталогу	9555106300
Бренд	Mitsubishi
Система Mitsubishi	SIDE SHIFTER (BAR TYPE), SIDE SHIFTER (3SS80BVB, BMB, CVB, CMB), SIDE SHIFTER WITH FORK POSITIONER (BAR TYPE)
Узел Mitsubishi	SIDE SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE), 03-52-03 03-52-03 SIDE SHIFTER W/FORK POSITIONER (PART-1) 4SF70BVB, 03-51-02 03-51-02 SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE), SIDE SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE), 03-51-06 03-51-06 SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE), SIDE SIDE SHIFTER W/FORK POSITIONER (PART-1) 4SF70BVB, 03-52-01 03-52-01 SIDE SHIFTER (PART-1) MODEL 3SS80BVB, BMB

Все характеристики

По запросу

Артикул: mt000682-9555106300

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9555106300

Название: BAR ASSY

Название на русском: Bar узел в сборе

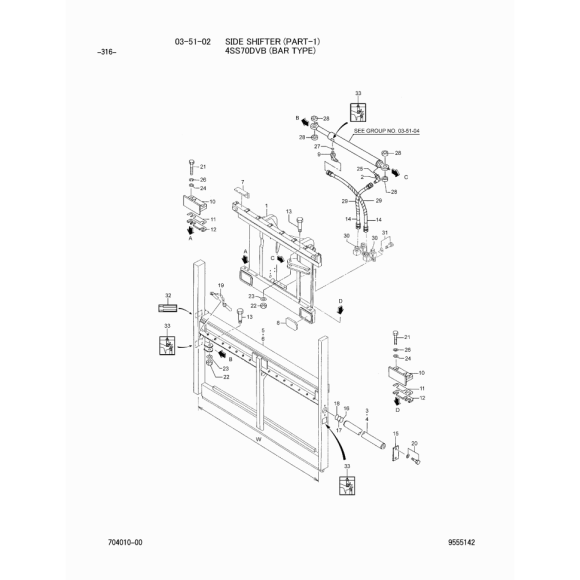

Основная схема: SIDE SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE). Номер на картинке: 10.

Применяемость: найдено 19 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FD70	SIDE SHIFTER (BAR TYPE)	SIDE SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE)	10	2
FD60NM/FD60NMS	SIDE SHIFTER (BAR TYPE)	03-52-03 03-52-03 SIDE SHIFTER W/FORK POSITIONER (PART-1) 4SF70BVB	15	2
MCFE-FD80	SIDE SHIFTER (3SS80BVB, BMB, CVB, CMB)	03-52-01 03-52-01 SIDE SHIFTER (PART-1) MODEL 3SS80BVB, BMB	20	2	01 SN -@02006 \| 03 SN -@02006 \| 05 SN *-@02006
FD60	SIDE SHIFTER (BAR TYPE)	03-51-02 03-51-02 SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE)	110	2
MCFS-FD80	SIDE SHIFTER (3SS80BVB, BMB, CVB, CMB)	03-52-01 03-52-01 SIDE SHIFTER (PART-1) MODEL 3SS80BVB, BMB	20	2	01 SN -@02006 \| 03 SN -@02006 \| 05 SN *-@02006
FD70	SIDE SHIFTER (BAR TYPE)	03-51-02 03-51-02 SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE)	110	2
FD70	SIDE SHIFTER (BAR TYPE)	SIDE SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE)	8	2
FD60NM/FD60NMS	SIDE SHIFTER (BAR TYPE)	03-51-06 03-51-06 SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE)	8	2
FD60	SIDE SHIFTER (BAR TYPE)	SIDE SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE)	10	2
FD70NM/FD70NMS	SIDE SHIFTER (BAR TYPE)	03-52-03 03-52-03 SIDE SHIFTER W/FORK POSITIONER (PART-1) 4SF70BVB	15	2
MCFA-FD80	SIDE SHIFTER (3SS80BVB, BMB, CVB, CMB)	03-52-01 03-52-01 SIDE SHIFTER (PART-1) MODEL 3SS80BVB, BMB	20	2	01 SN -@02006 \| 03 SN -@02006 \| 05 SN *-@02006
FD70	SIDE SHIFTER WITH FORK POSITIONER (BAR TYPE)	SIDE SIDE SHIFTER W/FORK POSITIONER (PART-1) 4SF70BVB	15	2
FD70NM/FD70NMS	SIDE SHIFTER (BAR TYPE)	03-51-02 03-51-02 SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE)	10	2
FD60	SIDE SHIFTER (BAR TYPE)	SIDE SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE)	8	2
FD60	SIDE SHIFTER WITH FORK POSITIONER (BAR TYPE)	SIDE SIDE SHIFTER W/FORK POSITIONER (PART-1) 4SF70BVB	15	2
FD70	SIDE SHIFTER (BAR TYPE)	03-51-06 03-51-06 SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE)	108	2
FD60	SIDE SHIFTER (BAR TYPE)	03-51-06 03-51-06 SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE)	108	2
FD70NM/FD70NMS	SIDE SHIFTER (BAR TYPE)	03-51-06 03-51-06 SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE)	8	2
FD60NM/FD60NMS	SIDE SHIFTER (BAR TYPE)	03-51-02 03-51-02 SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE)	10	2

Модель техники	FD70NM/FD70NMS, MCFS-FD80, FD60, FD70, FD60NM/FD60NMS, MCFE-FD80, MCFA-FD80
Номер по каталогу	9555106300
Бренд	Mitsubishi
Система Mitsubishi	SIDE SHIFTER (BAR TYPE), SIDE SHIFTER (3SS80BVB, BMB, CVB, CMB), SIDE SHIFTER WITH FORK POSITIONER (BAR TYPE)
Узел Mitsubishi	SIDE SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE), 03-52-03 03-52-03 SIDE SHIFTER W/FORK POSITIONER (PART-1) 4SF70BVB, 03-51-02 03-51-02 SIDE SHIFTER (PART-1) 4SS70DVB (BAR TYPE), SIDE SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE), 03-51-06 03-51-06 SIDE SHIFTER (PART-1) 4SS70DMB (BAR TYPE), SIDE SIDE SHIFTER W/FORK POSITIONER (PART-1) 4SF70BVB, 03-52-01 03-52-01 SIDE SHIFTER (PART-1) MODEL 3SS80BVB, BMB
Позиция на схеме Mitsubishi	20, 8, 15, 10, 110, 108
Название на русском	Bar узел в сборе
