Тяга piston m48 Mitsubishi 9415107600 (ROD, PISTON M48)

Тяга piston m48 Mitsubishi 9415107600 (ROD, PISTON M48)

Тяга piston m48, 9415107600 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD15, FD14, FD18, FG15, FG18, FD10, FG18-LPG, FG15-LPG, FGC15-G/LPG, FGC15-G, FGC18-G/LPG, FGC18-LPG, FGC15-LPG, FGC18-G
Номер по каталогу	9415107600
Бренд	Mitsubishi
Система Mitsubishi	TRIPLEX MAST, DUPLEX MAST, TRIPLE FULL FREE PANORAMIC MAST, DUAL FULL FREE PANORAMIC MAST
Узел Mitsubishi	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70), 02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512), LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70), 02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70), LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40), 02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40), 02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40), LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40), 02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)

Все характеристики

По запросу

Артикул: mt001436-9415107600

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9415107600

Название: ROD, PISTON M48

Название на русском: Тяга piston m48

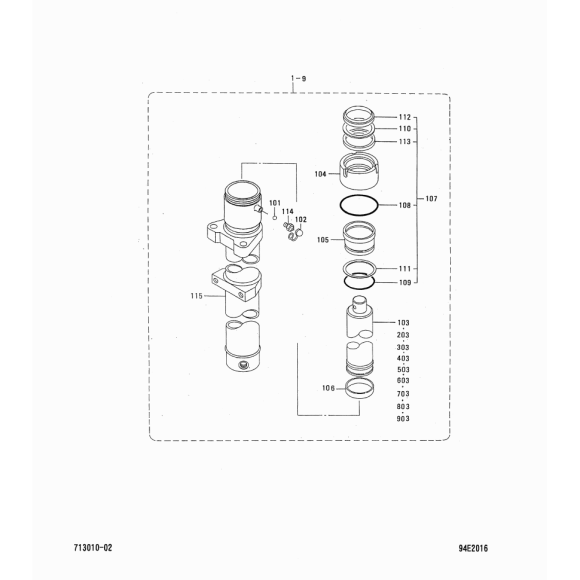

Основная схема: LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70). Номер на картинке: 403.

Применяемость: найдено 40 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во
FD15	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70)	403	1
FD14	TRIPLE FULL FREE PANORAMIC MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512)	410	1
FD18	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40)	303	1
FG18-LPG	DUPLEX MAST	02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	303	1
FG15	DUPLEX MAST	02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	303	1
FGC18-LPG	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	410	1
FD15	TRIPLE FULL FREE PANORAMIC MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512)	410	1
FD18	DUAL FULL FREE PANORAMIC MAST	02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	310	1
FGC15-LPG	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	410	1
FD15	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70)	403	1
FG18	DUPLEX MAST	02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	303	1
FGC15-LPG	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	310	1
FGC15-G	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	410	1
FD18	TRIPLE FULL FREE PANORAMIC MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512)	410	1
FD10	TRIPLE FULL FREE PANORAMIC MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512)	410	1
FGC18-LPG	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	310	1
FD18	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70)	403	1
FD18	DUPLEX MAST	02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)	310	1
FGC18-G	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	310	1
FG18	TRIPLEX MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70)	403	1
FG15-LPG	TRIPLEX MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70)	403	1
FD10	DUPLEX MAST	02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)	310	1
FG15	TRIPLEX MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70)	403	1
FGC15-G/LPG	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	310	1
FGC15-G/LPG	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	410	1
FD10	DUAL FULL FREE PANORAMIC MAST	02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	310	1
FD15	DUAL FULL FREE PANORAMIC MAST	02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	310	1
FD14	DUPLEX MAST	02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)	310	1
FGC18-G/LPG	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	310	1
FGC18-G	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	410	1
FD15	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40)	303	1
FD18	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70)	403	1
FG15-LPG	DUPLEX MAST	02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	303	1
FD15	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40)	303	1
FG18-LPG	TRIPLEX MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70)	403	1
FGC18-G/LPG	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	410	1
FD14	DUAL FULL FREE PANORAMIC MAST	02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	310	1
FD18	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40)	303	1
FGC15-G	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	310	1
FD15	DUPLEX MAST	02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)	310	1

Модель техники	FD15, FD14, FD18, FG15, FG18, FD10, FG18-LPG, FG15-LPG, FGC15-G/LPG, FGC15-G, FGC18-G/LPG, FGC18-LPG, FGC15-LPG, FGC18-G
Номер по каталогу	9415107600
Бренд	Mitsubishi
Система Mitsubishi	TRIPLEX MAST, DUPLEX MAST, TRIPLE FULL FREE PANORAMIC MAST, DUAL FULL FREE PANORAMIC MAST
Узел Mitsubishi	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70), 02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512), LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70), 02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70), LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40), 02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40), 02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40), LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40), 02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)
Позиция на схеме Mitsubishi	403, 410, 303, 310
Название на русском	Тяга piston m48
