Тяга piston m60 Mitsubishi 9415108100 (ROD, PISTON M60)

Тяга piston m60 Mitsubishi 9415108100 (ROD, PISTON M60)

Тяга piston m60, 9415108100 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FD15, FD14, FD18, FG15, FG18, FD10, FG18-LPG, FG15-LPG, FGC15-G/LPG, FGC15-G, FGC18-G/LPG, FGC18-LPG, FGC15-LPG, FGC18-G
Номер по каталогу	9415108100
Бренд	Mitsubishi
Система Mitsubishi	TRIPLEX MAST, DUPLEX MAST, TRIPLE FULL FREE PANORAMIC MAST, DUAL FULL FREE PANORAMIC MAST
Узел Mitsubishi	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70), 02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512), LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70), 02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70), LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40), 02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40), 02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40), LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40), 02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)

Все характеристики

По запросу

Артикул: mt001445-9415108100

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 9415108100

Название: ROD, PISTON M60

Название на русском: Тяга piston m60

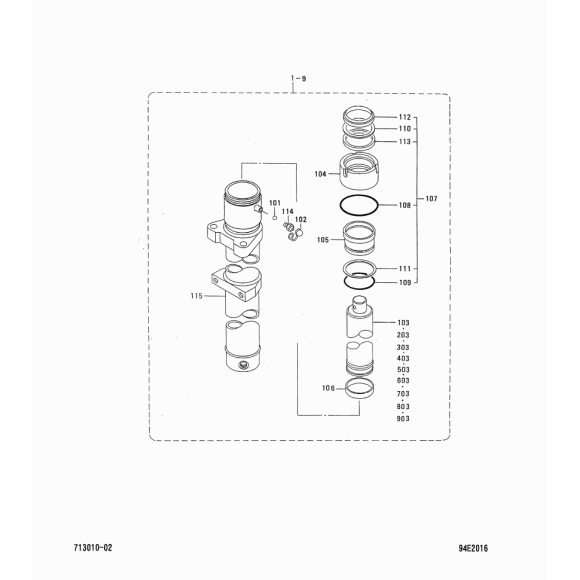

Основная схема: LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70). Номер на картинке: 703.

Применяемость: найдено 40 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во
FD15	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70)	703	1
FD14	TRIPLE FULL FREE PANORAMIC MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512)	710	1
FD18	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40)	603	1
FG18-LPG	DUPLEX MAST	02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	603	1
FG15	DUPLEX MAST	02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	603	1
FGC18-LPG	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	710	1
FD15	TRIPLE FULL FREE PANORAMIC MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512)	710	1
FD18	DUAL FULL FREE PANORAMIC MAST	02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	610	1
FGC15-LPG	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	710	1
FD15	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70)	703	1
FG18	DUPLEX MAST	02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	603	1
FGC15-LPG	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	610	1
FGC15-G	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	710	1
FD18	TRIPLE FULL FREE PANORAMIC MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512)	710	1
FD10	TRIPLE FULL FREE PANORAMIC MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512)	710	1
FGC18-LPG	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	610	1
FD18	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70)	703	1
FD18	DUPLEX MAST	02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)	610	1
FGC18-G	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	610	1
FG18	TRIPLEX MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70)	703	1
FG15-LPG	TRIPLEX MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70)	703	1
FD10	DUPLEX MAST	02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)	610	1
FG15	TRIPLEX MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70)	703	1
FGC15-G/LPG	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	610	1
FGC15-G/LPG	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	710	1
FD10	DUAL FULL FREE PANORAMIC MAST	02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	610	1
FD15	DUAL FULL FREE PANORAMIC MAST	02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	610	1
FD14	DUPLEX MAST	02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)	610	1
FGC18-G/LPG	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	610	1
FGC18-G	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	710	1
FD15	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40)	603	1
FD18	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70)	703	1
FG15-LPG	DUPLEX MAST	02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	603	1
FD15	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40)	603	1
FG18-LPG	TRIPLEX MAST	02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70)	703	1
FGC18-G/LPG	TRIPLEX MAST	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70)	710	1
FD14	DUAL FULL FREE PANORAMIC MAST	02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40)	610	1
FD18	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40)	603	1
FGC15-G	DUPLEX MAST	LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40)	610	1
FD15	DUPLEX MAST	02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)	610	1

Модель техники	FD15, FD14, FD18, FG15, FG18, FD10, FG18-LPG, FG15-LPG, FGC15-G/LPG, FGC15-G, FGC18-G/LPG, FGC18-LPG, FGC15-LPG, FGC18-G
Номер по каталогу	9415108100
Бренд	Mitsubishi
Система Mitsubishi	TRIPLEX MAST, DUPLEX MAST, TRIPLE FULL FREE PANORAMIC MAST, DUAL FULL FREE PANORAMIC MAST
Узел Mitsubishi	LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 4M15A37-70), 02-20-02 02-20-02 LIFT CYLINDER(1ST)(FOR 4M15A37-70)( 9512), LIFT LIFT CYLINDER (1ST) ( 1995-12) (FOR 3C15A37-70), 02-20-02 02-20-02 LIFT CYLINDER(1ST)( 1995-12) (FOR 4M 15A37-70), LIFT LIFT CYLINDER (1ST) (FOR 4F15A27-40), 02-18-01 02-18-01 LIFT CYLINDER(1ST) (FOR 4F15A27-40), 02-18-02 02-18-02 LIFT CYLINDER(1ST) (FOR 4F15A27-40), LIFT LIFT CYLINDER (1ST) (FOR 3B15A27-40), 02-18-02 02-18-02 LIFT CYLINDER (1ST) (FOR 4F15A27-40)
Позиция на схеме Mitsubishi	603, 703, 710, 610
Название на русском	Тяга piston m60

Тяга piston m60 Mitsubishi 9415108100 (ROD, PISTON M60) отзывы

Категории:TRIPLEX MAST Запчасти вилочных погрузчиков Запчасти Mitsubishi DUPLEX MAST TRIPLE FULL FREE PANORAMIC MAST DUAL FULL FREE PANORAMIC MAST
