Shoe, Back Mitsubishi 52008-04030 (Shoe, back)

Shoe, Back Mitsubishi 52008-04030 (Shoe, back)

Shoe, Back, 52008-04030 для вилочного погрузчика Mitsubishi

Полное описание

Модель техники	FB15TCA, FB13TCA, FB18TCA, FB20TCA, FB15TCB, FB18CA, FB14CA, FB15CA, FB18(H)CA1(J), FB10CA, FB14(H)CA1(J), FB20TCB, FB20TBCB, FB10(H)CA1(J), FB18TBCB, FB18TCB, FB16TCB, FB16TBCB, FB15(H)CA1(J), FB13TCB, FB10CA1, FB18CA1, FB14CA1, FB15CA1
Номер по каталогу	52008-04030
Бренд	Mitsubishi
Система Mitsubishi	DUPLEX, SIMPLEX, TRIPLEX, TRIPLEX MAST
Узел Mitsubishi	02-05-12 02-05-12 2061A OUTER MAST[Pm] FB(EP)13-18TCA, 02-06-23 02-06-23 2161A OUTER MAST[Mm] FB(EP)13-18TCA, 02-07-19 02-07-19 2261A OUTER MAST[Fm] FB(EP)13-18TCA, 02-06-08 02-06-08 21610 OUTER MAST [Mm], 02-07-09 02-07-09 22610 OUTER MAST [Fm], Fig.21610 Fig.21610 OUTER MAST [Mm], 02-05-07 02-05-07 20610A OUTER MAST [Pm] w.o/LASER POINTER, 02-06-10 02-06-10 2161 OUTER MAST[Mm], 02-05-08 02-05-08 20610B OUTER MAST [Pm] w/LASER POINTER, 02-06-13 02-06-13 2161 OUTER MAST [Mm], 02-06-18 02-06-18 2161 OUTER MAST[Mm], 02-06-07 02-06-07 21610 OUTER MAST[Mm], 02-06-24 02-06-24 2161B OUTER MAST[Mm] FB(EP)20TCA, 02-07-20 02-07-20 2261B OUTER MAST[Fm] FB(EP)20TCA, 02-05-13 02-05-13 2061B OUTER MAST[Pm] FB(EP)20TCA, 02-06-09 02-06-09 21610 OUTER MAST [Mm]

Все характеристики

По запросу

Артикул: mt000245-52008-04030

Запросить цену

Цена по запросу

0 ₽

Обзор
Характеристики
Отзывы0

Каталожный номер: 52008-04030

Название: Shoe, back

Название на русском: Shoe, Back

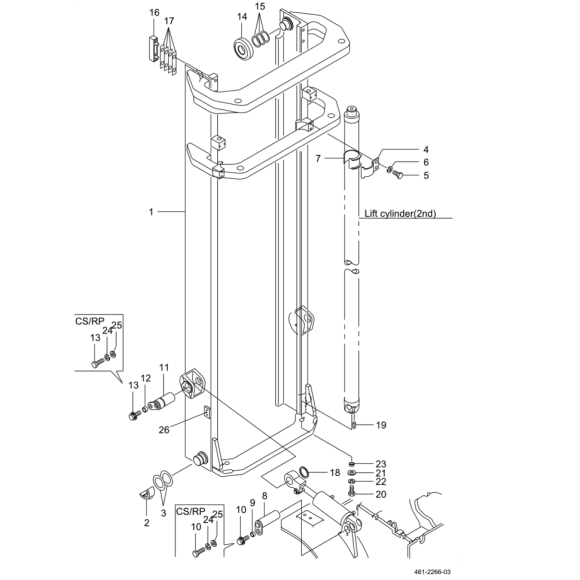

Основная схема: 02-06-08 02-06-08 21610 OUTER MAST [Mm]. Номер на картинке: 16.

Применяемость: найдено 59 применений.

Применяемость по каталогам Mitsubishi

Модель	Система	Узел	Позиция	Кол-во	Примечание
FB13TCB	TRIPLEX	02-06-08 02-06-08 21610 OUTER MAST [Mm]	16	2
FB20TCB	DUPLEX	02-07-09 02-07-09 22610 OUTER MAST [Fm]	19	2
FB16TCB	TRIPLEX MAST	Fig.21610 Fig.21610 OUTER MAST [Mm]	16
FB18TCB	TRIPLEX MAST	Fig.21610 Fig.21610 OUTER MAST [Mm]	16
FB18CA1	TRIPLEX	02-06-10 02-06-10 2161 OUTER MAST[Mm]	17	2
FB20TCB	SIMPLEX	02-05-08 02-05-08 20610B OUTER MAST [Pm] w/LASER POINTER	19	2
FB20TCB	TRIPLEX	02-06-09 02-06-09 21610 OUTER MAST [Mm]	16	2
FB20TCA	SIMPLEX	02-05-13 02-05-13 2061B OUTER MAST[Pm] FB(EP)20TCA	25-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB20TCA	DUPLEX	02-07-20 02-07-20 2261B OUTER MAST[Fm] FB(EP)20TCA	26-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB16TCB	TRIPLEX	02-06-09 02-06-09 21610 OUTER MAST [Mm]	16	2
FB18TCA	TRIPLEX	02-06-23 02-06-23 2161A OUTER MAST[Mm] FB(EP)13-18TCA	24-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB15TCA	DUPLEX	02-07-19 02-07-19 2261A OUTER MAST[Fm] FB(EP)13-18TCA	26-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB20TCA	SIMPLEX	02-05-12 02-05-12 2061A OUTER MAST[Pm] FB(EP)13-18TCA	25-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB18TCB	TRIPLEX	02-06-09 02-06-09 21610 OUTER MAST [Mm]	16	2
FB15TCA	TRIPLEX	02-06-24 02-06-24 2161B OUTER MAST[Mm] FB(EP)20TCA	24-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB18TCA	DUPLEX	02-07-19 02-07-19 2261A OUTER MAST[Fm] FB(EP)13-18TCA	26-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB14(H)CA1(J)	TRIPLEX	02-06-13 02-06-13 2161 OUTER MAST [Mm]	9	2
FB13TCA	DUPLEX	02-07-20 02-07-20 2261B OUTER MAST[Fm] FB(EP)20TCA	26-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB20TBCB	DUPLEX	02-07-09 02-07-09 22610 OUTER MAST [Fm]	19	2
FB13TCA	SIMPLEX	02-05-13 02-05-13 2061B OUTER MAST[Pm] FB(EP)20TCA	25-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB15TCA	DUPLEX	02-07-20 02-07-20 2261B OUTER MAST[Fm] FB(EP)20TCA	26-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB18TBCB	TRIPLEX MAST	Fig.21610 Fig.21610 OUTER MAST [Mm]	16
FB18TCA	DUPLEX	02-07-20 02-07-20 2261B OUTER MAST[Fm] FB(EP)20TCA	26-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB10CA	TRIPLEX	02-06-18 02-06-18 2161 OUTER MAST[Mm]	9-1	2	RP: N \| 01 SN 221E03773-* \| 02 SN 221E03773-* \| 03 SN 221E03773-* \| 04 SN 221E03773-*
FB10CA	TRIPLEX	02-06-07 02-06-07 21610 OUTER MAST[Mm]	17	2
FB15TCB	TRIPLEX	02-06-09 02-06-09 21610 OUTER MAST [Mm]	16	2
FB13TCA	TRIPLEX	02-06-24 02-06-24 2161B OUTER MAST[Mm] FB(EP)20TCA	24-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB15TCA	TRIPLEX	02-06-23 02-06-23 2161A OUTER MAST[Mm] FB(EP)13-18TCA	24-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB14CA	TRIPLEX	02-06-07 02-06-07 21610 OUTER MAST[Mm]	17	2
FB15CA1	TRIPLEX	02-06-10 02-06-10 2161 OUTER MAST[Mm]	17	2
FB13TCA	DUPLEX	02-07-19 02-07-19 2261A OUTER MAST[Fm] FB(EP)13-18TCA	26-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB20TCB	SIMPLEX	02-05-07 02-05-07 20610A OUTER MAST [Pm] w.o/LASER POINTER	19	2
FB20TCA	TRIPLEX	02-06-23 02-06-23 2161A OUTER MAST[Mm] FB(EP)13-18TCA	24-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB15TCA	SIMPLEX	02-05-13 02-05-13 2061B OUTER MAST[Pm] FB(EP)20TCA	25-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB16TBCB	TRIPLEX	02-06-09 02-06-09 21610 OUTER MAST [Mm]	16	2
FB15CA	TRIPLEX	02-06-07 02-06-07 21610 OUTER MAST[Mm]	17	2
FB18CA	TRIPLEX	02-06-07 02-06-07 21610 OUTER MAST[Mm]	17	2
FB20TBCB	TRIPLEX	02-06-09 02-06-09 21610 OUTER MAST [Mm]	16	2
FB18CA	TRIPLEX	02-06-18 02-06-18 2161 OUTER MAST[Mm]	9-1	2	RP: N \| 01 SN 221E03773-* \| 02 SN 221E03773-* \| 03 SN 221E03773-* \| 04 SN 221E03773-*
FB20TCA	DUPLEX	02-07-19 02-07-19 2261A OUTER MAST[Fm] FB(EP)13-18TCA	26-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB18TCA	SIMPLEX	02-05-13 02-05-13 2061B OUTER MAST[Pm] FB(EP)20TCA	25-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB20TCA	TRIPLEX	02-06-24 02-06-24 2161B OUTER MAST[Mm] FB(EP)20TCA	24-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB18TCA	TRIPLEX	02-06-24 02-06-24 2161B OUTER MAST[Mm] FB(EP)20TCA	24-1	2	RP: N \| 01 SN - \| 02 SN - \| 03 SN - \| 04 SN 288AD0348-*
FB18(H)CA1(J)	TRIPLEX	02-06-13 02-06-13 2161 OUTER MAST [Mm]	9	2
FB18TBCB	TRIPLEX	02-06-09 02-06-09 21610 OUTER MAST [Mm]	16	2
FB16TBCB	TRIPLEX MAST	Fig.21610 Fig.21610 OUTER MAST [Mm]	16
FB14CA1	TRIPLEX	02-06-10 02-06-10 2161 OUTER MAST[Mm]	17	2
FB20TBCB	SIMPLEX	02-05-07 02-05-07 20610A OUTER MAST [Pm] w.o/LASER POINTER	19	2
FB14CA	TRIPLEX	02-06-18 02-06-18 2161 OUTER MAST[Mm]	9-1	2	RP: N \| 01 SN 221E03773-* \| 02 SN 221E03773-* \| 03 SN 221E03773-* \| 04 SN 221E03773-*
FB10CA1	TRIPLEX	02-06-10 02-06-10 2161 OUTER MAST[Mm]	17	2
FB18TCA	SIMPLEX	02-05-12 02-05-12 2061A OUTER MAST[Pm] FB(EP)13-18TCA	25-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB10(H)CA1(J)	TRIPLEX	02-06-13 02-06-13 2161 OUTER MAST [Mm]	9	2
FB15TCB	TRIPLEX MAST	Fig.21610 Fig.21610 OUTER MAST [Mm]	16
FB13TCA	TRIPLEX	02-06-23 02-06-23 2161A OUTER MAST[Mm] FB(EP)13-18TCA	24-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB15CA	TRIPLEX	02-06-18 02-06-18 2161 OUTER MAST[Mm]	9-1	2	RP: N \| 01 SN 221E03773-* \| 02 SN 221E03773-* \| 03 SN 221E03773-* \| 04 SN 221E03773-*
FB15TCA	SIMPLEX	02-05-12 02-05-12 2061A OUTER MAST[Pm] FB(EP)13-18TCA	25-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB13TCA	SIMPLEX	02-05-12 02-05-12 2061A OUTER MAST[Pm] FB(EP)13-18TCA	25-1	2	RP: N \| 01 SN 215AF0637-* \| 02 SN 216AF1926-* \| 03 SN 216AF1926-* \| 04 SN -
FB15(H)CA1(J)	TRIPLEX	02-06-13 02-06-13 2161 OUTER MAST [Mm]	9	2
FB20TBCB	SIMPLEX	02-05-08 02-05-08 20610B OUTER MAST [Pm] w/LASER POINTER	19	2

Модель техники	FB15TCA, FB13TCA, FB18TCA, FB20TCA, FB15TCB, FB18CA, FB14CA, FB15CA, FB18(H)CA1(J), FB10CA, FB14(H)CA1(J), FB20TCB, FB20TBCB, FB10(H)CA1(J), FB18TBCB, FB18TCB, FB16TCB, FB16TBCB, FB15(H)CA1(J), FB13TCB, FB10CA1, FB18CA1, FB14CA1, FB15CA1
Номер по каталогу	52008-04030
Бренд	Mitsubishi
Система Mitsubishi	DUPLEX, SIMPLEX, TRIPLEX, TRIPLEX MAST
Узел Mitsubishi	02-05-12 02-05-12 2061A OUTER MAST[Pm] FB(EP)13-18TCA, 02-06-23 02-06-23 2161A OUTER MAST[Mm] FB(EP)13-18TCA, 02-07-19 02-07-19 2261A OUTER MAST[Fm] FB(EP)13-18TCA, 02-06-08 02-06-08 21610 OUTER MAST [Mm], 02-07-09 02-07-09 22610 OUTER MAST [Fm], Fig.21610 Fig.21610 OUTER MAST [Mm], 02-05-07 02-05-07 20610A OUTER MAST [Pm] w.o/LASER POINTER, 02-06-10 02-06-10 2161 OUTER MAST[Mm], 02-05-08 02-05-08 20610B OUTER MAST [Pm] w/LASER POINTER, 02-06-13 02-06-13 2161 OUTER MAST [Mm], 02-06-18 02-06-18 2161 OUTER MAST[Mm], 02-06-07 02-06-07 21610 OUTER MAST[Mm], 02-06-24 02-06-24 2161B OUTER MAST[Mm] FB(EP)20TCA, 02-07-20 02-07-20 2261B OUTER MAST[Fm] FB(EP)20TCA, 02-05-13 02-05-13 2061B OUTER MAST[Pm] FB(EP)20TCA, 02-06-09 02-06-09 21610 OUTER MAST [Mm]
Позиция на схеме Mitsubishi	19, 17, 9, 9-1, 16, 25-1, 26-1, 24-1
Название на русском	Shoe, Back
